Homag Optimat KL 73 A3 Edgebander (2002)

York, PA


Available By Private Negotiation!



Homag Optimat KL 73 A3 Edgebander (2002)

Single-sided machine for gluing and post processing of different edge materials on rolls, up to 3 mm edge thickness, at straight splinterfree workpiece edges in longitudinal and cross through feed. Fixed stop side on the left.
top pressure with motorized height adjustment
with compound V-belt
HOMATIC control with input unit NC 21
electronic frequency converters for the processing units
hot melt gluing unit A3 for material on rolls up to 3 mm
noise protection for the processing units
snipping unit chamfer/straight
free space for further processing units
panel support with roller guide
glue roller driven in case of feed stop
glue container lift-off in case of feed stop
glue container clamping actuated by workpiece
operating voltage 380/400 volt, 50/60 cyc.
programmable memory control (PLC) with LED
display of all inputs and outputs
feed infinitely variable 18 - 32 m/min.
working height 950 mm
working width
min. 55 mm for panel thickness 22 mm
min. 100 mm for panel thickness 60 mm (depending on panel length)
panel overhang 30 mm
panel thickness 12 - 60 mm
edge material on rolls 0,3 - 3 mm
edge cross section max. - with PVC 135 mm2
with veneer 100 mm2
roll diameter max. 830 mm
pneumatic connection 7-8 bar
floor conditions have to correspond to the foundation plan
Machine number : 0-200-15-2524

Click Here For PDF Overview
Click Here For PDF
Of Additional Specs.

Asking Price: $22,900



Available By Private Negotiation!

Call Ian Liebgott @ 717-849-5042
for more information


New in 2002!

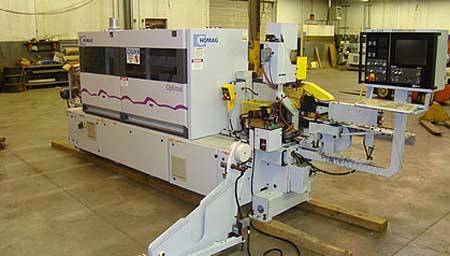

Homag Optimat KL 73 A3 Edgebander
