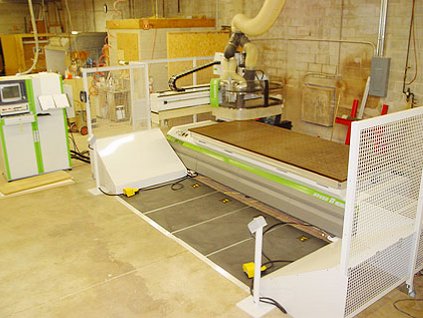

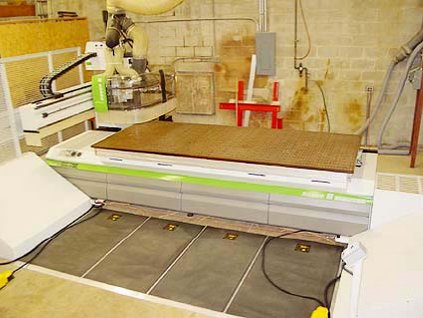

| Auctioneer's Note: This is a
Super Clean, Like New Machine that has been babied! You Will Not Find a Nicer Used Machine! |
New
in 2004'
Flat Table with linear guides for precision tracking for X,
Y, & Z-axes
Drive systems are Yaskawa AC brushless servomotors with
digital drive units.
Has automatic centralized lubrication
system.
Working Field
For Routing:
X 3,200 mm (125.98")
Y
1360 mm (53.62")
For drilling:Y 1,540 mm (60.62")
Note: Full table
coverage with spindles
Parts Z-axis clearance: Z = 150 mm (6")

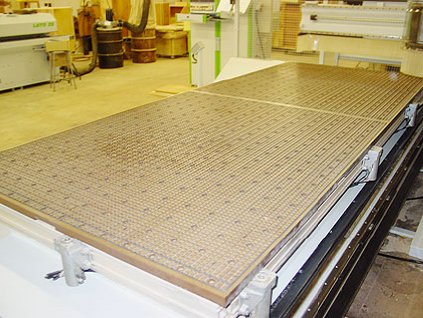

Flat
table size 49.6" x 125.98" (1260 mm x 3200 mm)
Has (4) pop-up reference
pins on table back side
Also (1) pop-up pin on each end of
table
Each pop-up pin has a sensor to detect if it was lowered
Has
20 Hp. vacuum pump

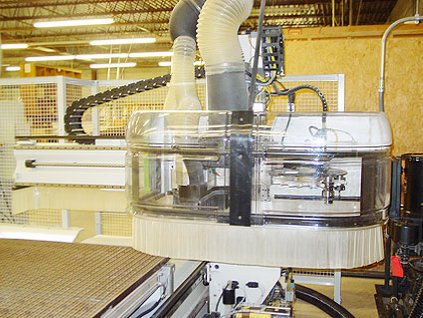

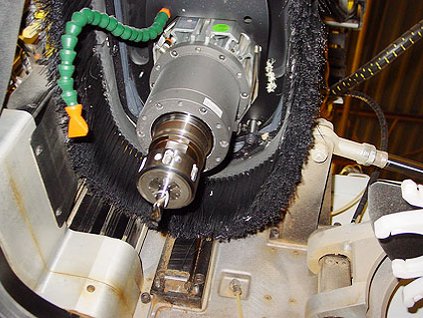

Has 7.5 kW (10.2 Hp) Electrospindle
The
electrospindle is prearranged for retrofit C-axis unit
Air Blast
nozzle keep tools cool
Has revolvong Tool Changer, 10 position
Has
HSK-F63 Tool-holder ERC 40 Leitz-Biesse
Has 12-13 Elastic Collet
ERC40
Boring head BH 19L
12 independant vertical spindles at 32
mmcenterdistance,
6 of which are placed along X and6along Y.
6
horizontal spindles, 4 are placed along X and 2 along Y.
Has 3 front
safety mats

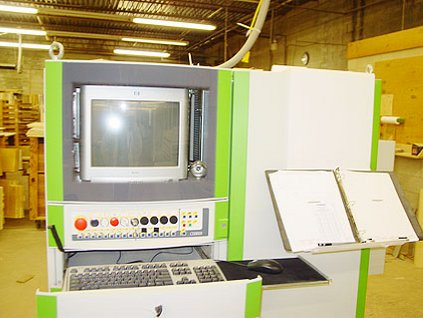

Has PC Front-end numerical Control CNI XP600
Technical
Data
Electrical Max installed electric power, machine only 22KVA
20
Hp Vacuum Pump 15 KVA
Compressed air
Pressure 7.5 bar (105
PSI)
Air consumption 400 NL/Min (14 CFM)
Dust collection
Chip
extraction socket diameter 250 mm
V220/3/60
Has a Logitech camera
for trouble shooting

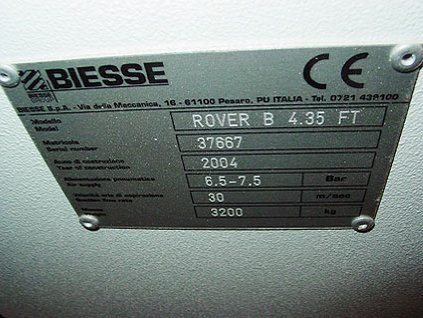

s/n 37667
**Note: Buyer will bear all costs
to remove and load this lot.
|
|
Lot
#1A KCDw Software
Auctioneers note: Approx. $8,000.00 new.
Will cost customer
$1750.00 for a new key & updated Version 9
Note: Buyer's
responsibility to contact manufacturer of software to determine what needs
to be purchased to use software.
Features Real Wood Grains &
Counter Top Colors, Photo Realistic 3D, Custom Cut Lists, Accurate &
Detailed, Custom Cost Reports,Proposals Contracts Estimates, Easy on
Screen Editing Of Designs, Cut Lists & Costs, Kitchens, Bath,
Entertainment Centers, Residential & Commercial Cabinetry, Closets
Virtually any storage system, Closet Pieces & Accessories, Elevations,
Floor Plans, Dimensioned Drawings, Frame, Frameless, Closets, Fast Fill a
room with Cabinets, Mirror image any room, Switch from Frame to Frameless
or, Switch from Frameless to Frame, Show Handle and Hinging, Work in
Inches and or Metric, Custom Cut Lists-done your way, Mortise & Tenon,
Dowel & Butt joints, Cut Lists by Parts, Material, or Cabinets,
Splice, 45 & dado Joints, Dove Tail, Cut lists for Cabinets, Door
& Drawer Parts, Create a Door only Report, Output Cut Lists on CNC
Routers, Point to Point Machines & Others, Custom Pricing Done Your
Way, Save Price sheets for easy reference, Over 200 Door & Molding
Styles, Plus a Molding Profiler, On-Line Version Updates Email directly
to KCDw, A Full Windows 32 Bit Program, Comprehensive help included,
Tutorials, Glossary, Definitions, Great Technical Support by phone, fax,
internet, Friendly and availble
Download PDF
Note: Buyer's
responsibility to contact manufacturer of software to determine what needs
to be purchased to use software.
ICAM- Integrated Control of
Automated Manufacturing. Its our intent with our software to offer
solutions that increase your productivity. Software functions in an
environment of related, interconnected components. This environment
includes the hardware on which the software resides, The operating system
and the network, If any, with which it interfaces, & the peripherals
that if affects. Our ability to provide effective product support improves
the more we know about your components & the kind of work you are
doing. To this end, the more we know about you, your equipment & the
other software you use, The better job we can do providing you support.
The Real Solution. Saw Labels. Nestlabels Labeling Solutions for Every
Situation, Positive identification & tracking of all parts, Total
customization of label size & content, Part pictures with all
machining & edgbanding, Print custom label designs with graphics
automatically, All manufacturing data available for label
placementzReal-Time labeling with most printer capable saws, Laser
projection for label placement on nested patterns.
The Real
Solution. Nestmaster, Advanced Data Management for Nested Manufacturing,
Complete Solution for nesting, single parts processing & labeling,
Automatic assignment of all tools & tool paths in one step
Intellitab-Automatic small part management, Creates single part programs
for re-working parts or sixth face machining, Inventory for multiple sheet
size optimization & material specific tooling control, On-the-fly part
editing & automatic part rotation with grain control, Integrated
labeling & laser pattern projection for label placement, Powerful
nested pattern editing with interactive TabControl, Import All
manufacturing data from major cabinet design packages, dwg, dxf, XML,
spreadsheet & database files
