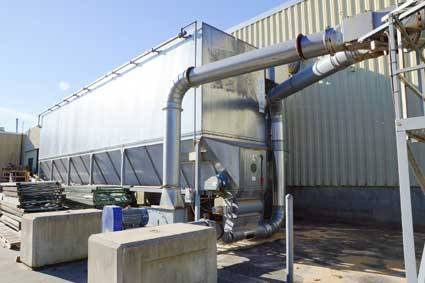

Disa NFK2009+2HJLR Dust Collector (2003)

Media type XT3

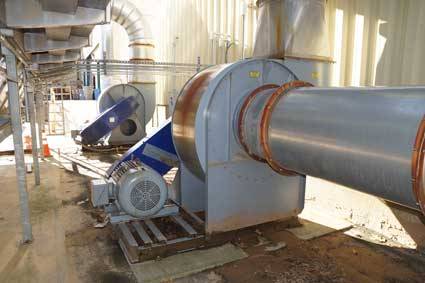

(2) Disa S056-710-G3CC blower fans
100 HP
230/460 V 3 PH
28" fan inlet size with 28"
to 30" inlet pipe reducer

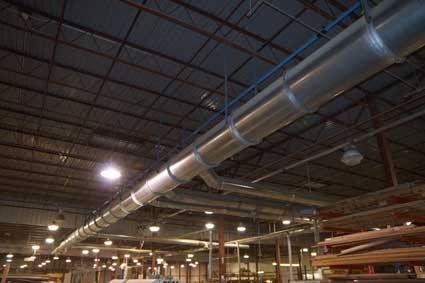

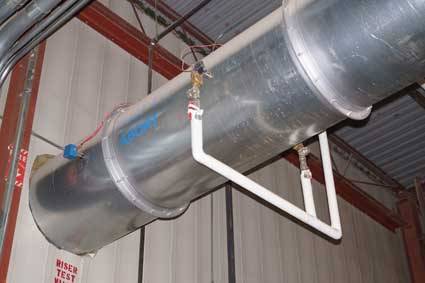

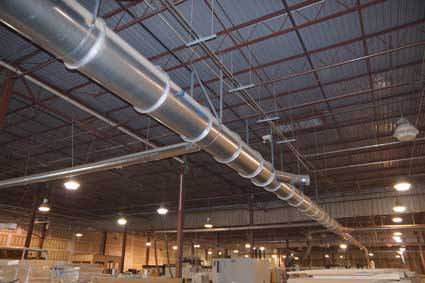

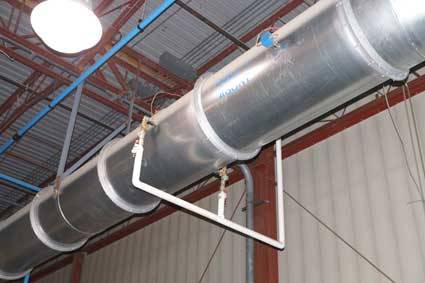

30" blower inlet
pipe from building
modular type bag
house dust collector
pneumatic pulse
filter bag cleaning

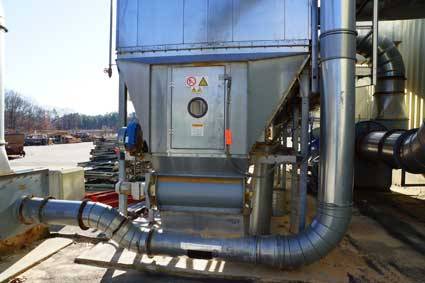

 bottom hopper with
interior unloading conveyor
end mounted
rotary air lock with 1.5 HP drive

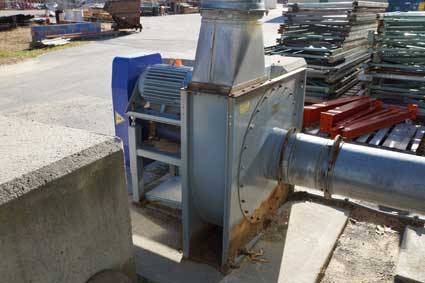

Disa T040-315-G3-CCW transfer
fan 20 HP, 12" blower inlet size
40,000 CFM collection rating

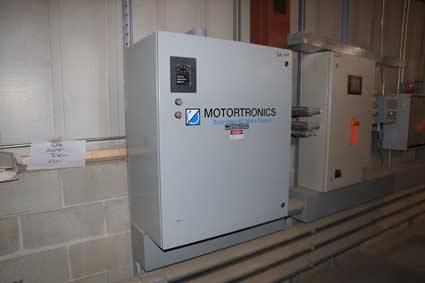

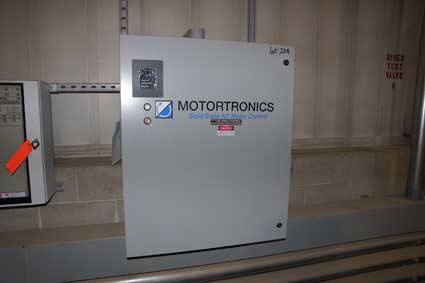

(2) Motortronics VFD frequency
drives for blower fan motor control

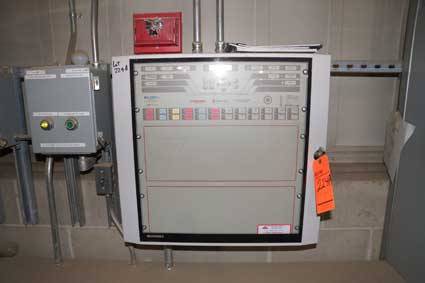

(1) dust collector control cabinet with PLC
touch screen controls
 S/N 311718
