Dimter Opticut 200 Elite Optimizing Saw Line (New in 2005)
Marking with two marking tables capable of handling lumber up to 16’ in length
Measuring station with double measuring wheel length measuring system with a top luminescent camera for defecting quality grade and defect marks
10” wide infeed belt between the measuring station and the saw to handle up to 16’ long boards
Capacity of board length 16” min and 20’ max.
Board thickness ½” min. and 3” max.
Board width 1” min. and 8” max.
Board outfeed length 5” min. and 20’ max.
10HP saw arbor motor and electrical controls wired for AC 3/60/480 volt operation
Electro-mechanical brake system on the blade
Blade diameter 500 mm with 3 mm bore
Two computer controlled air jets for ejection of waste pieces and end trims
Grecon Dimter SMART CONTROL OPERATING SYSTEM and OptiCut software
Outfeed and sorting station driven by a 2HP motor and consists of a 10” wide belt, 33 feet long with four (4) mechanical kickers activated by sensor pulses to ensure accuracy and efficiency
Serial Number: 2499.10

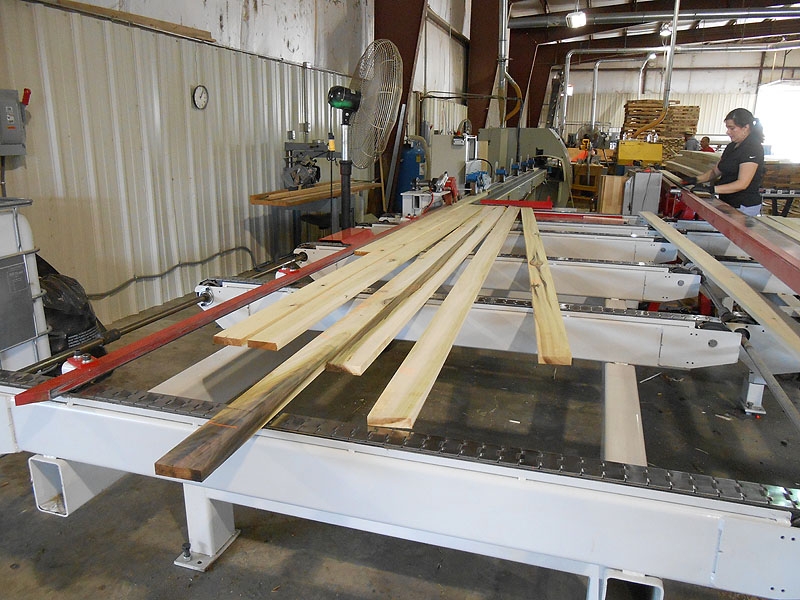

Woodstorm Crosscut Saw Infeed System v.4 (New 2013)
Consisting of three (3) marking stations with a cross belt feeding system into a 24’ long infeed belt conveyor feeding lumber to the saw with electrical controls wired for AC 3/60/480 volt operation.

(Note: when the Woodstorm Lateral Feed System is in place the two marking stations with the Opticut Saw are replaced by this system)
