HOMAG

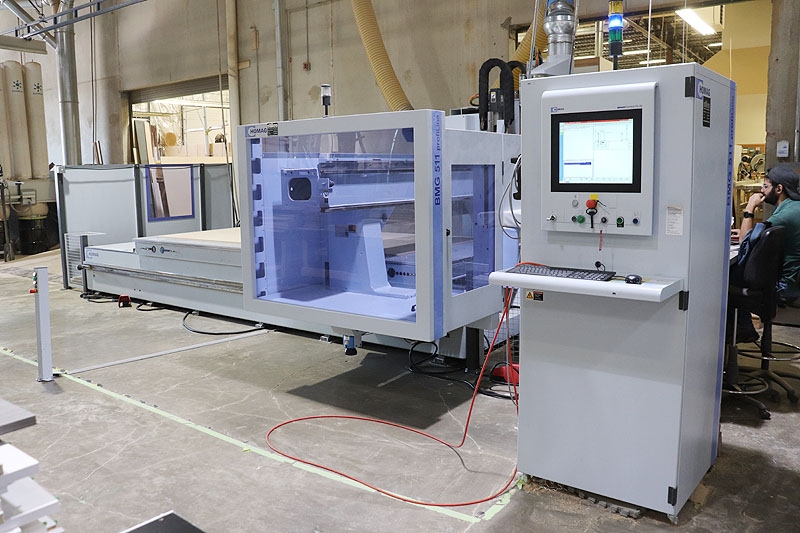

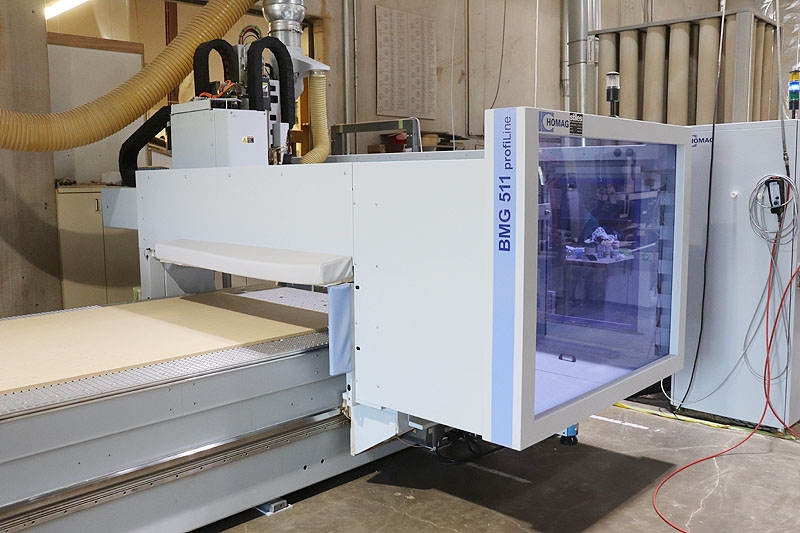

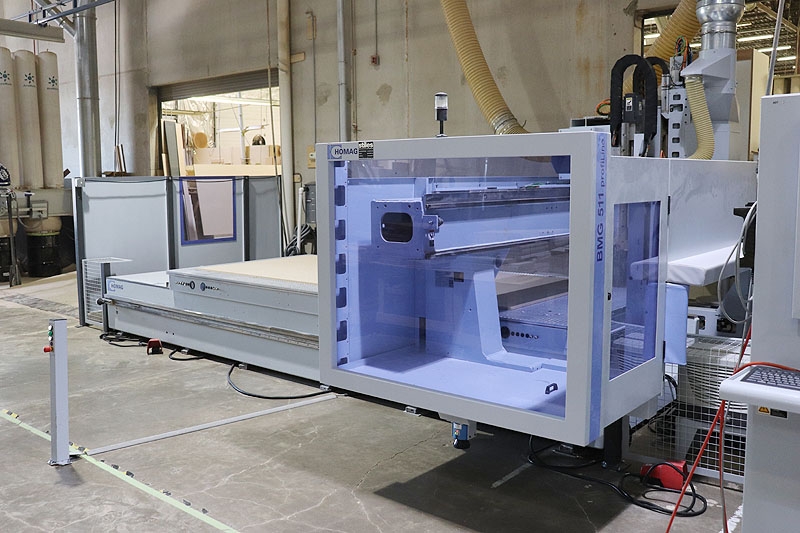

Profi BMG511/40/15/F/R (5-Axis) CNC Machining Center w/ Decker Vacuum Pump
- Machine Technical Specifications
- (5) Controlled Axes: X, Y, Z1, Z2, C
- Axis strokes
- X-axis: 4940mm (194 – 15/32")
- Y-axis: 2700mm (106 – 9/32")
- Z-axis: 600mm (23 – 19/32")
- C- Axis: 360 degrees
- Table Size: 4175mm x 1900mm (164 – 11/32" x 74 –
25/32")
- Shank size: 25mm (1")
- Tooling Length (from spindle nose): 200mm (7-7/8")
- Tool holder for HSK-63 tooling
- (14) position ride along tool changer
- Router spindle Power: approx 12 kW
- Variable Router Spindle Speed: 1,000-24,000 RPM
- Year: 2013
- Serial Number: 0-201-09-8116
- For more information, please click on the pdf in the
bidder's applet for additional manufacturers specifications
Weeke

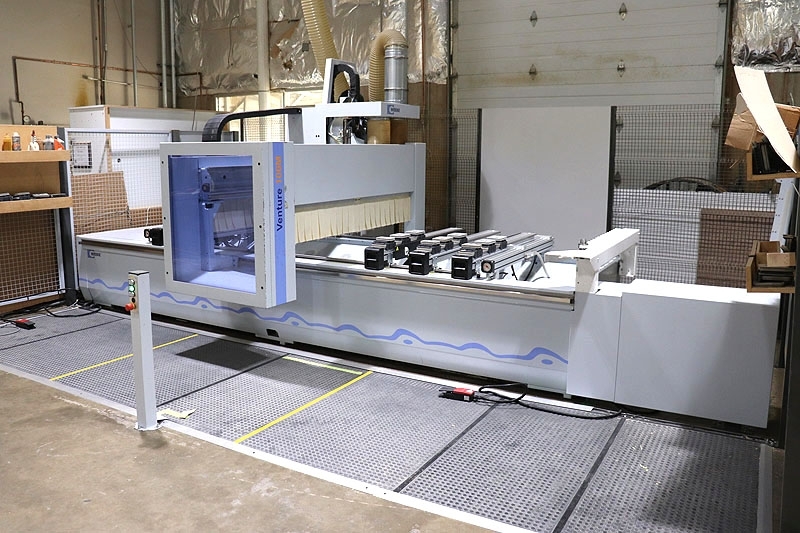

BMG111/Venture106M Pod and Rail CNC (2015) w/ Vacuum Pump
- Working field:
- X = 3130mm (length)
- Y = 1250mm (width)
- Z = 100mm (Thickness – with standard vacuum pods)
- Z = 150mm (Loading height without vacuum pods)
- (12)-spindle vertical drilling block in L Shape
- Horizontal Boring Spindles (4X/2Y)
- (8) Place Automatic Tool Change Rack
- Main Router Spindle Power: 7.5/9.0 kW
- (1) 2.4kW Vacuum Pump
- Year: 2015
- S/n: 0-250-17-2854
- For more information, please click on the pdf in the
bidder's applet for additional manufacturers specifications
Accu-Systems

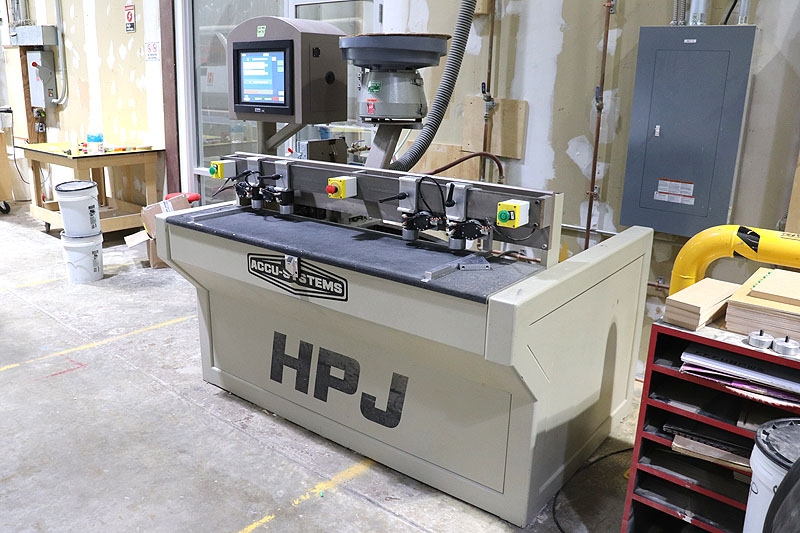

HPJ-7 Bore, Glue and Dowel Inserter
- 220v, 3PH
- 66" x 16" table
- 48" width capacity
- (4) pneumatic hold downs
- (2) zones
- Parker CTC touch screen controller
- Automation Devices Model 10FA dowel hopper feeder (s/n
1023305)
- Glue tank
- 3HP boring head motor
- s/n 031-08-HPJ-07
