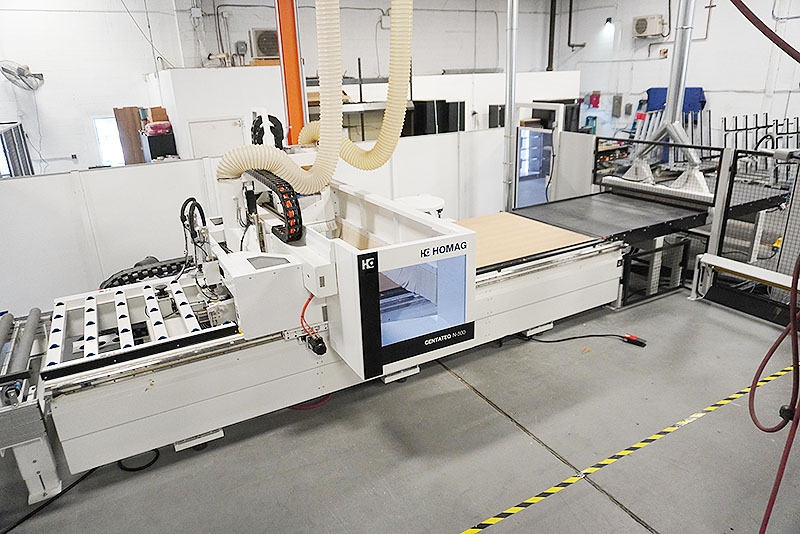

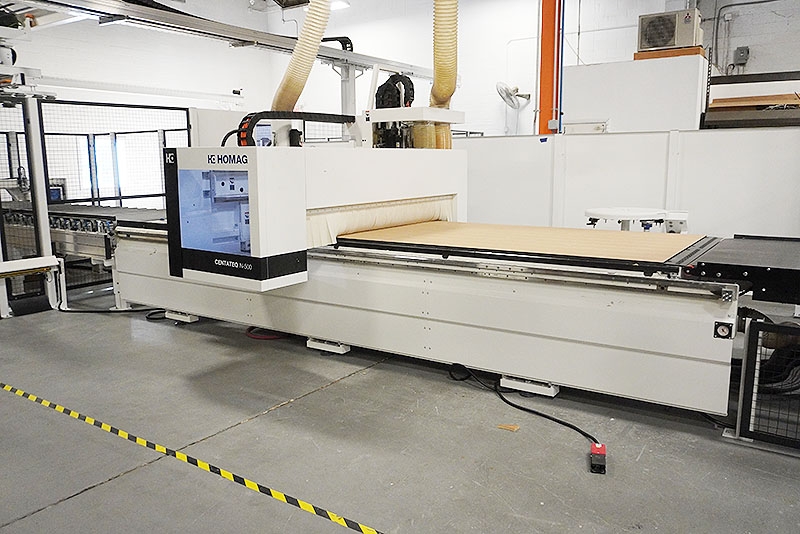

Homag Centateq N-500/512 V21 Con3R CNC Machining Centers - New in 2023! - (2) Available!

• PowerTouch Controller, WoodWop 7 Programming System, Full HD Wide Screen Multi-Touch Display, Handheld Pendant Controller, Homag Automation StoreTeq Connection
• Matrix Table 5' X 12'
• Working Length 3700 mm (145") X Working Width 1550 mm (61")
• "Z" Axis 348mm (13.7"), "Z" Axis Drill Block 215 mm (8.5")
• Automatic Loading Device & Push Off of Nests
• (2) Vacuum Pumps Total Capacity 690 m3/h
• Vertical Router Spindle Rated at 10 KW (13.4 HP)
• Benz HSK63 Spindle Motor, 1,500 – 24,000 rpm
• Aggregate Interface Interpolating C-Axis & Extension Aggregate Interface C-Axis for Flex 5 Unit
• Multi-Zone Processing
• (14) Position Automatic Tool Changer: HSK63 Tooling, (1) Automatic Tool Loading Position
• (21) Spindle Vertical Drill Block: (9) Spindles in the X & (12) Spindles in the Y
• Pneumatic Side Reference Fences & Locating Pins
• Operating Voltage 480V, 3 Phase, 60 Hz, Control Voltage 24 V
• Total Connected Load 31 KW
• Approximate Weight 8,700 Lbs.

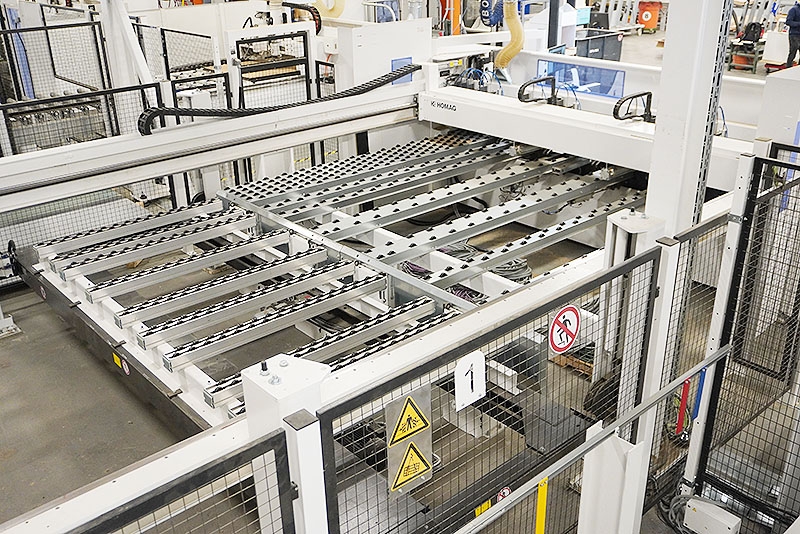

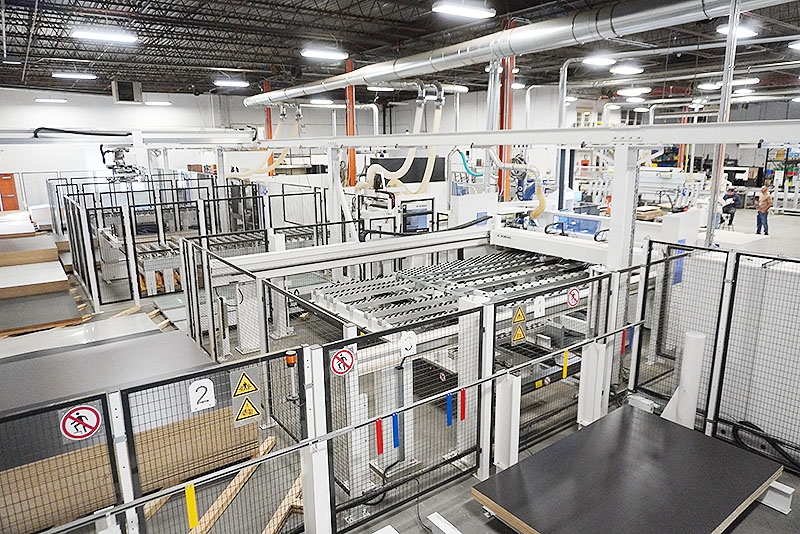

Homag StoreTeq S-200-20-10 (Intellistore) Panel Management System - New in 2023!

• Homag PowerTouch Controller w/ WoodStore Mobile Command WoodStore 8
• WoodStore Analyzer Expert
• Offcut Management, Thin Board Handling
• Uninterruptible Power Supply (UPS) & Back Up Portable Drive USB 2.0
• High Speed Servo Drives X, Y & Z Axis
• X-Axis (Carriage Movement) 110 M/Min (360 Ft/Min)
• Y-Axis (Carriage Movement) 130 M/Min (426 Ft/Min)
• Z-Axis (Carriage Movement) 60 M/Min (197 Ft/Min)
• (1) Safety Door & Fence
• ST61 Vacuum Head
• One Infeed Storage Location
• Infeed Scanner - Offcut / Outfeed Scanner
• Integrated for: (4) Homag CentaTeq Routers Possible, Currently Set Up for (2) Routers & (1) Homag B-400 HPL Panel Saw
• Workpiece Specification:
• Length: Min 1,830 mm (72") Max 3,660 mm (144")
• Width: Min 800 mm (31 1/2") Max 2,200 mm (86 1/2")
• Thickness (particleboard): Min 6 mm (1/4") Max 100mm (4")
• Thickness (MDF): Min 3 mm (1/8") Max 100 mm (4")
• Weight: Min 8 kg (17 1/2 lbs.) Max 150 kg (331 lbs.)
• Stack Height: Min 50 mm (2") Max 2,100 mm (82 5/8")
• Gap Between Stacks: Min 100 mm (4")
• Storage Area Specifications:
• Length: 20,000 mm (65 3/4')
• Width: 10,000 mm (32 3/4')
• Working Voltage 480 Bolts, 3 Phase, 60 Hz, 12 KW, 35 Amps

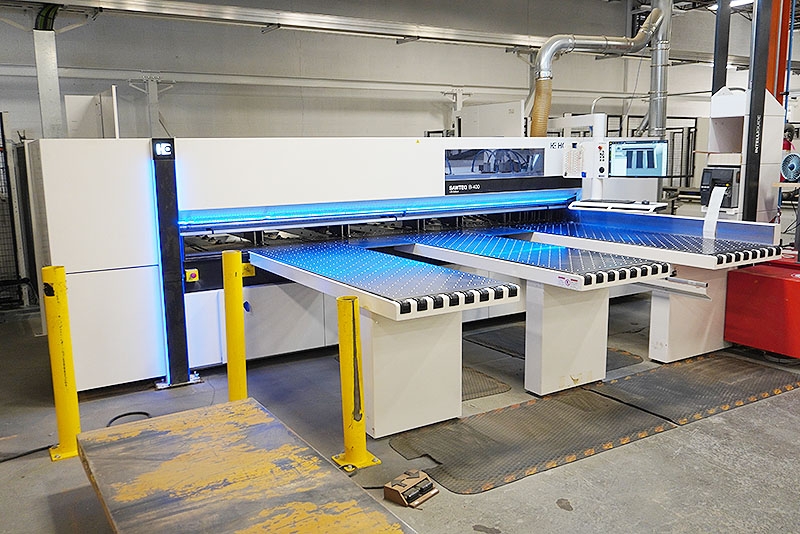

• Powercontrol V2.1 Controller w/Homag PowerTouch, Cadmatic 5 Control
• Main & Scoring Motors: 28KW (37.8HP) & 2.2KW (3HP
• Saw Carriage Speed 0-150M/Min
• Program Fence Speed Forward 25 M/Min (82 fpm)
• Program Fence Speed Reverse 90 M/Min (295 fpm)
• Automatic Side Pressure Device – True Alignment
• Panel Size Maximum 3,700mm X 1,600mm (145.67" X 62.99")
• Panel Size Minimum 1,200mm X 400mm (47.24" X 15.75")
• Cutting Length 3,800mm (149.61")
• Working Height 920mm (36.22")
• Projection of Sawblade 125mm (4.9")
• (3) Air Floatation Tables 2,160mm X 800mm (85" X 31.5")
• (7)Clamps/Grippers
• Main Blade 450mm (17.71")
• Scoring Blade180mm (7.08")
