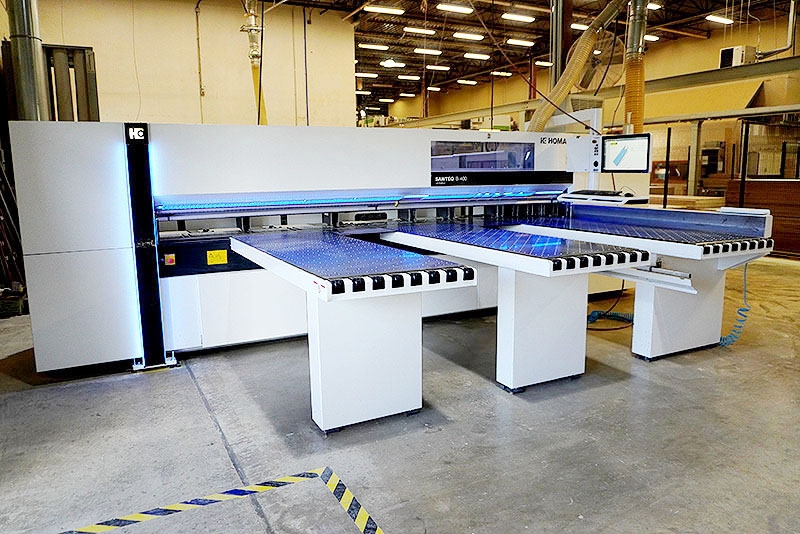

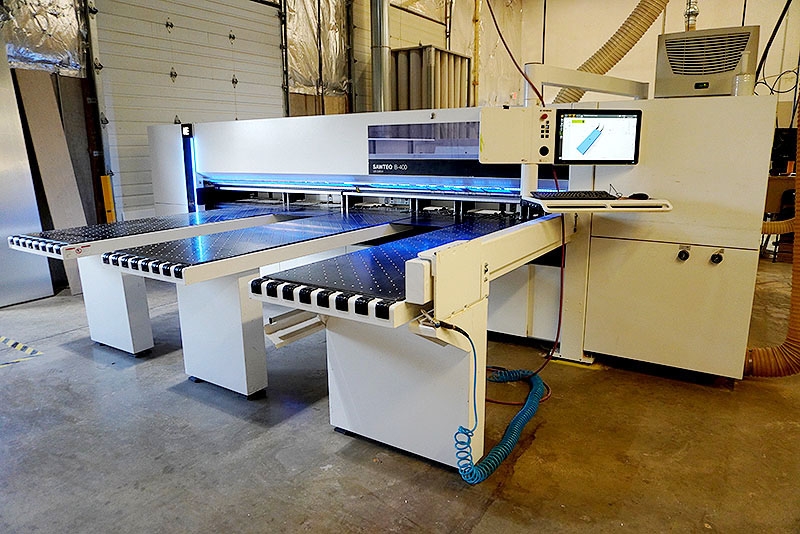

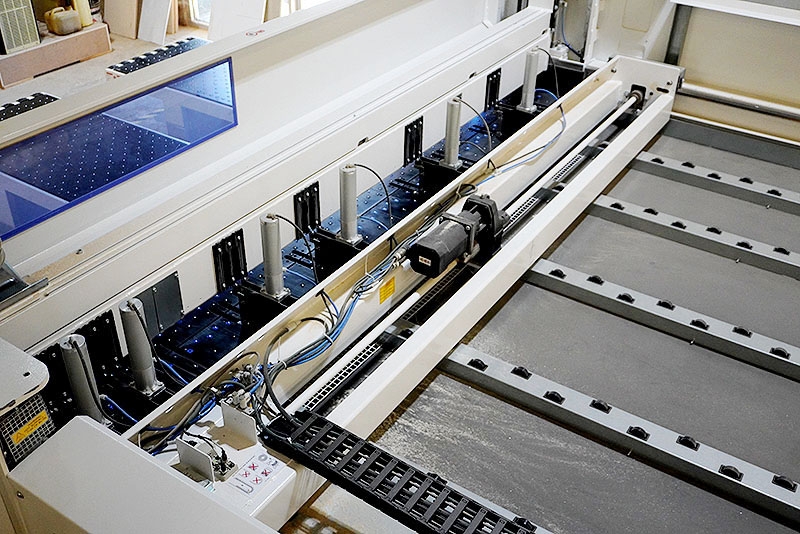

HOMAG SAWTEQ B-400 US Edition Panel Saw (2019)

- New in 2019 for $188,530.00!

- Model: SAWTEQ B-400 US Edition (Profi HPP400/38/38)

- 480 volt, 3 phase 60 hz

- Year: 2019

- Technical specifications:

- Main Saw Motor: 28kW (37.8 HP)

- Main Saw Blade: 450mm x 4.4mm x 60 mm

- Main Saw Blade Diameter: 450mm (17.71")

- Scoring Saw Motor: 2.2kW (3HP)

- Scoring Saw Blade: 180mm x 4.45-5.25mm x 45mm

- Scoring blade Diameter: 180mm (7.08")

- Projection of main saw blade: max. 125mm (4.9")

- Saw carriage speed forward: 0-150m/min (0-492 fpm)

- Saw carriage speed reverse: constant 150m/min (492 fpm)

- Program fence speed: forward 25m/min (82 fpm)

- Program fence speed reverse: 90m/min (295 fpm)

- Max Panel size: 3800 x 3700mm (149.61" x 145.67")

- Min Panel Size: 50mm x 50mm (1.97" x 1.97")

- Cutting Length: 3800mm (149.61")

- Working Height: 920mm (36.22")

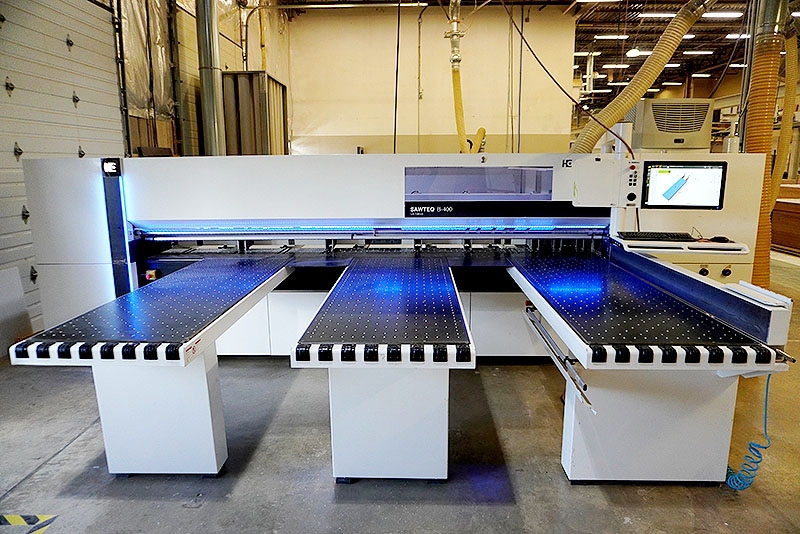

- (3) Air Flotation Tables: 85" x 31.5" each

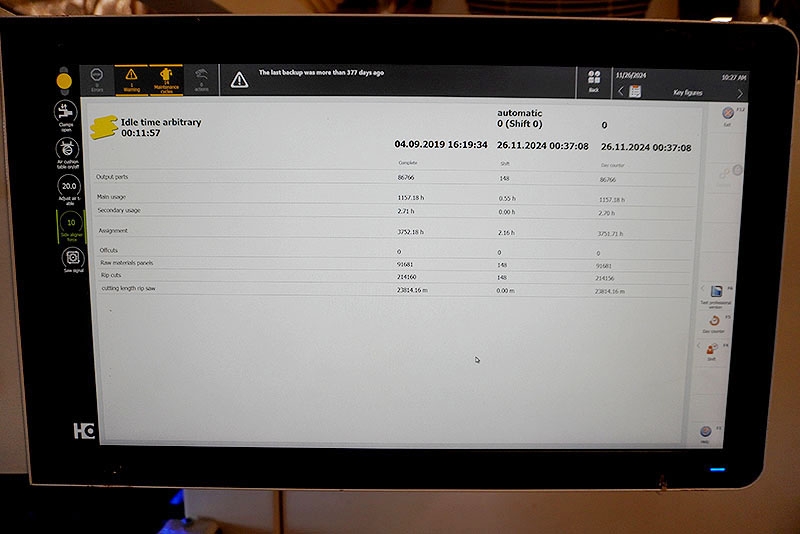

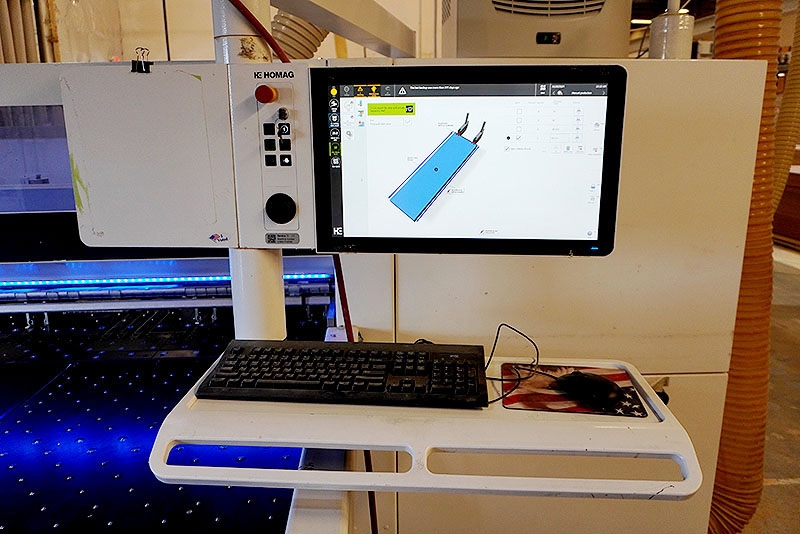

- Swing Arm 21.5" HD multitouch operator controller
