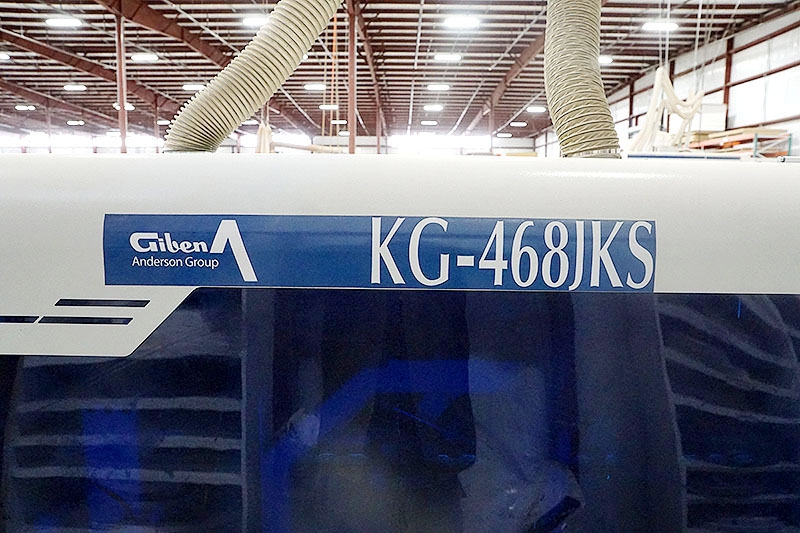

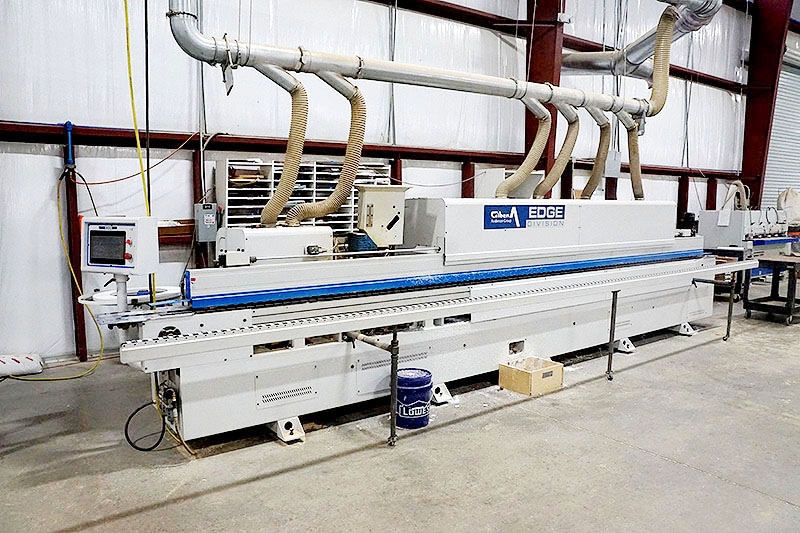

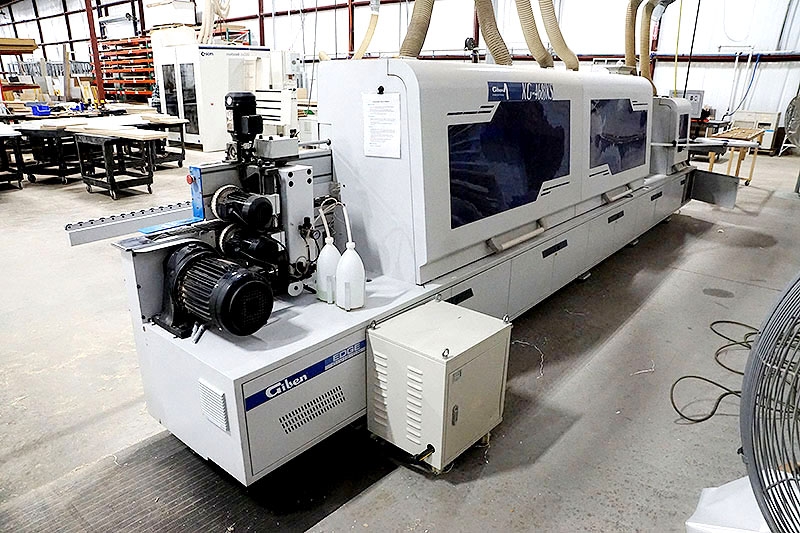

Model KG-468-JKS
Year 2017
18.42 Kw, 230/460 volt three phase, 60 hz
Infeed multi-tap power transformer
Standard configuration Motorized regulation of the beam.
Speed 10-15-20 m/min. Chain drag with manual lubrication
of the sliding guides.
Support bar at 700 mm. extractable.
Maximum panel height 60 mm.
Maximum edge thickness 3 mm.
Minimum panel length 120 mm.
Minimum panel width 80 mm.
Square Fence Guide, length 400 mm.
In tempered iron steel. Feeding gate for correct panel
gap.

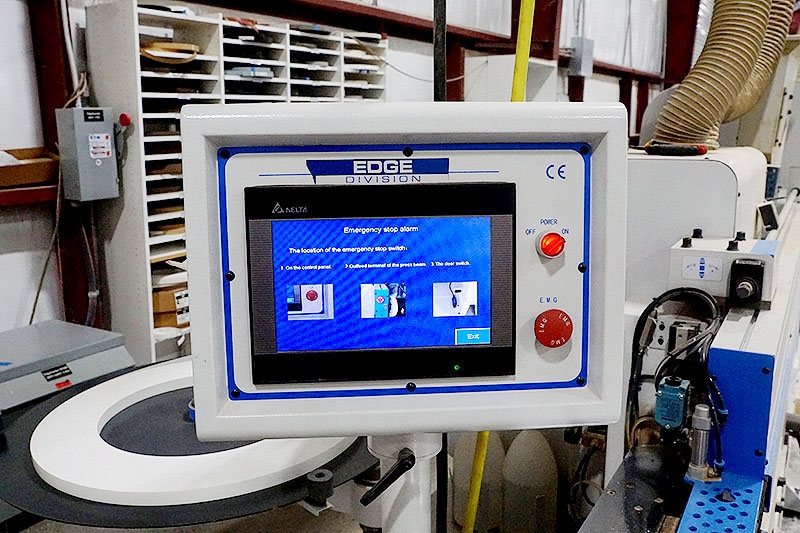

PLC Touch Screen for the adjustment of groups Control of
each unit on/off and speed as well as glue temp & diagnostics.
2 positions set up from control unit for quick change
over (ex. 3 mm pvc to 0.4 mm pvc).
Equipped with:

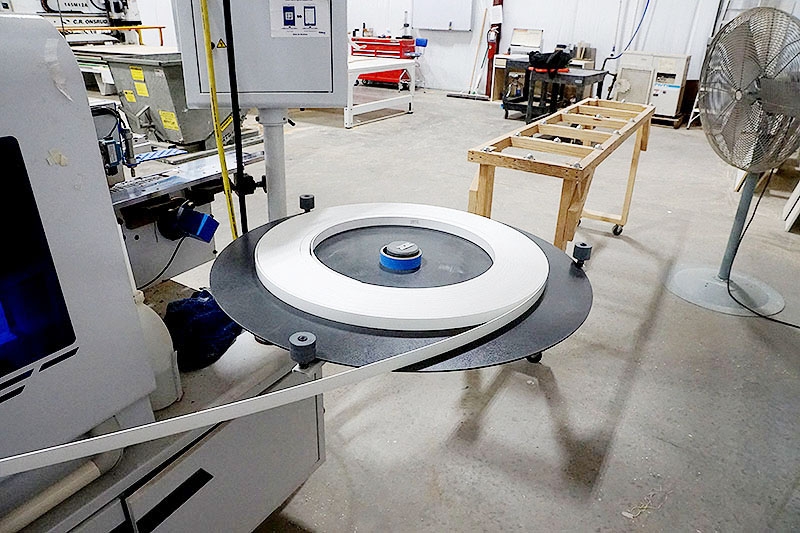

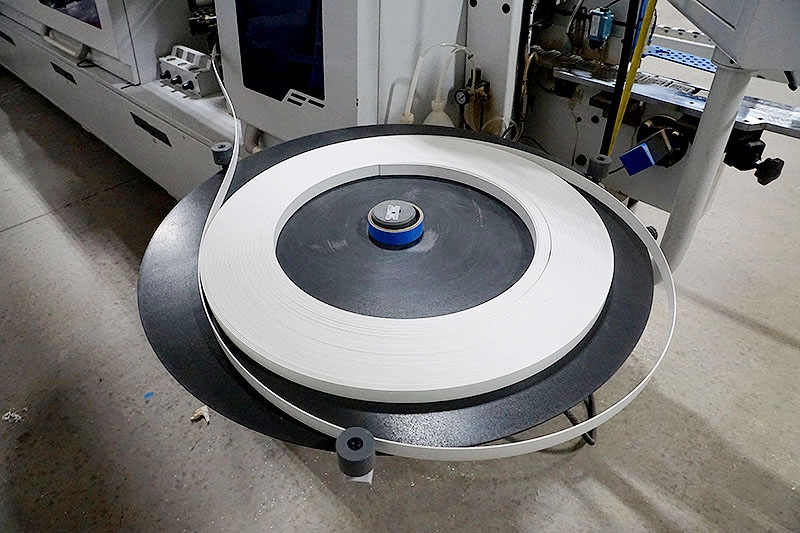

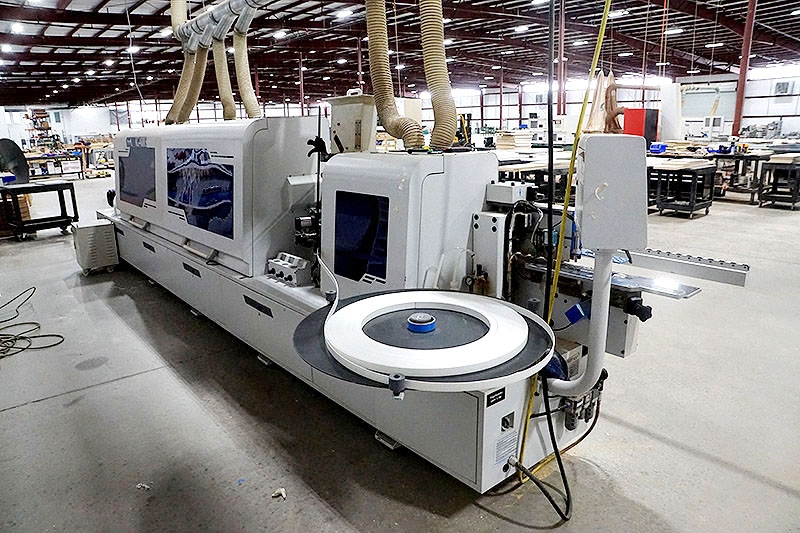

Coil Feeding Table
Station 1: (2) Pre-Mill Heads

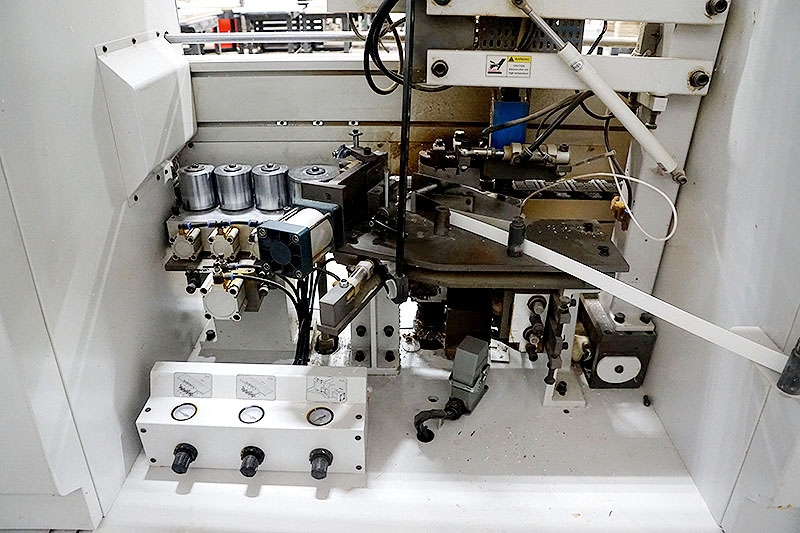

Station 2: Glue up Press Section
Station 3: Front/Rear End Trim

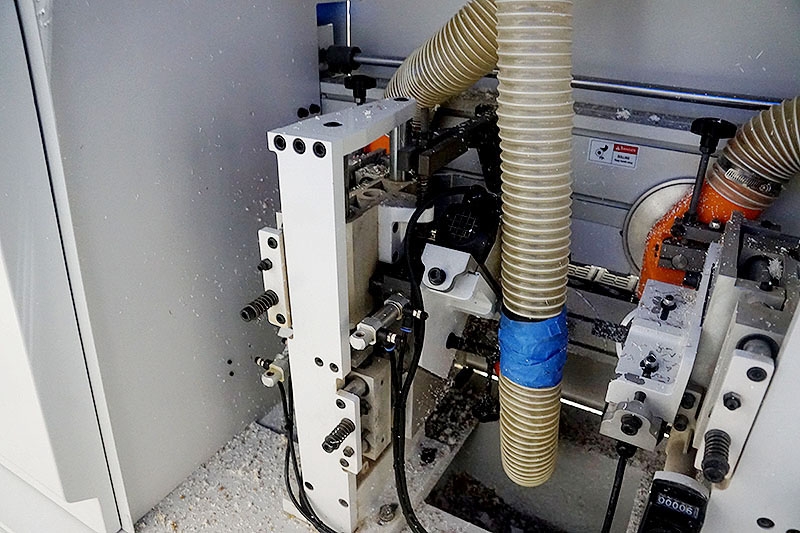

Station 4: Top & Bottom Rough Trim
Station 5: Top & Bottom Fine Trim
Station 6: (2) Motor Corner Rounding
Station 7: Top & Bottom Scraping
Station 8: Top & Bottom Flat Scraping
Station 9: Top & Bottom Buffing Head
Pre-Milling Diamond cutter 35 mm. height
150 mm external diameter. 30 mm internal with time
entrance. 1. counter-clockwise / 2. clockwise. 2 motors (2.2 kW) 12,000 min-1
200 Hz.
Glue pot 2 liter capacity, roller height 65 mm.
2 resistors: one on roller 250 W and the second in a glue
tank 1,500 W.
Temperature sensor roller with quick change glue pot (top
pot capacity 5KG, lower pot capacity 2KG)

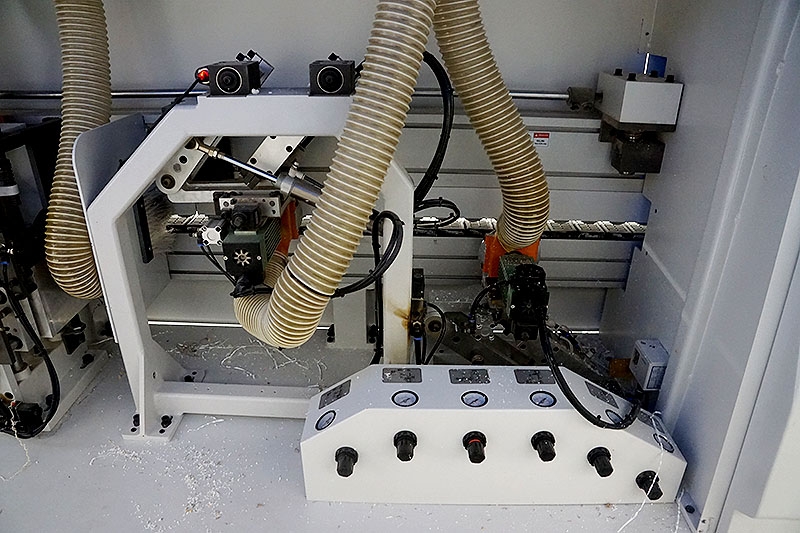

Cutting Head 2 motors (0.35 kW) 12,000 min-1 200 Hz. Two
position pneumatic adjustment (straight and angle).

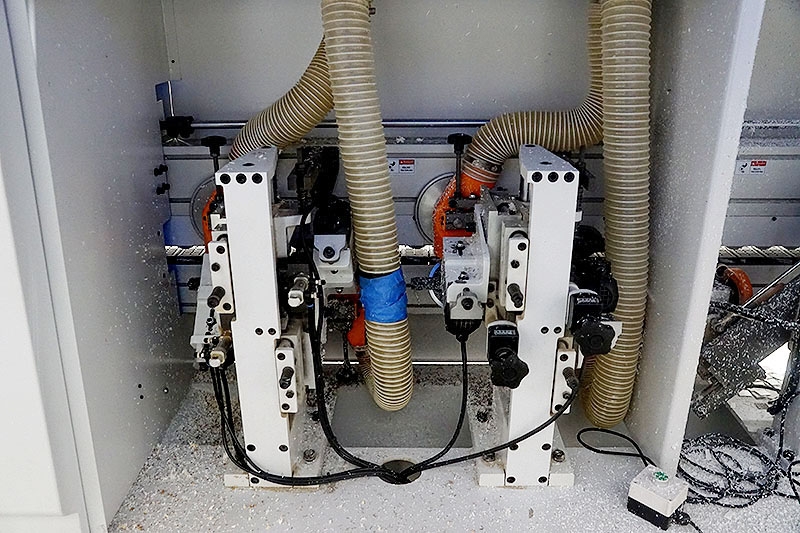

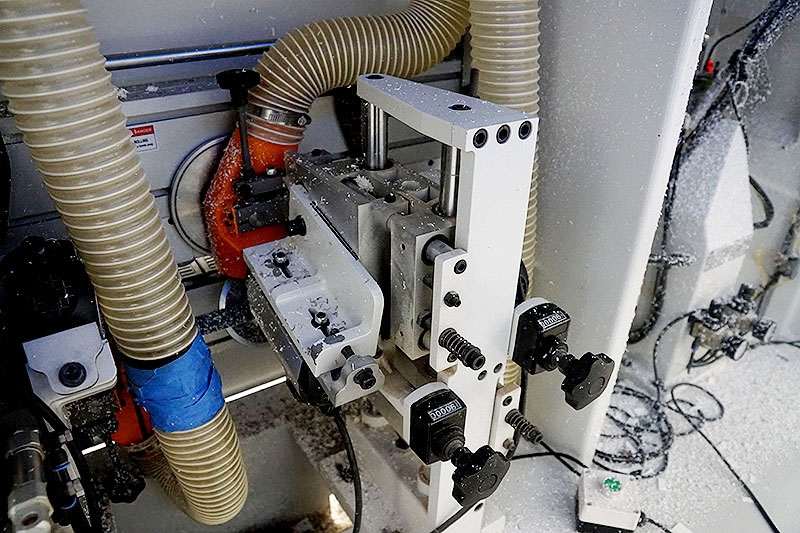

Top & Bottom Fine Trimming Group 2 motors (0.7 kW)
18,000 min -1 300Hz each motor is equipped with manual groups adjustment.

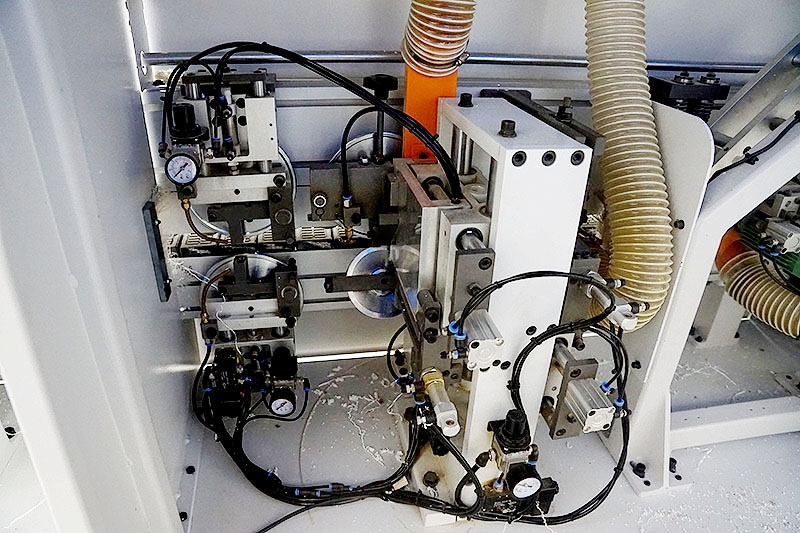

Corner rounding / trimming Device Upper and lower
trimming of edge applied onto straight panels with upper and lower rounding of
edge applied onto post-formed panels.
Maximum panel height 60 mm.

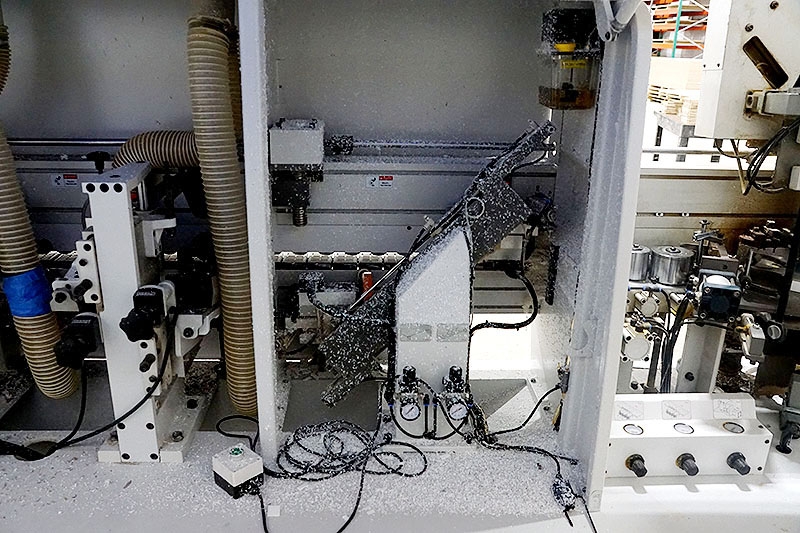

2 motors (0.7 kW) 18,000 min. - 1 300 Hz Profile
Scraper/Buff Removal of material to clean the profile shape from possible
imperfections from the trimmer tooling.
