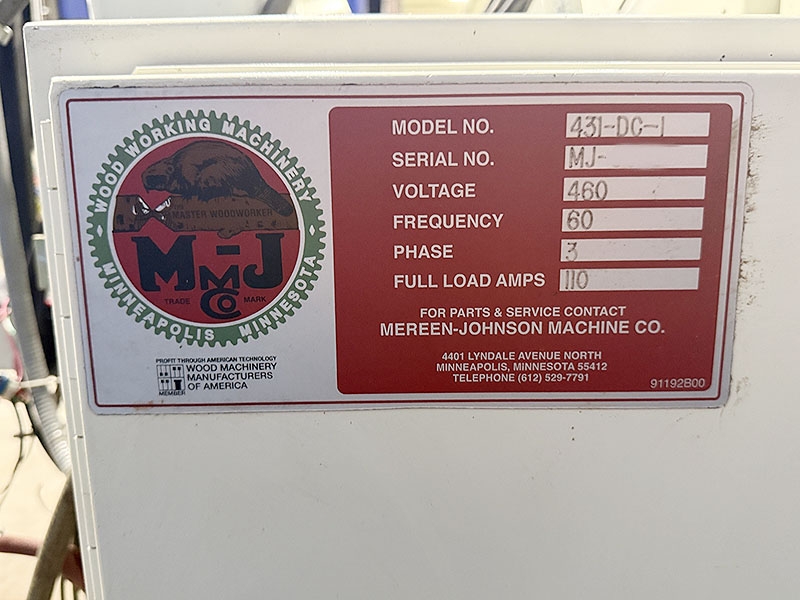

460 volt three phase, 60 hz, 110 amps
14860 hours on the machine meter
Max working width 31"
Max working thickness 3-1/2"
Min working thickness 1/4"
Max saw blade diameter 14"
Feed speed range 30 to 150 ft/min
Infeed load space 16"

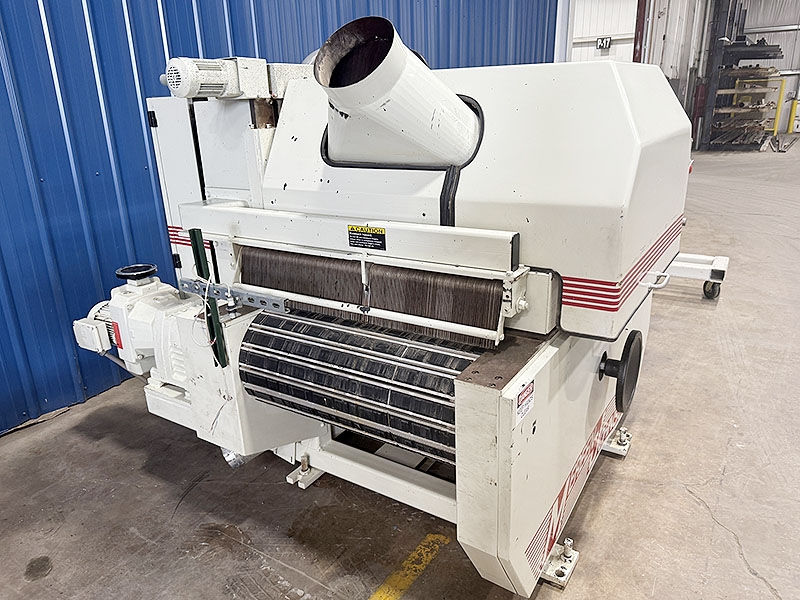

(2) Top and (1) bottom anti-kickback safety curtains
33" wide dip feed chain with oil-mist lubrication system
Posi-Feed Double Vee chain with aluminum slats and rubber inserts
Top infeed/outfeed hydraulic pressure rollers
Removable arbor sleave with assorted carbide tipped saw blades
Safety interlock door for arbor access
75 Hp, 460 volt three phase saw arbor drive motor
5 Hp, 230/460 volt three phase feedworks drive motor
Variable feed speeds with quick change gear box
Powered adjustment of head thickness
Freestanding hydraulic pump unit with 3 Hp, 230/460 volt motor
Push button master motor controls
(1) Floor mounted swing arm arbor changing head
(1) Steel frame tilting arbor changing cart
(1) Spare saw arbor sleave with carbide tipped blades
Includes the machine operator manuals
S/N MJ-6678
