panels from above
Suitable for drilling on face and sides of panels, including holes for dowels,
hinges, KD Fittings and shelf holes

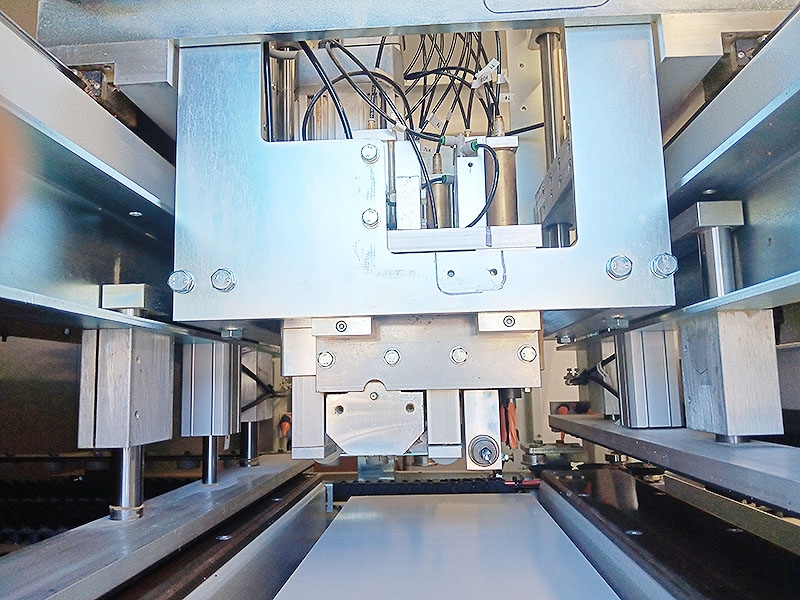

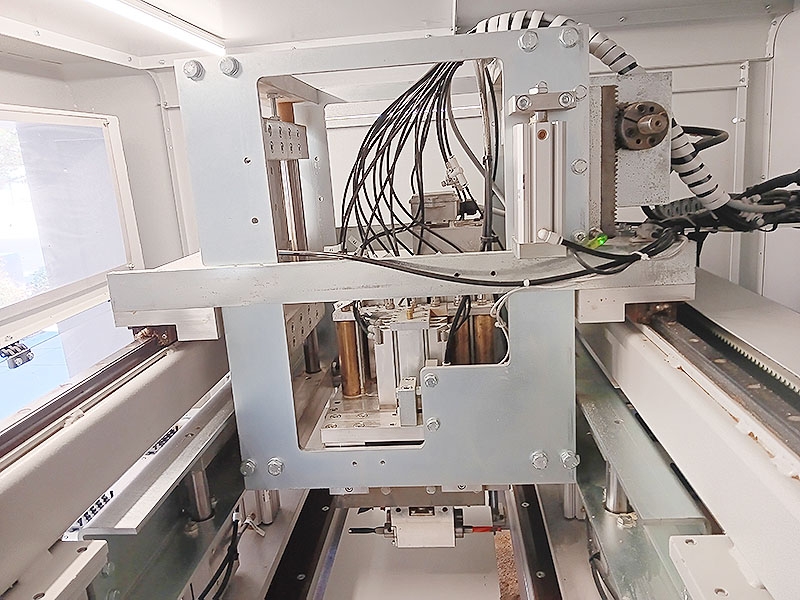

Vertical spindles

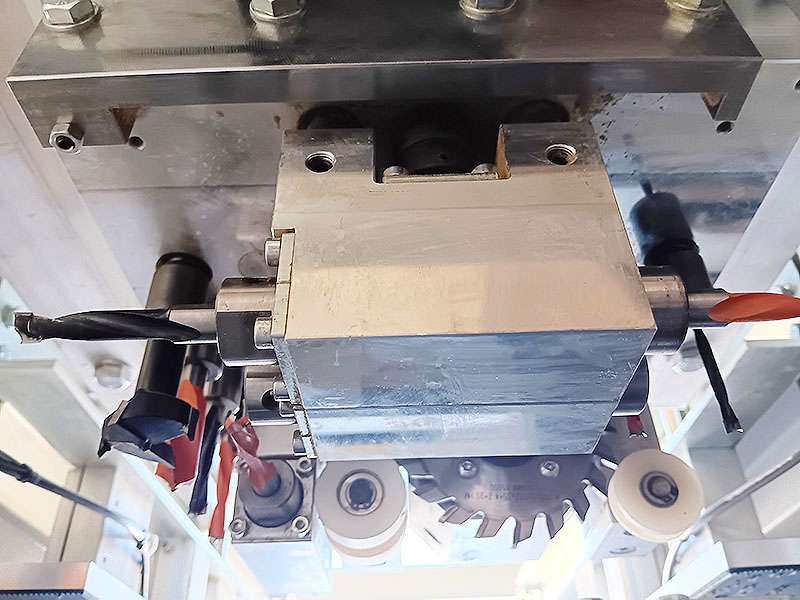

Saw Blade Unit in X axis
(2) 1 + 1 Horizontal Spindles in X axis
(1) 1 + 1 Horizontal Spindle in Y axis
Spindles rotations speed: 3,400 RPM
Axis speed 25 meters/min | 82 feet/min
Panel End Edge Reader for perfect panel assembly

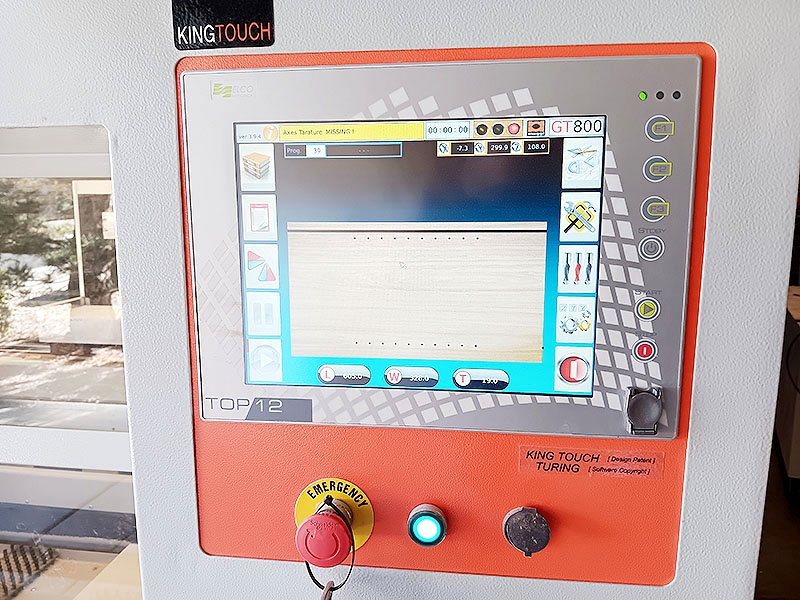

CNC programming with 12" touchscreen
Automatic panel cleaning with brushes
Total Power: 2.2 kW
Air Pressure: 6 Bar
Air Consumption: 5 CFM @ 6 Bar
Dust Collection: 1,200 CFM (6" Outlet)
Dimensions: 68" W x 72" D x 68" T
Weight: 2,205 lbs.
230 V, 3-Phase
