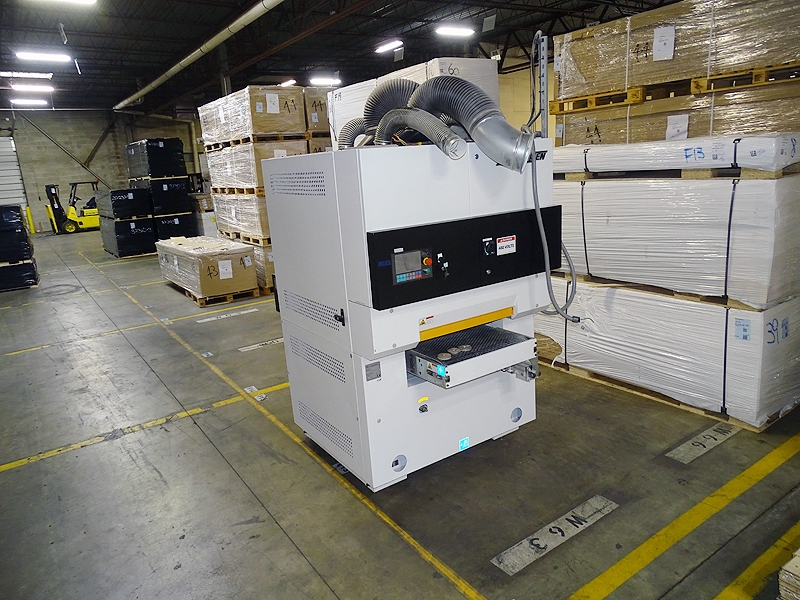

Operating voltage: 18.5kW, 480V, 3 phase
2-Head
Capacity 26" wide x 5-3/4" in height
First Head: Grooved Soft Rubber Contact
Sanding motor: 10 HP, 480V, 3 phase
Second Head: Grooved Soft Rubber Contact
10 HP, 480V, 3 phase
Pneumatic tracking and tensioning
Panel brush on outfeed side
1/2 HP, 480V, 3 phase
Conveyor feed motor: 3 HP, 480V, 3 phase
Front mounted control
Membrane switch pad for all functions
LED read-out
S/N 20226149

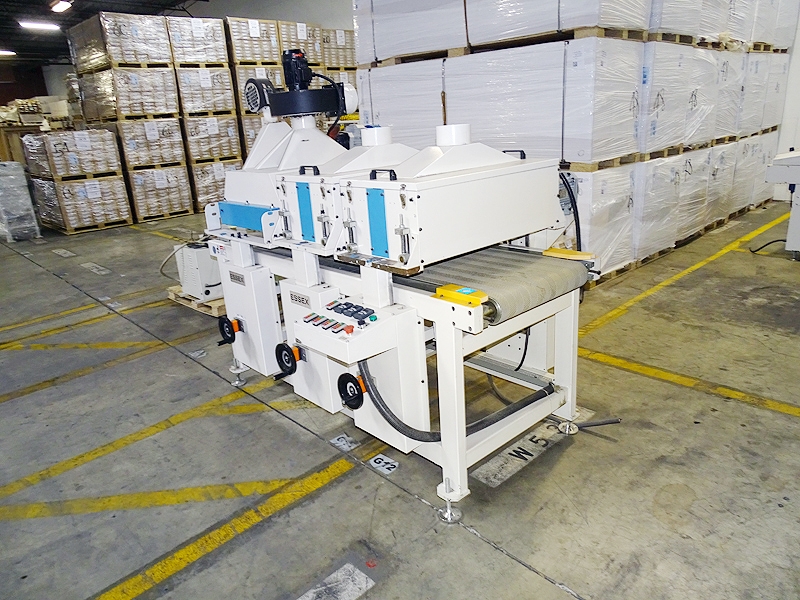

Dalian Gousen GSGS600A3 Panel Denibber/Panel Brush (2020)
Operating voltage: 7.6kW, 480V, 3 phase
24" width capacity
3-3/4" maximum height capacity
(3) head
First: Stiff plastic roller brush
3 HP, 480V, 3 phase
Second: Missing Brush Roller
3 HP, 480V, 3 phase
Third: Soft fine Bristle Brush
1/2 HP, 480V, 3 phase
This head has vacuum dust extraction
1 HP, 480V, 3 phase
Also has a 1/4 HP, 480V, 3 phase blow-off fan
Feed belt motor: 1 HP, 480V, 3 phase
Handwheels for thickness adjustment
Side-mounted controls
Variable speed controls for each head
S/N 201911679
