Makor Q-One Reciprocating Spray Machine (2022)
This machine was purchased new in 2023 for $179,900!

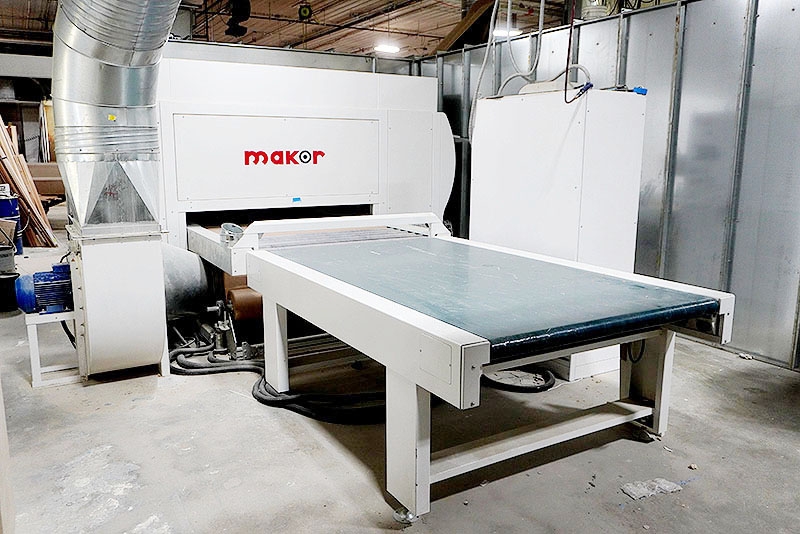

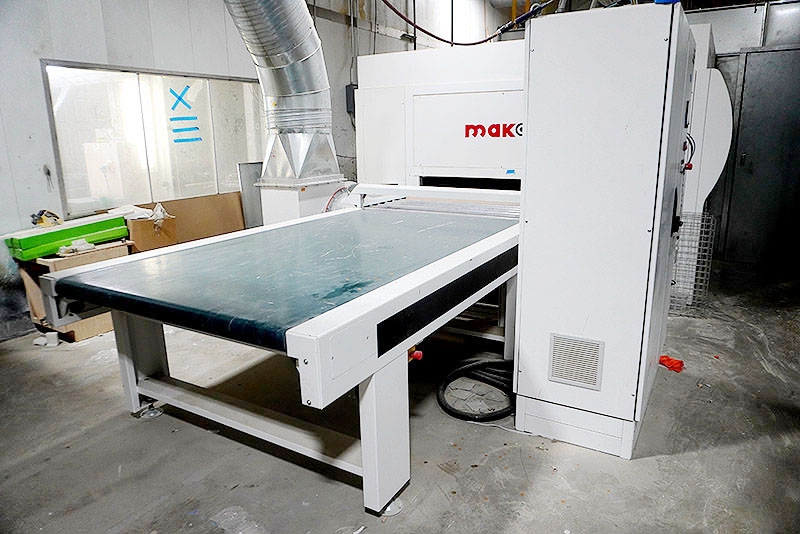

Makor Rolly 2500 Infeed Motorized Belt Conveyor
Conveyor is 98" in length x 63" wide with a 36 "wide belt (drive motor .6kW (.9HP), 480V, 3PH, 60Hz
S/N: 18051

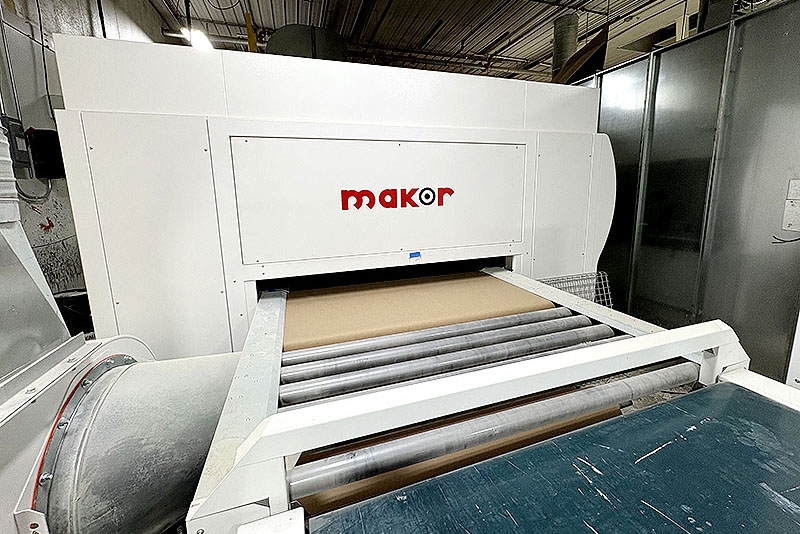

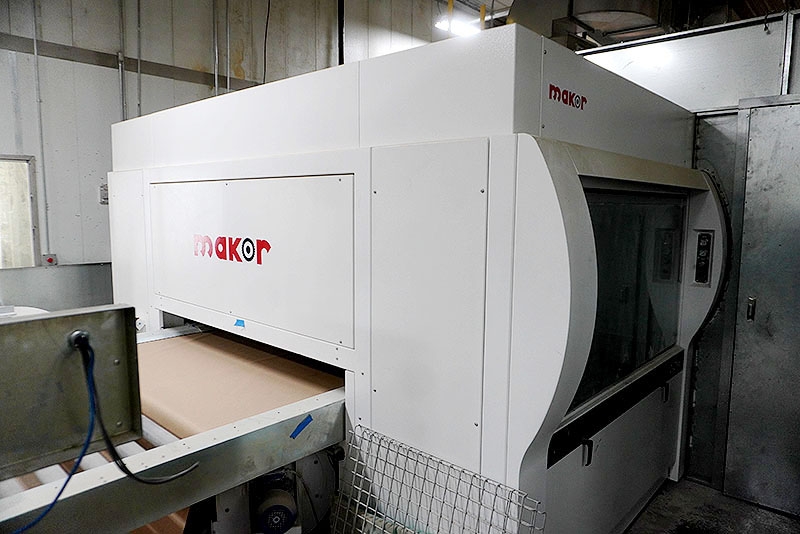

Makor Q-One Reciprocating Spray Machine with Changeover System (2022)
Model: Q-ONE
480V, 3 Phase
Machine Technical Data:
Max Feed Speed: 19.6 ft/min
Total power installed: 13 kW
Height of Work Surface: 900 mm +- 50 mm
Compressed air supply pressure: 6 bar
Overall dimensions: 165" x 170" x 102"
(4) Gun design with (2) leading and (2) trailing guns

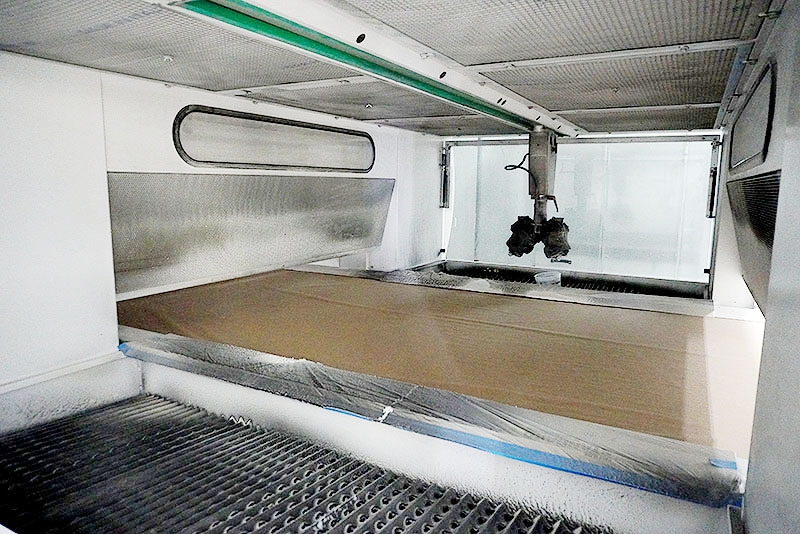

Spray arm is track mounted, traverses the width of the conveyor. Timing and pattern is CNC controlled
Equipped with exhaust blower mfg by Moro
5.5 kW (7.7HP), 460V, 60 Hz
MAKOR Controller with digital display.
Year: 2022
s/n 18052

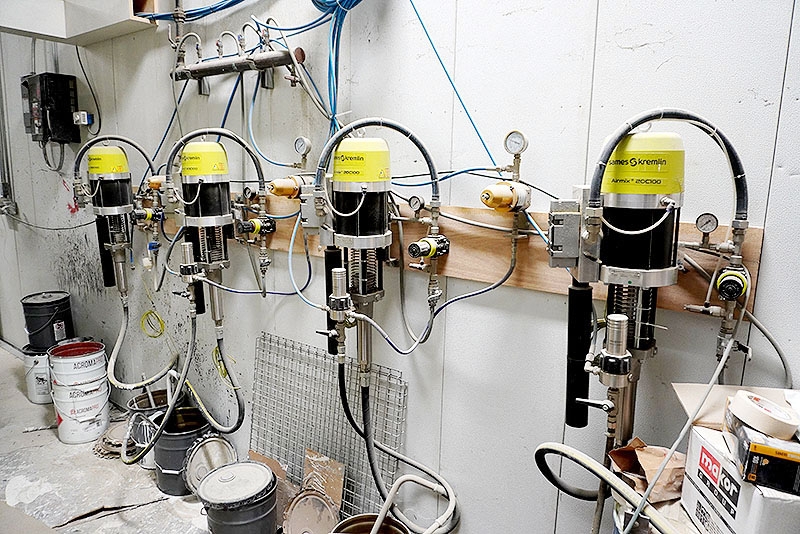

Includes (4) Sames Kremlin Airmix 20C100 Spray Pumps

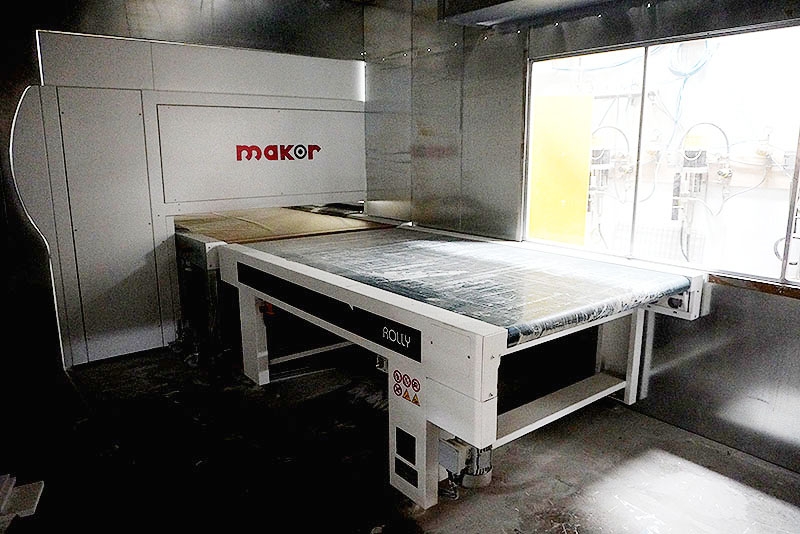

Makor Rolly 2500 Outfeed Motorized Belt Conveyor
Conveyor is 98" in length x 63" wide with a 36 "wide belt (drive motor .6kW (.9HP), 480V, 3PH, 60Hz
S/N: 18053
