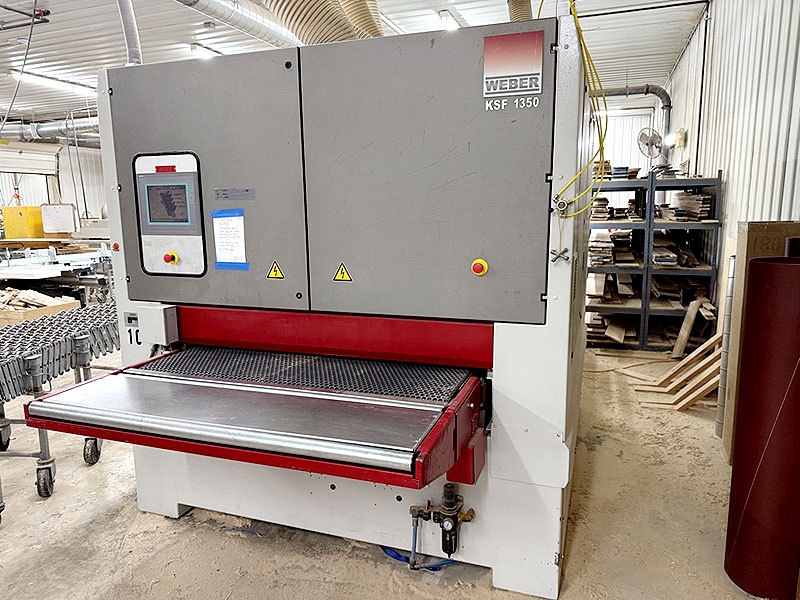

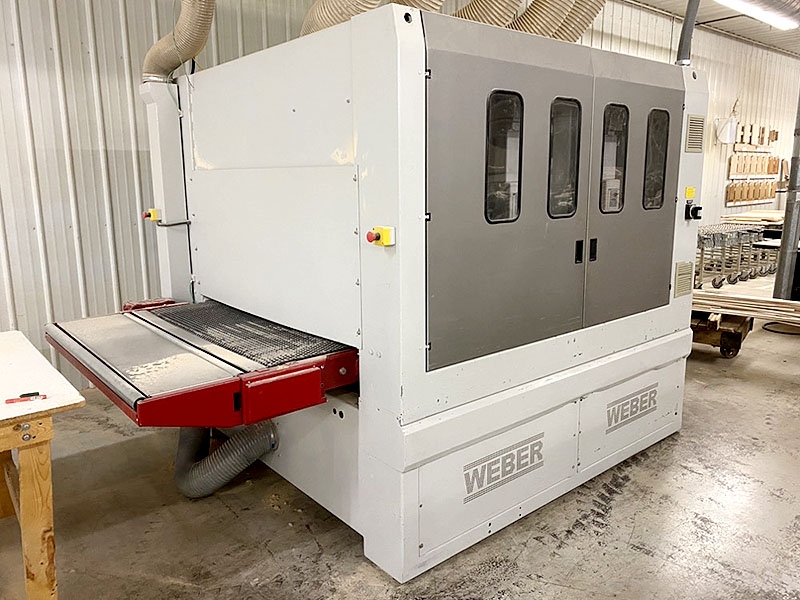

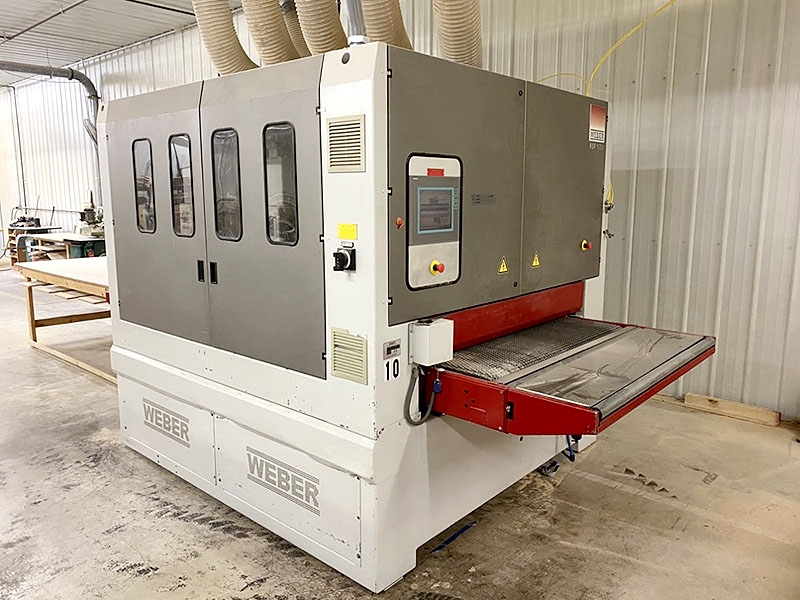

(4) head contact drum sander with cleaning brush and vacuum
53" x 43/4" thickness
Minimum workpiece thickness: .15750"
Operating voltage: 460v, 3PH, 106 kW
Designed as a calibrating and finish sander
Approx. 24" loadspace with gravity roller on infeed
Constant passline: 900mm (35.43")

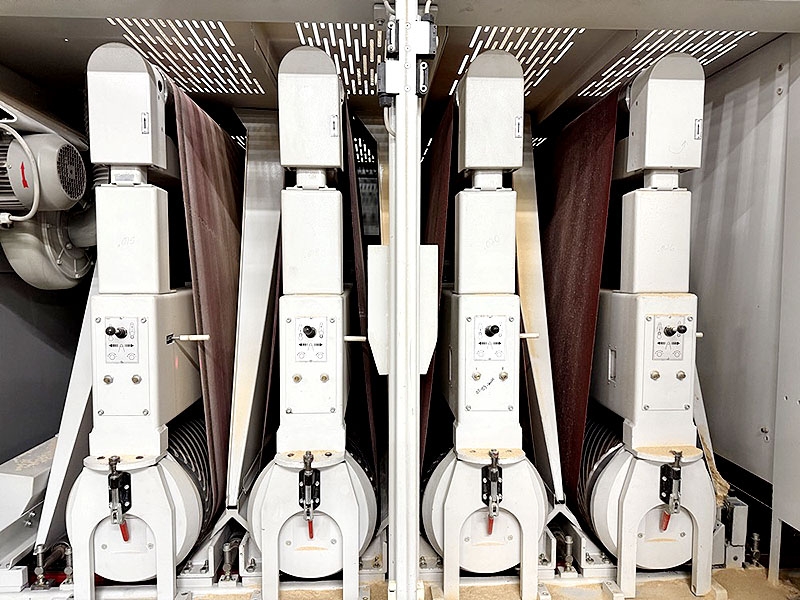

Sanding head configuration:
First Head: spiral steel contact – 21 kW (28.1 HP), 460v, 3PH
Second Head: spiral rubber contact – 18.5 kW (24.8 HP), 460v, 3PH
Third Head: spiral rubber contact – 15 kW (20 HP), 460v, 3PH
Fourth Head: spiral rubber contact (variable speed) – 15 kW (20 HP), 460v, 3PH
Auto thickness control (height adjustment) - .75 kW (1 HP), 460v, 3PH

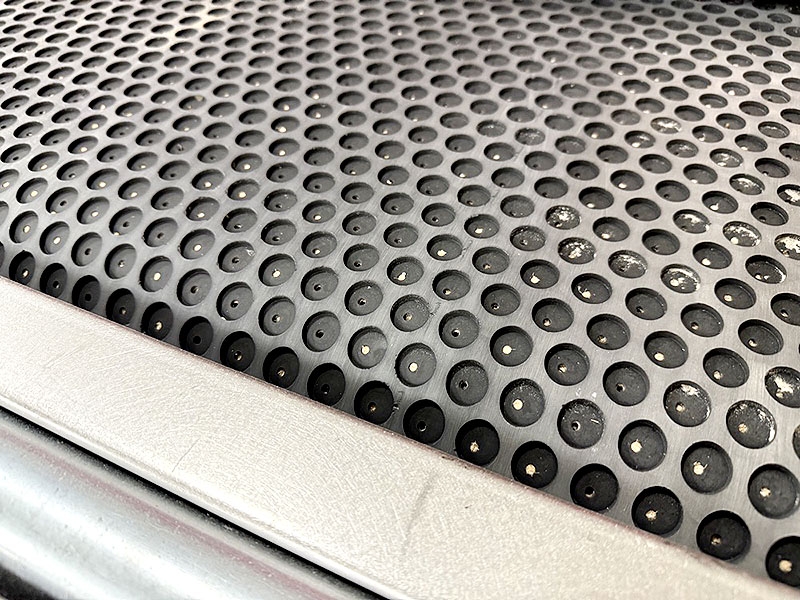

Variable speed feed belt (9.8 fpm to 59 fpm) 2.2 kW (3 HP), 460v, 3PH
Sanding head speed for first three heads: 65.6 feet per second
Sanding head speed for fourth head: 13.1 to 65.6 feet per second
Cleaning brush: .55 kW (3/4 HP), 460v, 3PH
Workpiece blow-off: 2.2 kW (3 HP), 460v, 3PH
Variable feed belt: 5.5 kW (7-1/3 HP, 460v, 3PH
7,500 CM dust extraction required when operating all heads
Weight: 14,750 lbs.
Dimensions: 12'9" long x 7'3" x 7'9" high
Purchased as a demo machine in 2017
Total hours unknown
s/n 92.445.103
