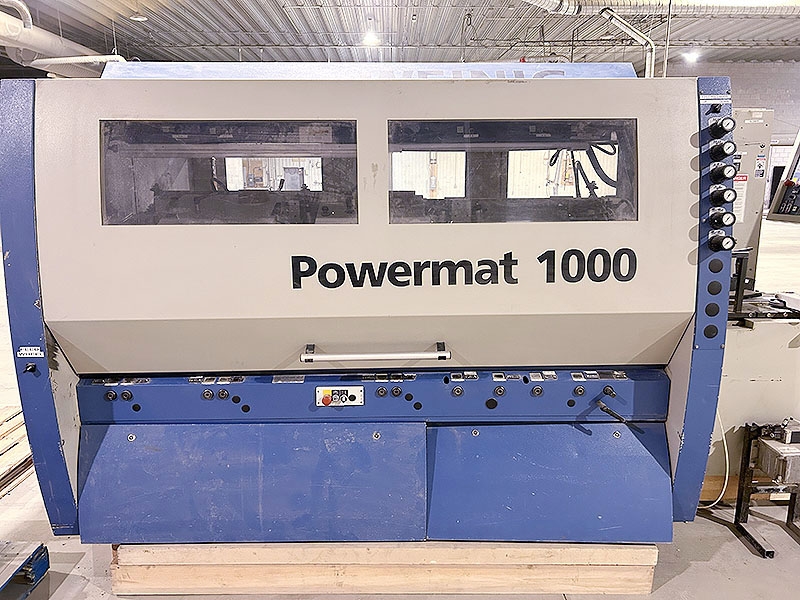

Working Capacity: 9-1/16" X 4-3/4"
All Heads Have Digital Readouts

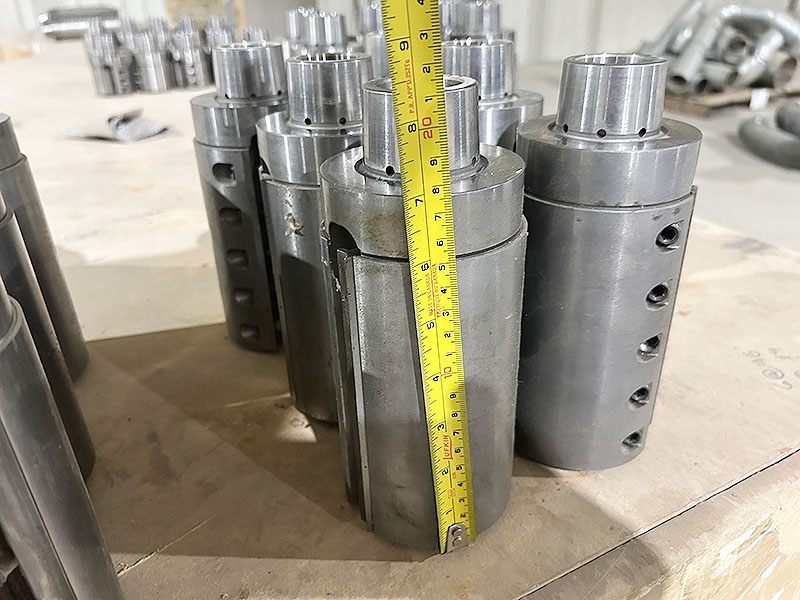

All Heads Except the 1st Bottom Head are HSK Powerlock Spindles
(6) Head Configuration: Bottom, Right, Left, Top, Top, Bottom
1st Head: Bottom
Motor: 15 KW
2nd Head: Right-side
Motor: 15 KW
3rd Head: Left-side
Motor: 15 KW
4th Head: Top
Motor: 22 KW
5th Head: Top
Motor: 30 KW
6th head: Bottom
Motor: 22 KW
Feed Motor: 5.5 KW
Safety/Sound Enclosure
Electrical:
Supply Voltage: 3X600 V, 60 Hz
Control Voltage: 115 V, 60Hz/24V, 0 Hz
Connected Load: 126 KW
Full Load Amps: 168 A
Main Fuse: 200 A
Largest Motor: 30 KW
Rated Withstand Current: 42 KA
Serial #104133
