Auction!

Online Only

Assets no longer required for continuing operations of Benedettini Cabinetry - Auction includes Viet Opera 5-4.3 RRRF, 4-Head 53” Wide Belt Sander - Viet Opera 5-4.3 RRRF, 4-Head 53” Wide Belt Sander (Constant Pass Line Height)

Rosenberg, TX

Closing Online: May 6th

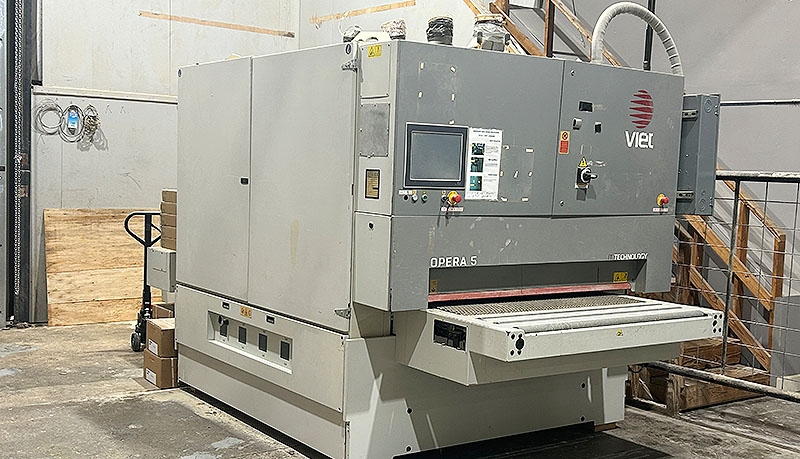

Viet Opera 5-4.3 RRRF, 4-Head 53" Wide Belt Sander (Constant Pass Line Height)



Model: Opera 5-4.3 RRRF

Year: 2014

Electrical: 460V, 169amps, 60Hz, 3Ph

Sanding Width: 53.1" / 1350mm

Working Height 7.8"/ 200mm

Laser electronic positioning for working thickness measuring.

Constant Pass Line Machine

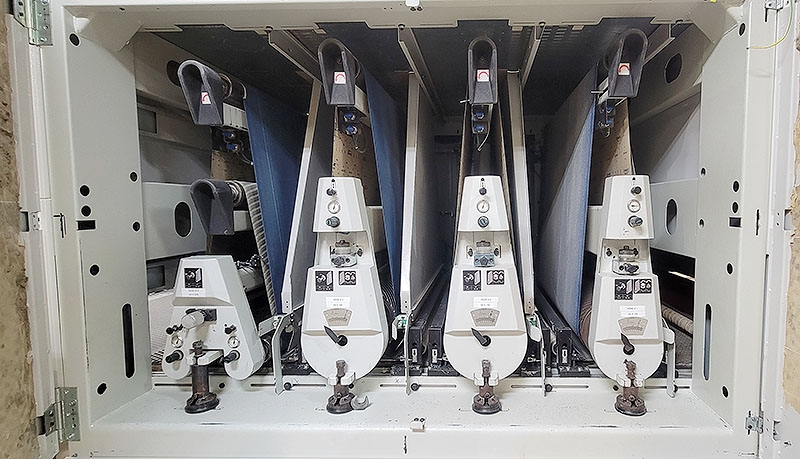

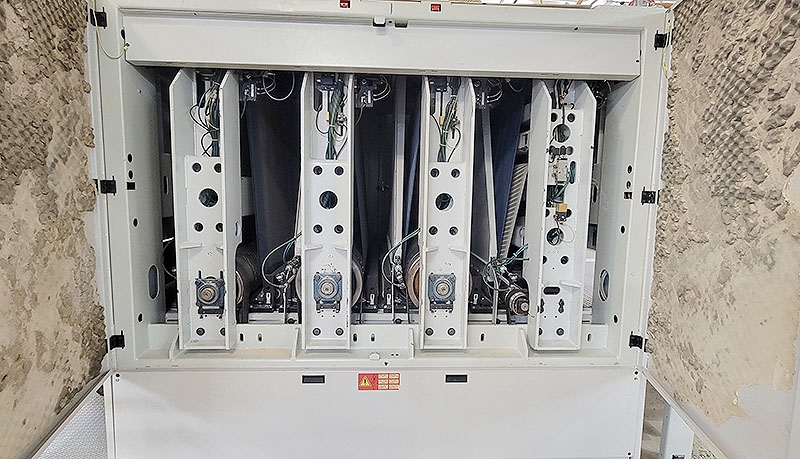

Head Order:

1st head. Contact Head. Steel 240mm diameter drum. Driven by a dedicated (30 hp motor). Equipped with infeed and outfeed pressure shoes for precision calibration.

2nd head. Contact Head. 240mm diameter drum. Driven by a dedicated (25 hp motor). Equipped with infeed and outfeed pressure shoes for precision calibration.

3rd head. Contact Head. 300mm diameter drum. Driven by a dedicated (20 hp motor). Equipped with infeed and outfeed pressure shoes for precision calibration.

4th head. Platen Combination Head (Superfinishing Unit). The pad unit has a "chevron belt" running between the pad and

abrasive belt. Driven by a dedicated (20 hp motor). Equipped with infeed pressure shoes for precision calibration.

Pneumatic Belt Tracking and Tensioning (approx.)

All stations appear to have pneumatic belt cleaning stations.

Perforated conveyor belt w/ vacuum table.

Conveyor is driven via 5.5hp motor

Vacuum table is powered by a 7.5hp blower motor.

Equipped with 15" IPC Touch Screen Control Panel.

Weight: 6980kg.

Serial: 5811200

All items are subject to prior sale.
