New in 2017 at a cost of $390,000! A New Similar Machine Today is $775,000.
*Please see the PDF file below for more information from the manufacturer's original proposal. These manufacturers' specifications are being provided as a guide only and the auctioneer recommends bidders to inspect this lot prior to making an offer to verify the manufacturer's specifications are accurate & complete. This machine is being offered "As Is, Where Is".
<----Click Here For MFG Specs

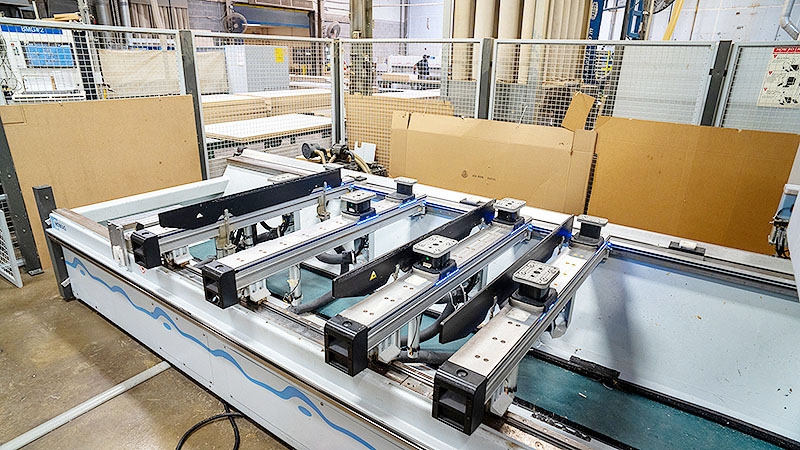

Main Router Spindle 9.5/12 KW, 0-24,000 RPM Uses HSK-63F Tooling C- Axis with Unit Interface Interface for Flex5+ Unit Coolant Reservoir for Main Spindle (14) Position HSK-63F Plate Type Tool Changer (21) Spindle 2.2 KW Boring Head: (17) Vertical & (4) Horizontal Spindles Blowing Nozzle Workpiece Edge 60mm Pre-Snipping Station with One (1) Coil Magazine Granular EVA Glue Container PowerEdge Gluing Application Unit Flexible Edge Sequence Control Software Remnant Edge Length Control Hot Air Nozzle for Gluing Unit 360 Degrees Sawing & Snipping Unit for Tool Changer Corner Rounding Trimmer Left Hand/Right Hand Combi Flush Trimming & Scraping Unit Thickness 15-60mm Blowing Nozzle Workpiece Egde 60mm for Tool Changer K Type Vacuum/Fixturing Console Table LED Positioning Indication System for 1,300-1,850mm Consoles Vacuum System Pump 63 M3/hr (37cfm) Chip Conveyor Belt (Right) BMG/../12
Machine Technical Specifications: Workpiece Length In X-Axis In single operation (all tools): MAX4,200 mm(165.35") In alternating mode (dynamic mode): 500-2400 mm (19.6"-96.06") In two-zone operation with edge banding: MAX 1470 mm (57.87") In single operation (tool diameter 25 mm): MAX 4375 mm (172.24") In alternating mode (dynamic mode – 25 mm): 500-2615 mm (19.6"-102.9")
Workpiece Width In Y-Axis Front stop pins (all units) MAX 950 mm (37.40") Front stop pins (tool diameter 25 mm) MAX 1050 mm (41.33") Front stop pins (PowerEdge) MAX 1050 mm (41.33") Rear stop pins (all units) MAX 1400 mm (55.11") Rear stop pins (tool diameter 25 mm)* MAX 1550 mm (61.02") Rear stop pins (PowerEdge)** MAX 1500 mm (59.05")
Workpiece Thickness In Z-Axis With edge: MAX 60 mm (2-3/8") Edge height for butt joint: MAX 45 mm (1-13/16")
Edge height is panel thickness plus 4 to 5 mm (5/32" to 3/16") for best quality edgeband finishing.
Without edge with standard vacuum cups: MAX 60 mm (2-23/64") Without edge with templates: MAX 270 mm (10.62")
Edge Materials PVC: 1 to 3 mm (3/64 to 1/8") Melamine, Plastics: .4 to 3 mm (1/64 to 1/8") Veneer (both coil and strip): .4 to 2 mm (1/64 to 3/32") HPL strips: .4 to .8 mm (1/64 to 1/32") Manual feed strip length: MIN 300 mm (11-13/16")

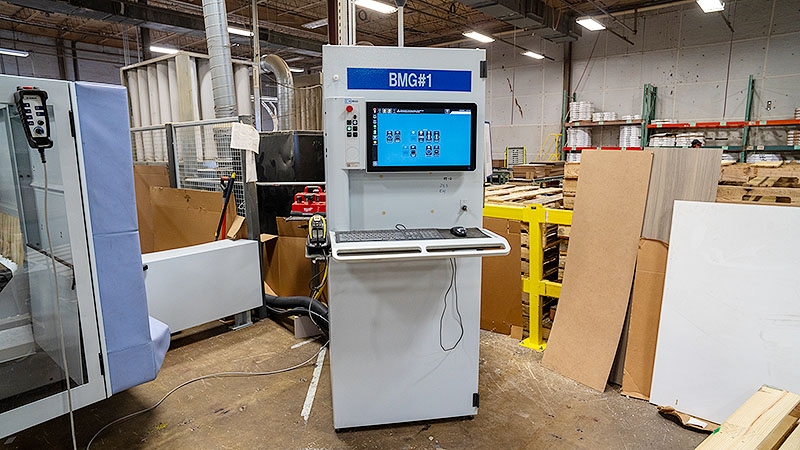

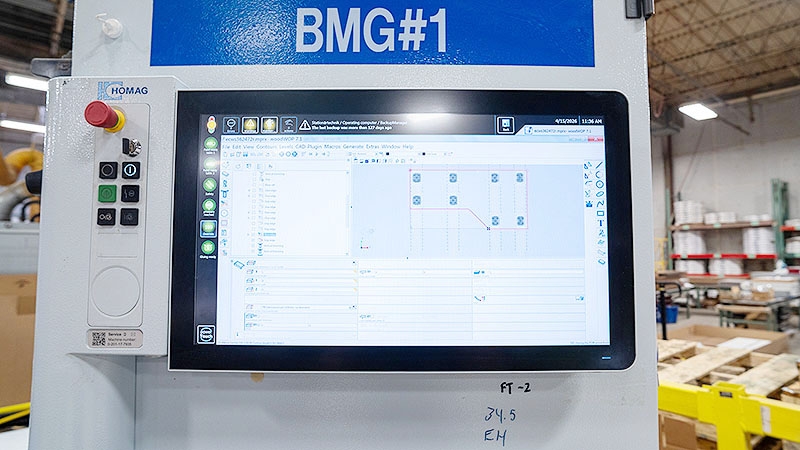

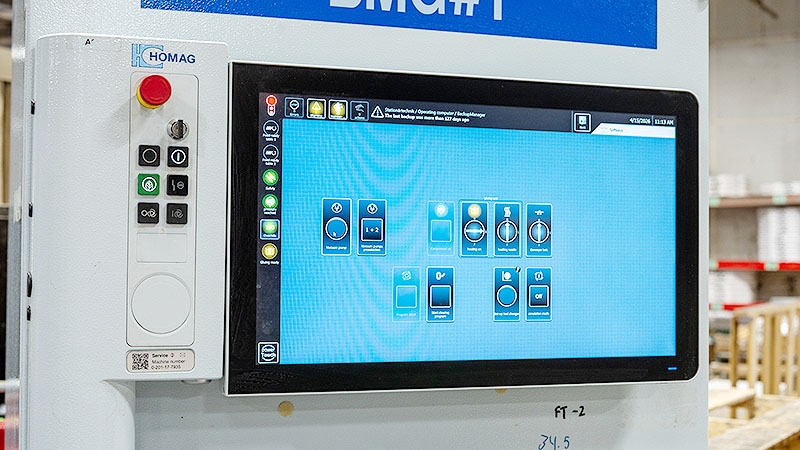

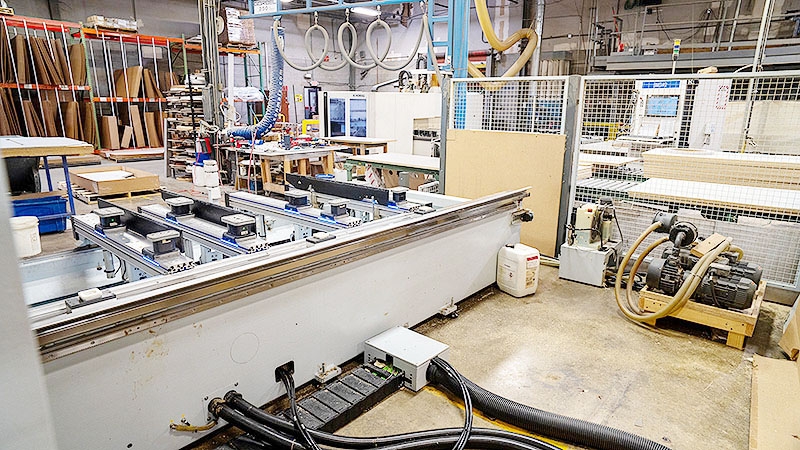

Power Control PC86 PowerTouch-Hardware & Software Machine Runs on WoodWOP 7 Software Package for BOF/BMG Air Conditioning Unit for Switch Cabinet
