Electrical: 480y/277v, 60hz, 3ph

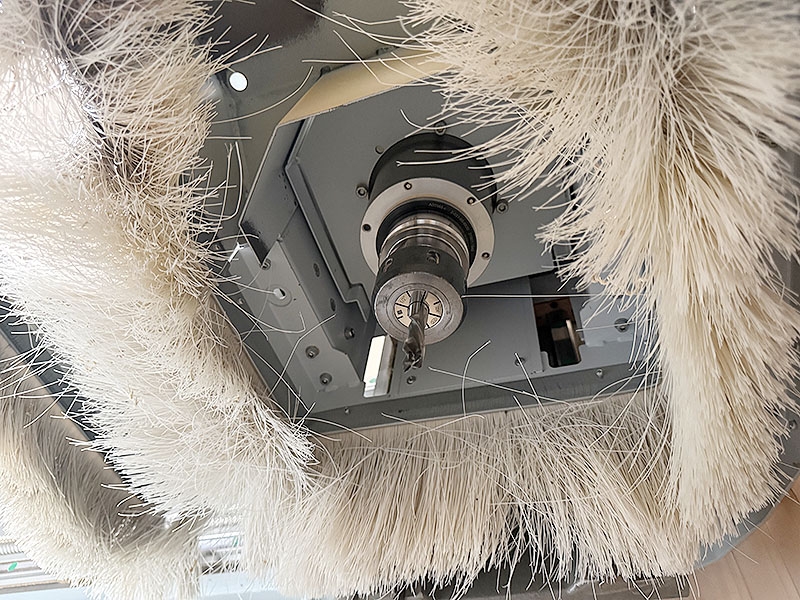

Main Router: 24,000rpm max, HSK63F Tool Interface

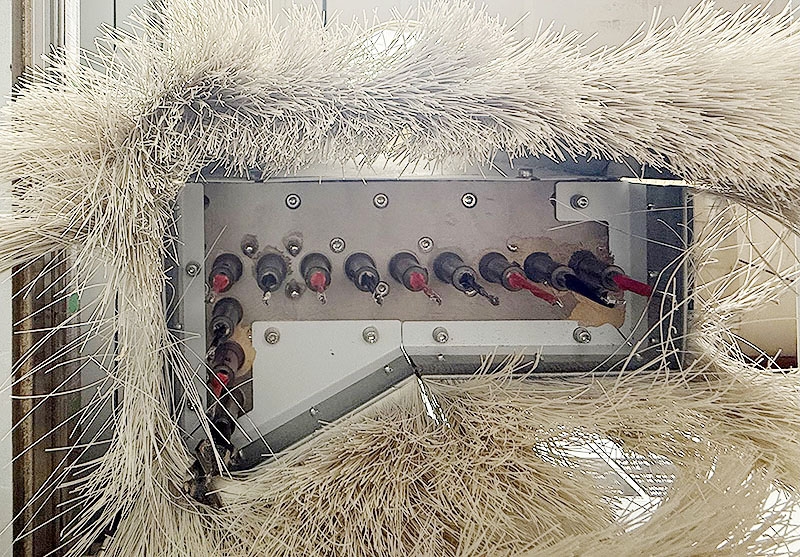

1.73kW Drill Block Assembly:
Vertical spindles: (9) X-Axis and (4) Y-Axis with (1) spindle shared between the axes.

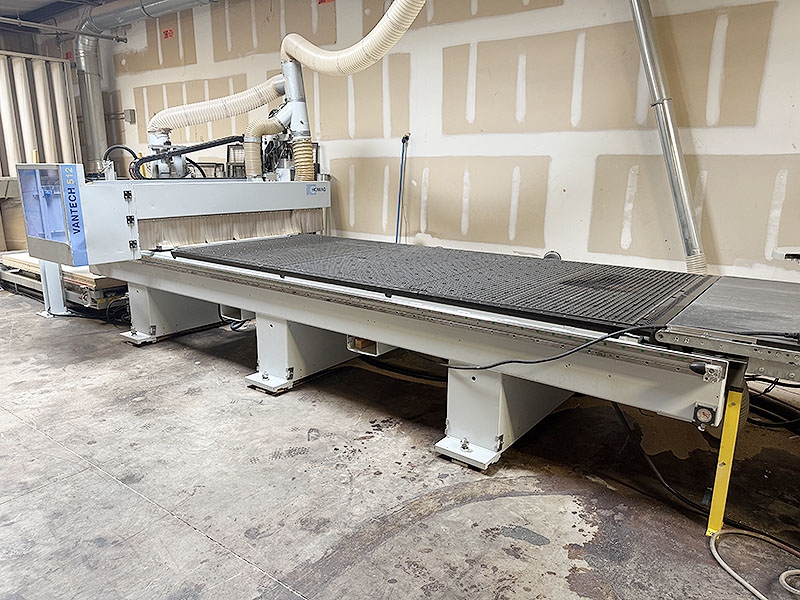

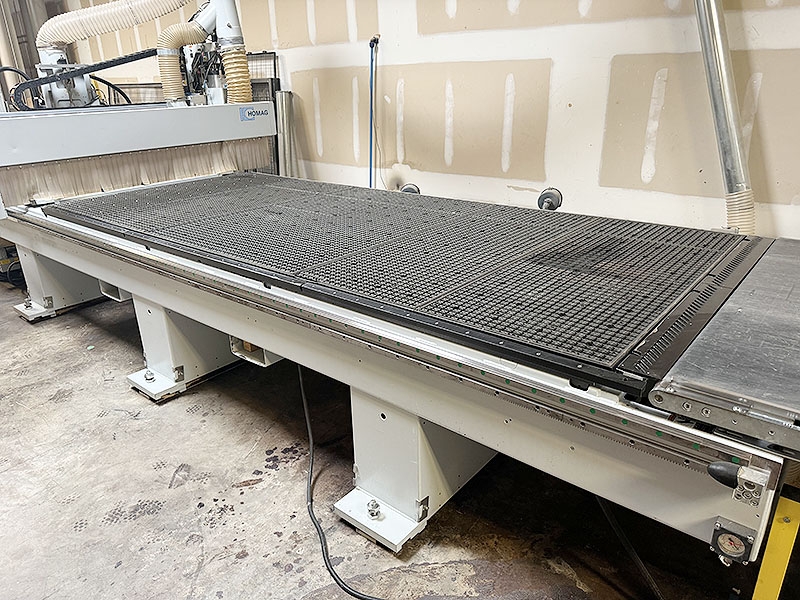

Worktable type: Flat Vacuum Table
Worktable dimensions: 61" x 145.5" (approx)
Worktable equipped with (8) pneumatic pop-up style reference stops.
Equipped with (4) Becker Picchio 2200 2.5kW Vacuum Pumps.

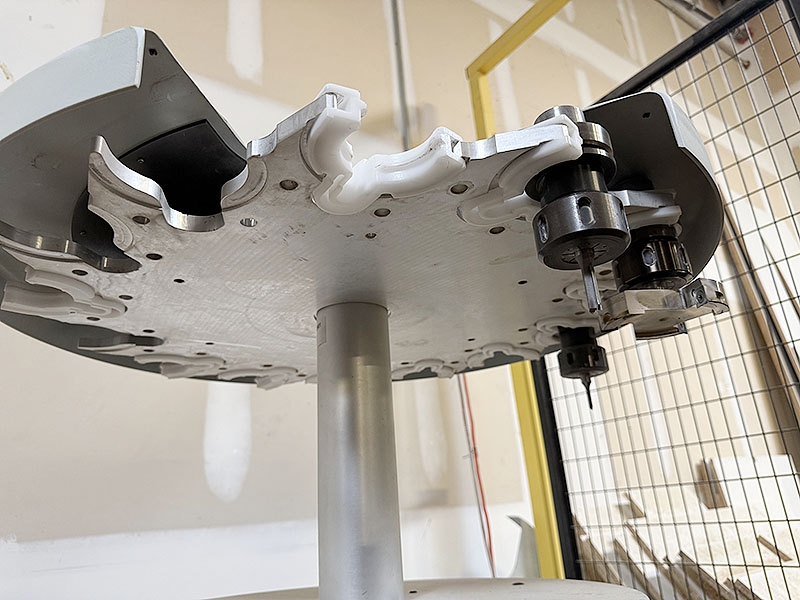

Equipped with frame mounted 14-Position Automatic Tool Changer

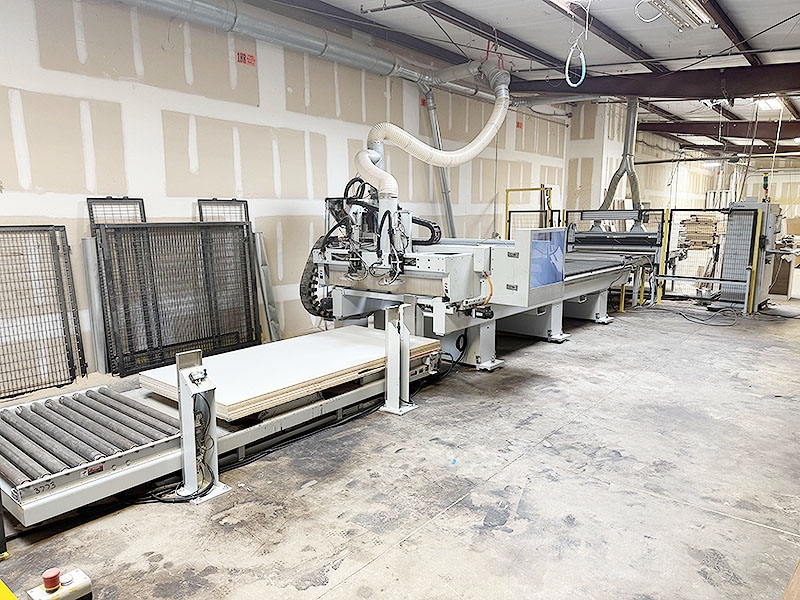

Equipped with complete infeed and outfeed system.

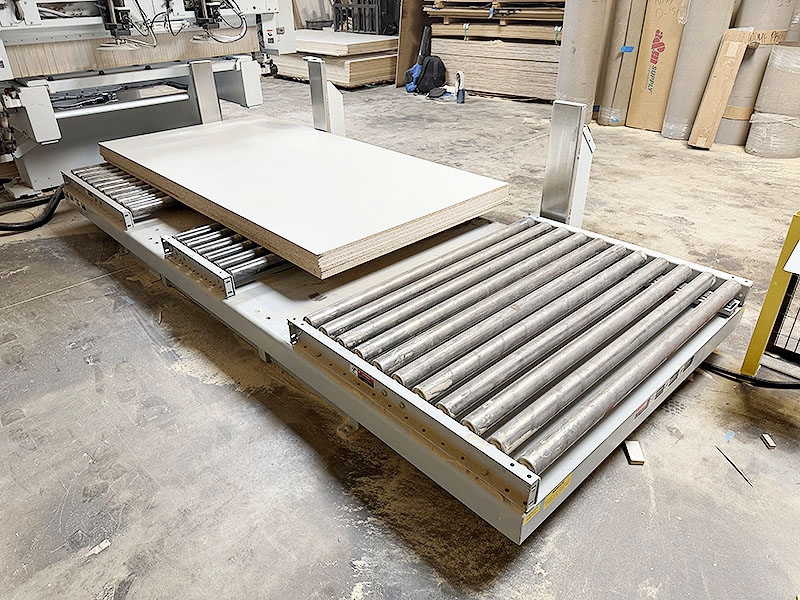

Infeed system includes 5000lbs Scissor Lift Table w/ Roller Top.
Scissor lift tabletop dimensions: 144" x 60"

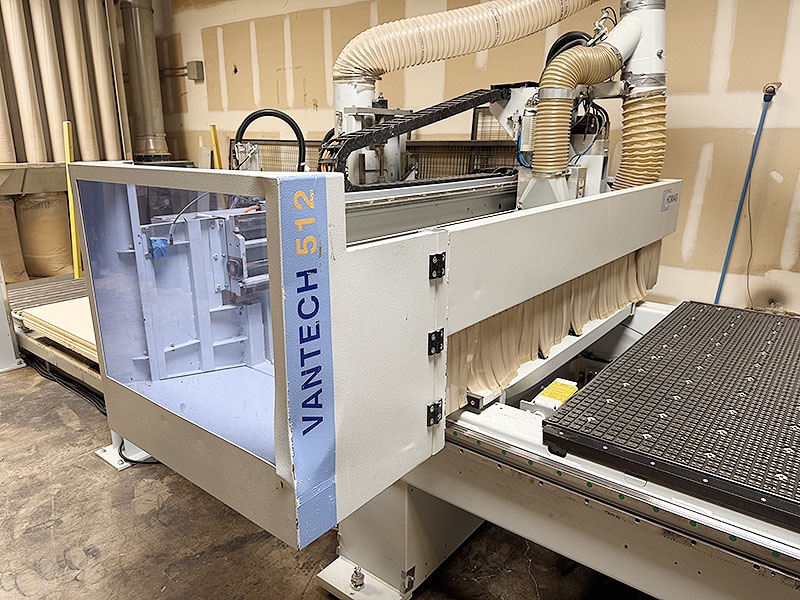

Gantry equipped with (2) vacuum suction cups and pneumatic pusher arm for loading panels on worktable and the transferring workpieces to outfeed table.

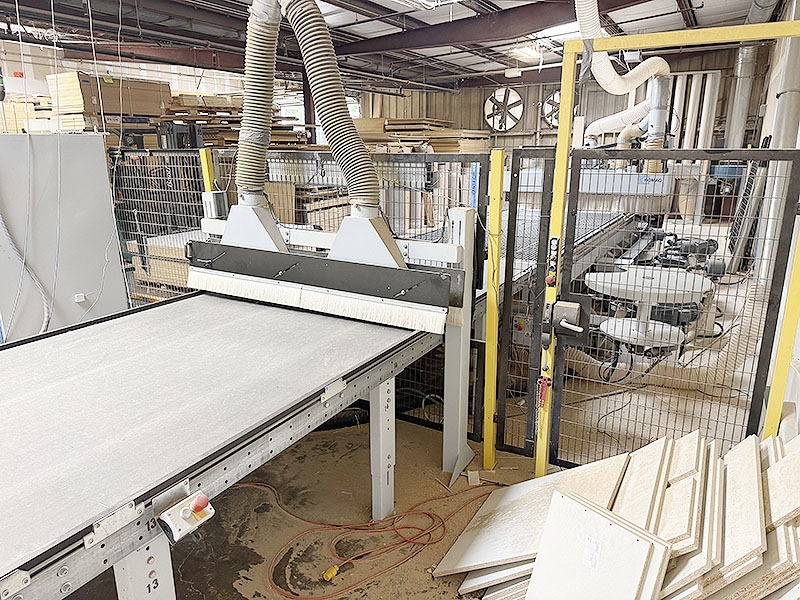

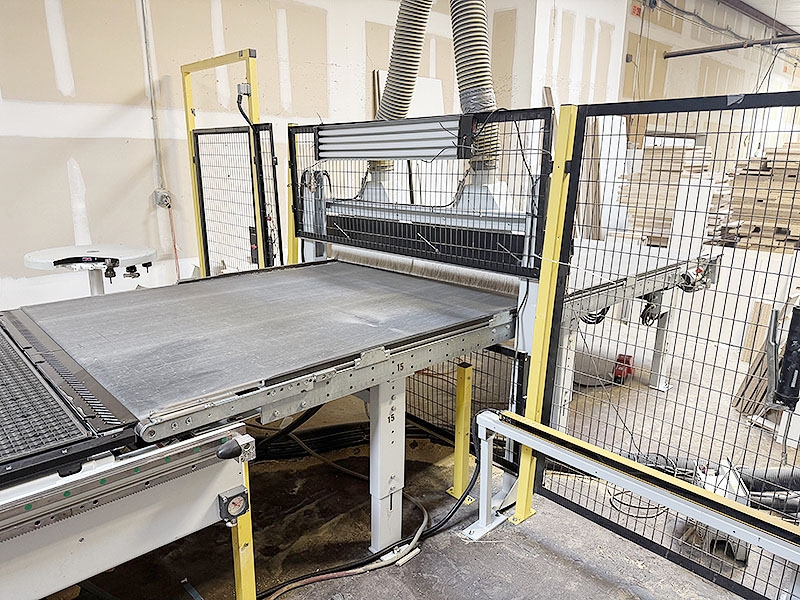

Includes 13.5ft long outfeed belt conveyor w/ 61" wide belt and over arm dust extraction hood
Front of the machine equipped with. ReeR Vision VX Safety Light Curtain
Serial: 0-250-80-3773
