Auctioneer's Note: Please note that machine shown
in the demo video is an identical sister machine to the one being sold. The
exact machine being sold was taken out of service and prepped for shipping
prior to auctioneer's arrival on premises.
Approximate
cost when new in 2017 was $186,000.
___________________________________

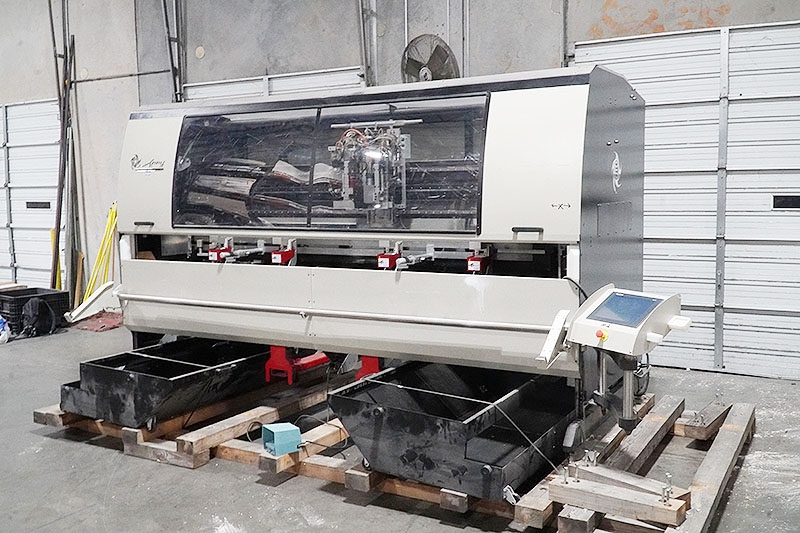

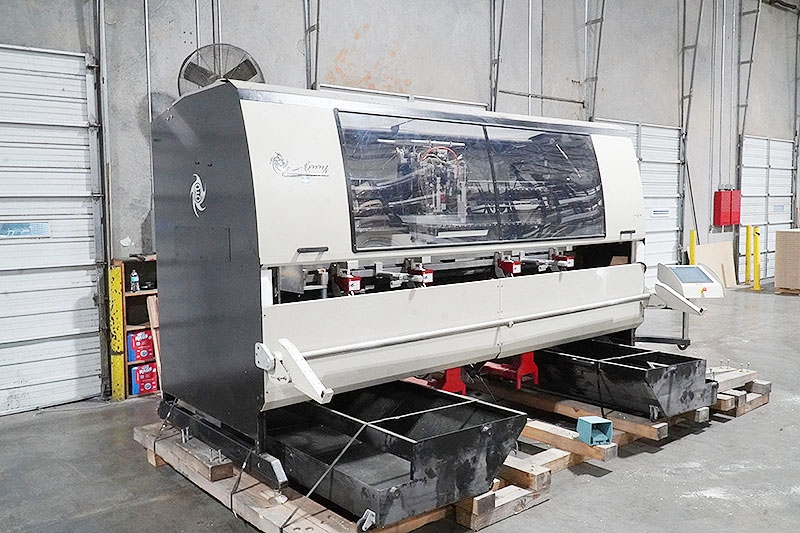

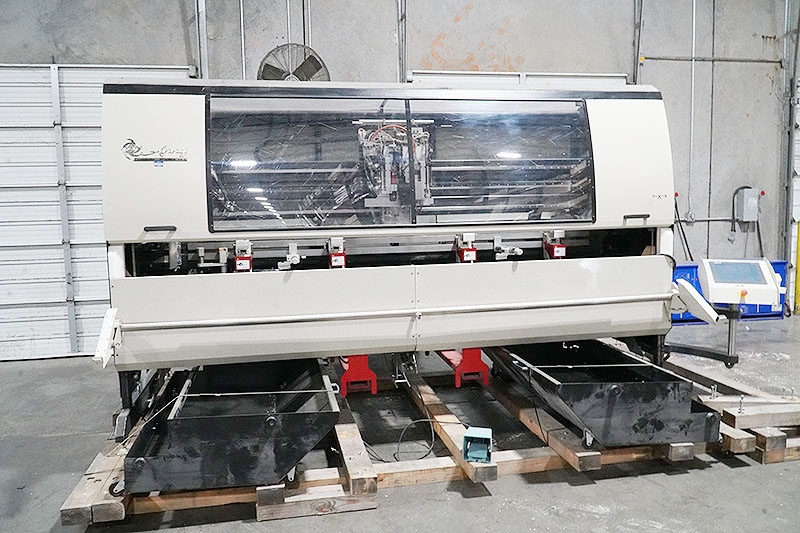

Model: Anny CN-X
Electrical: 480v, 10kVa, 60hz, 15amps, 3ph.
Used for processing door jambs, mullions, and sills.
Machining Capacity:
Length: 20" to 107" (approx.)
Max Width: 14" (approx.)
Max Thickness: 3.25" (approx.)
3-Axis CNC

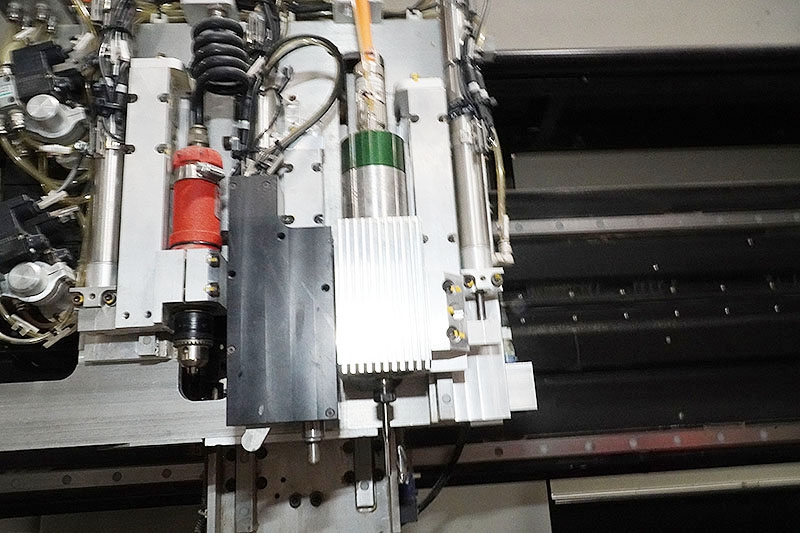

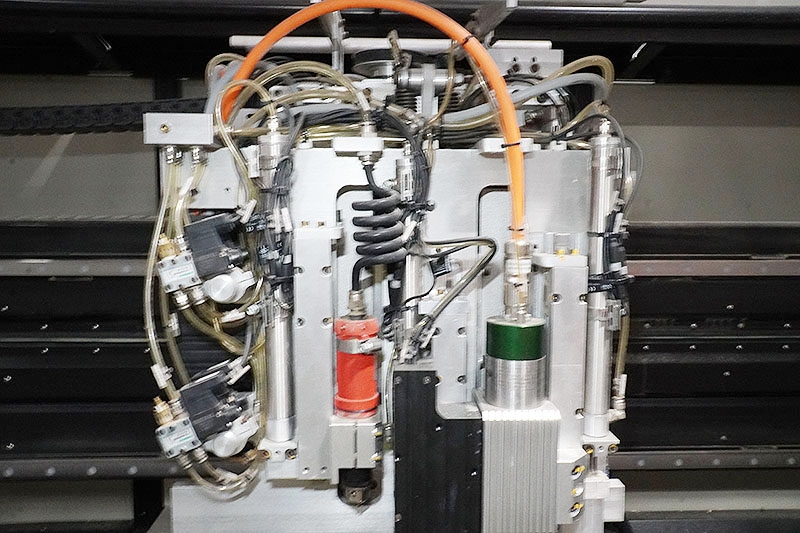

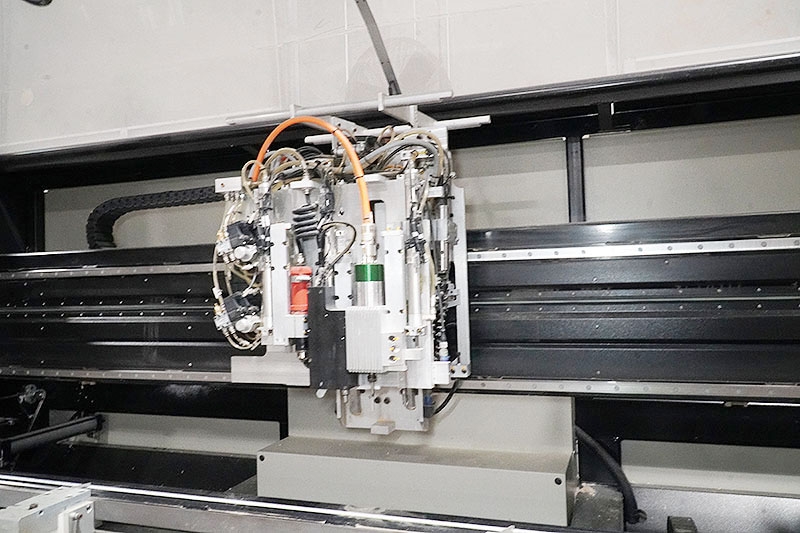

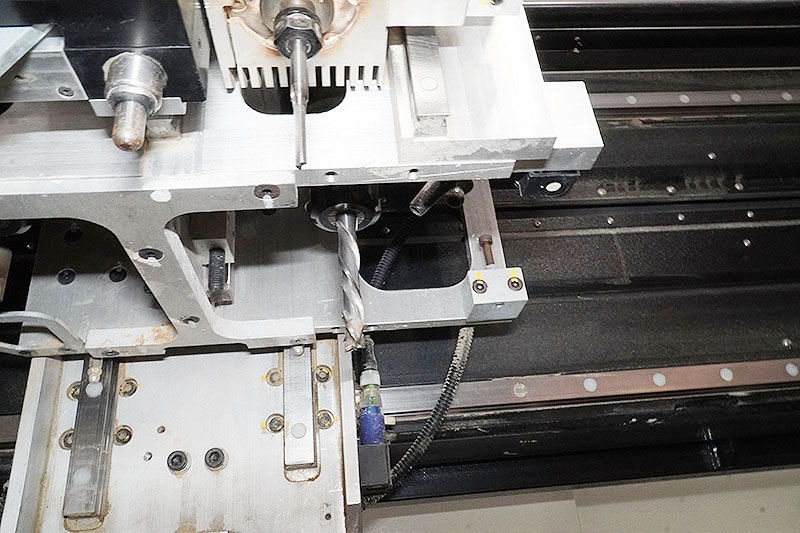

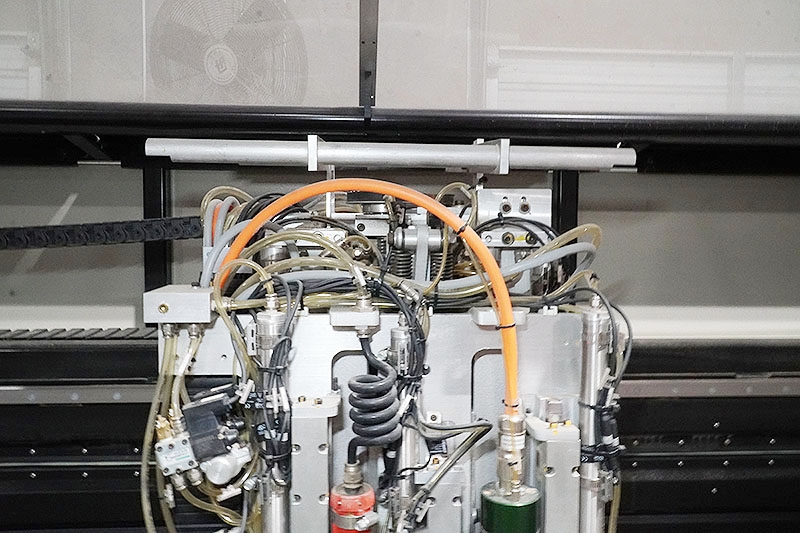

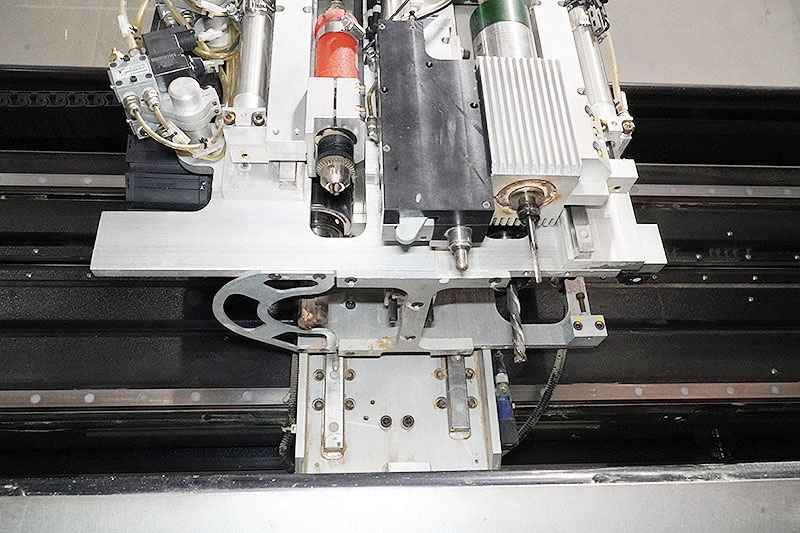

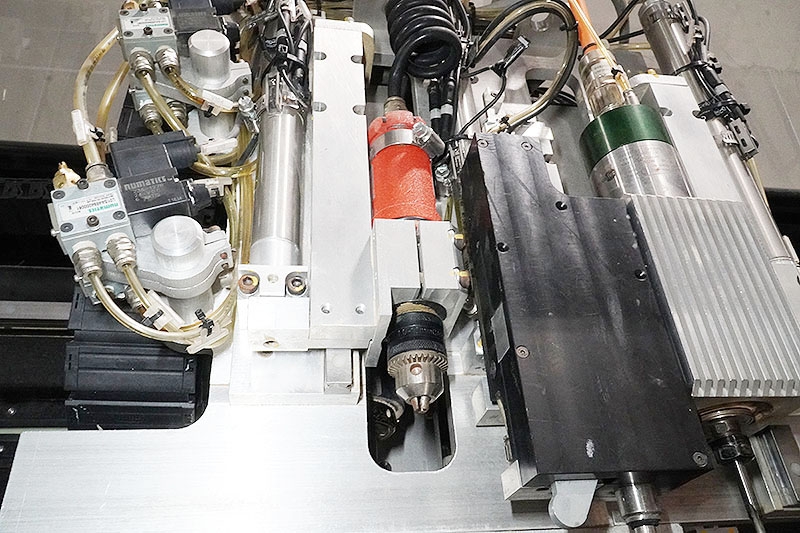

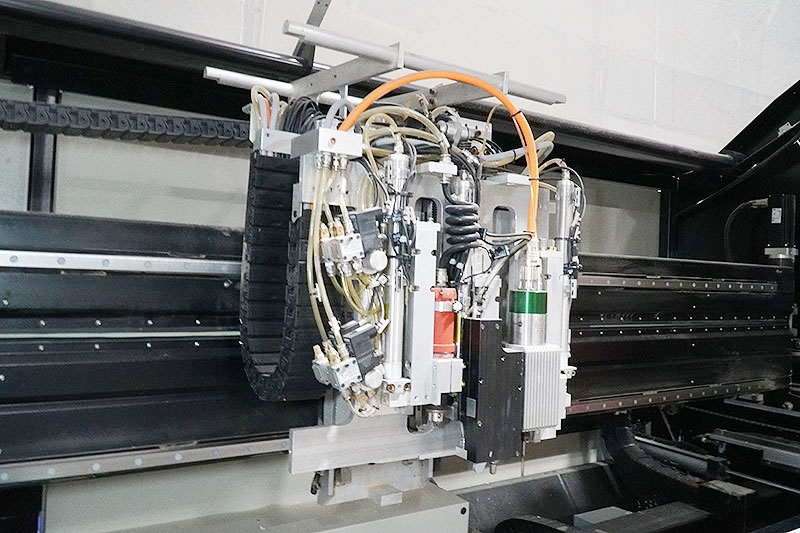

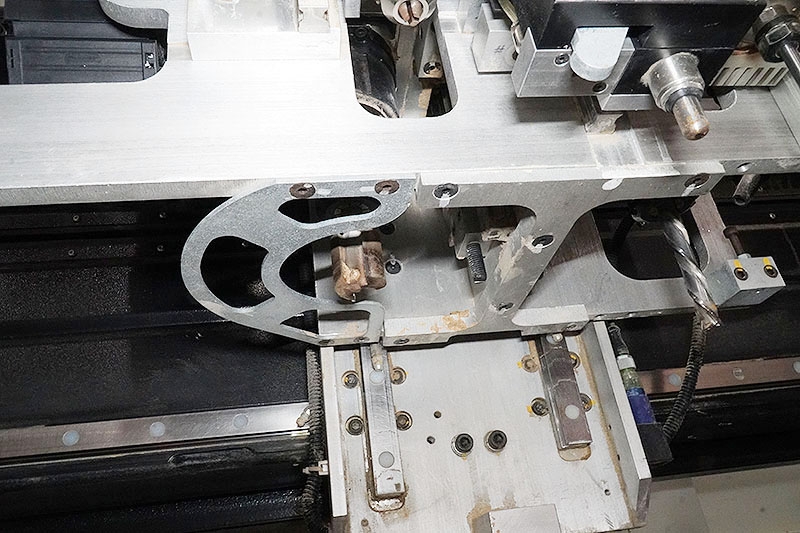

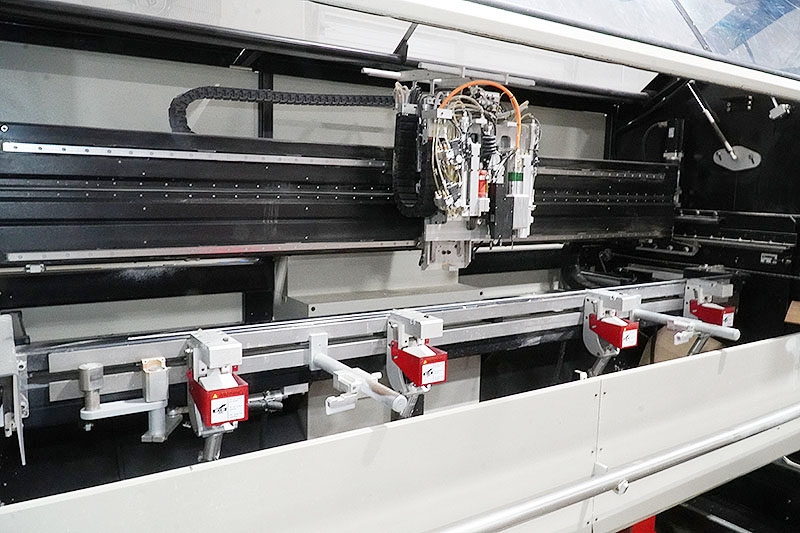

Machining head equipped with following features:
(2) 2.2kW routers
(1) Pneumatic Pre-Drill (approx.)
(1) 1.3kW Electric Drill Head (approx.)
(1) Positioning Probe.

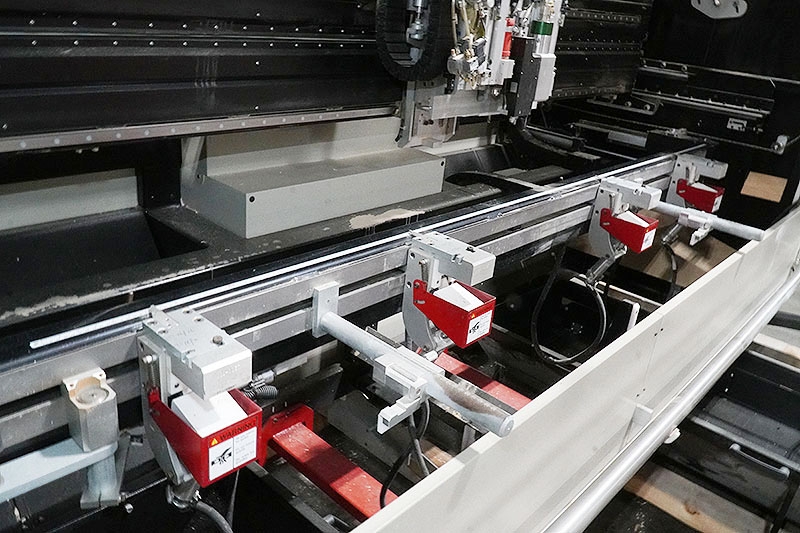

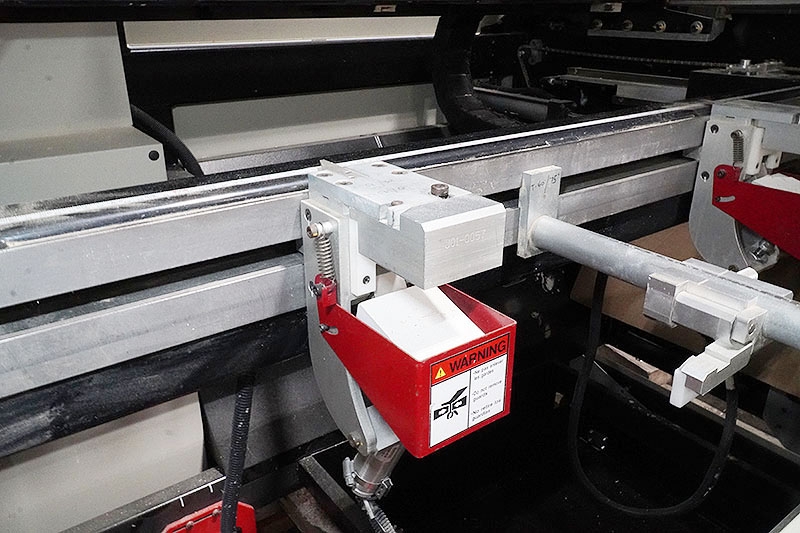

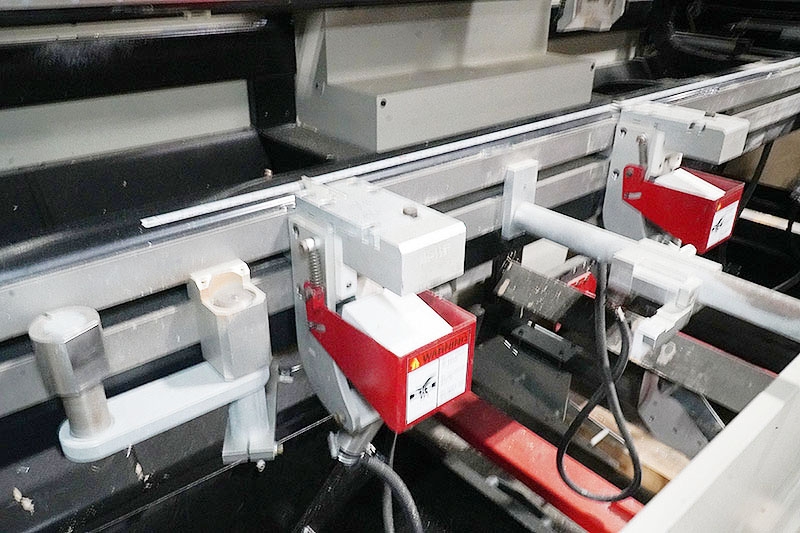

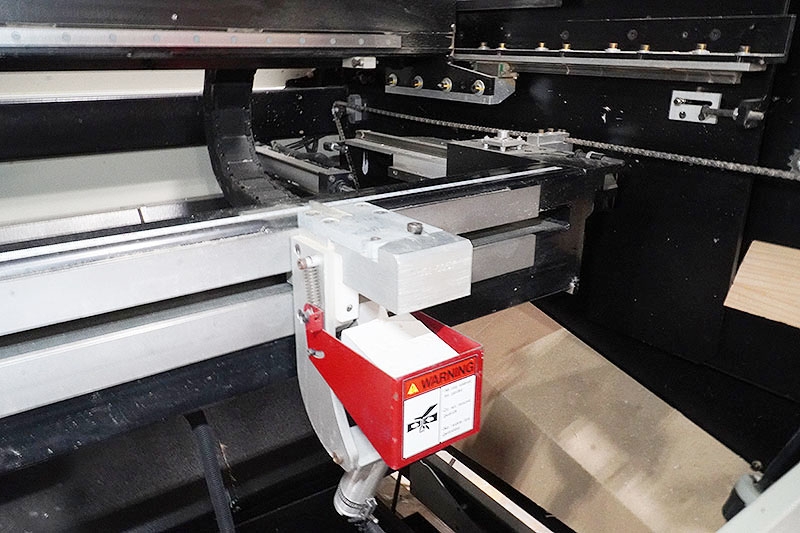

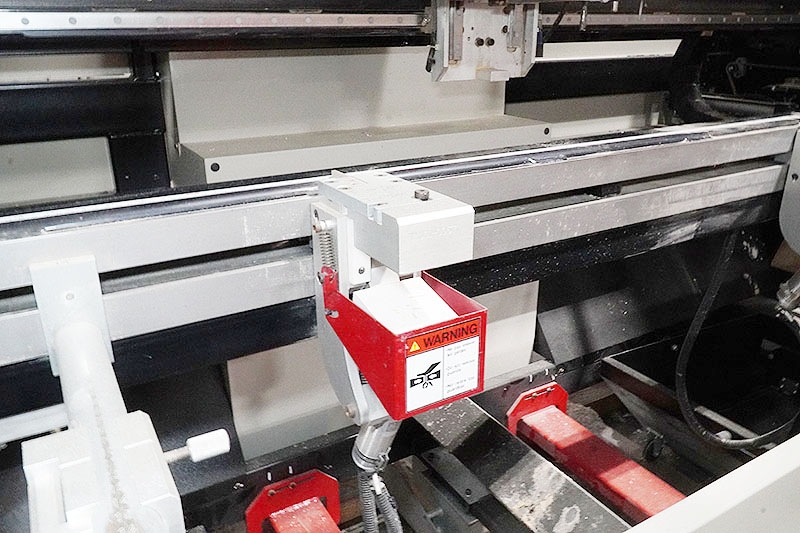

Machine equipped with (4) pneumatic hold downs securing and
positioning workpiece during processing.

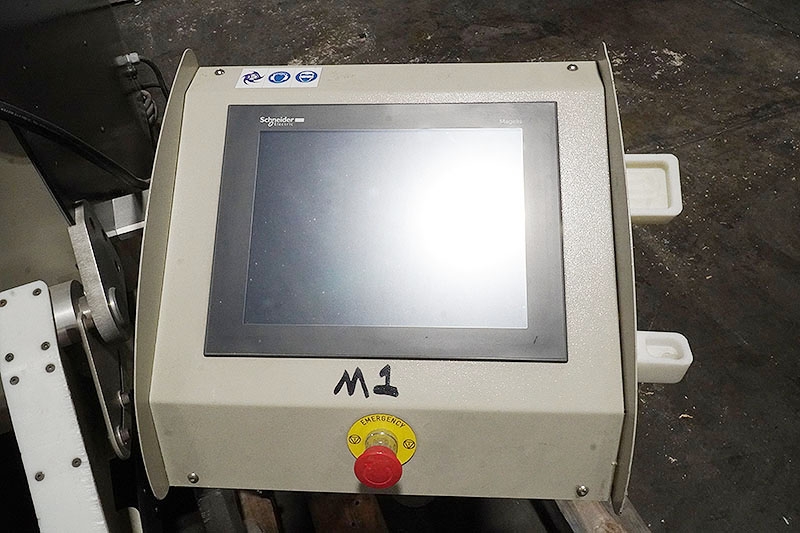

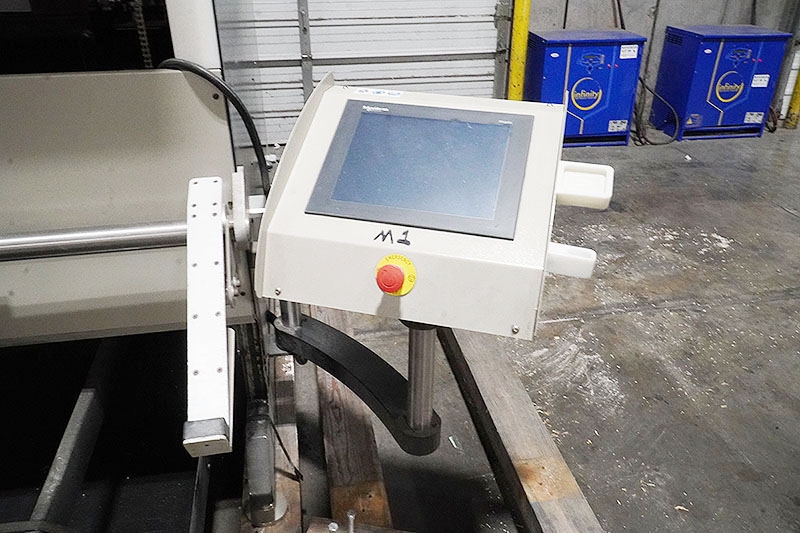

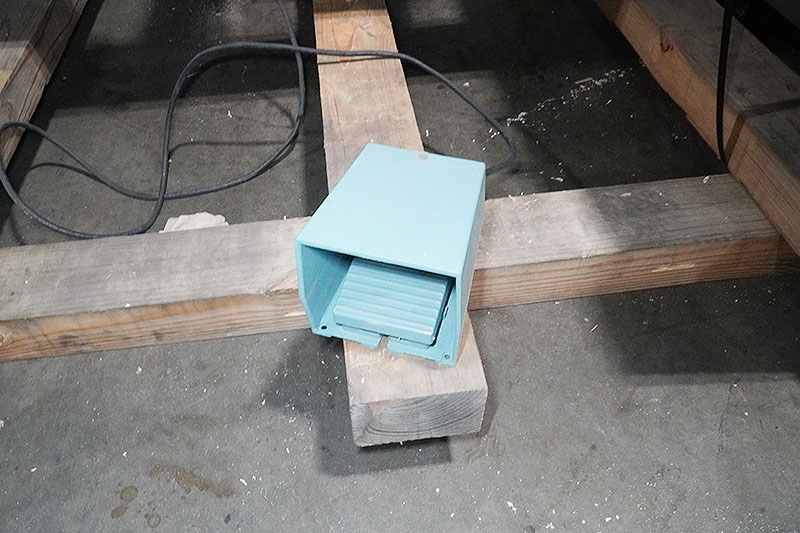

Equipped with foot pedal controls and side mounted control
panel.

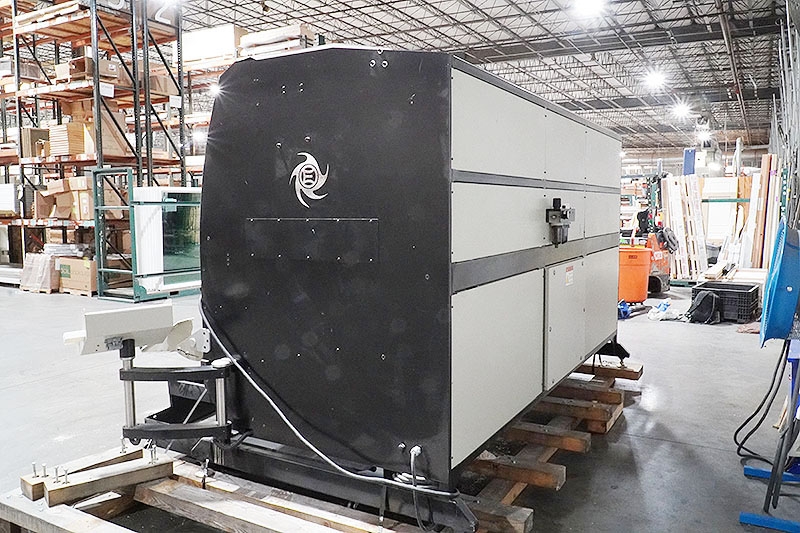

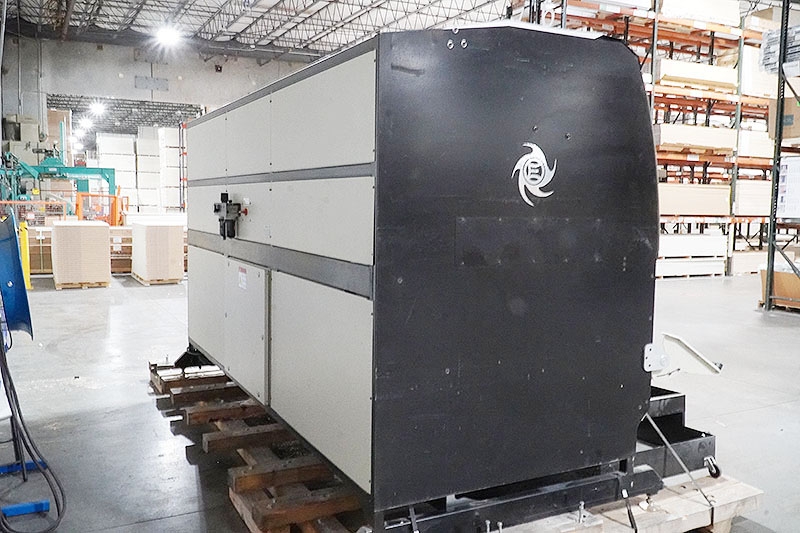

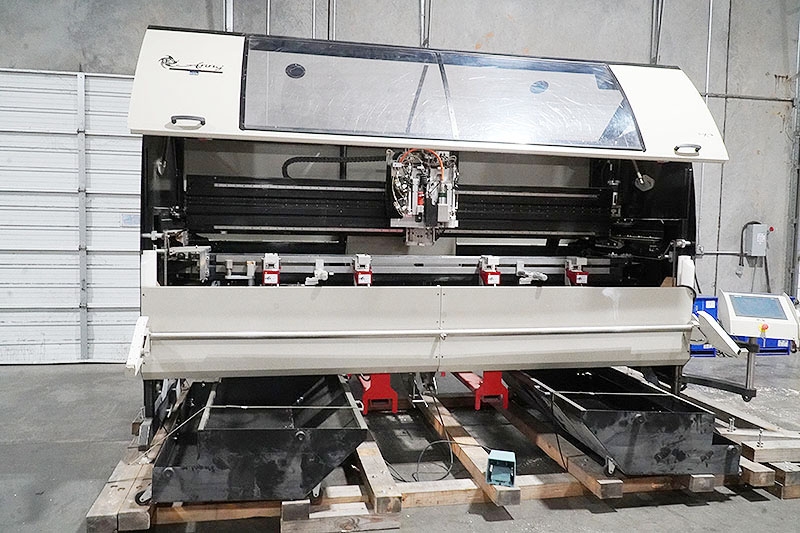

Fully enclosed design for minimizing operational risk and
reducing noise level in the shop.
Overall dimensions: 175" long x 83" wide x 108" high
(approx.)
Weight:
4750lbs (approx.)
