Year: 2018
Electrical: 400v, 60hz, 86.3amps, 3ph (includes Italweber 75kVa Transformer)

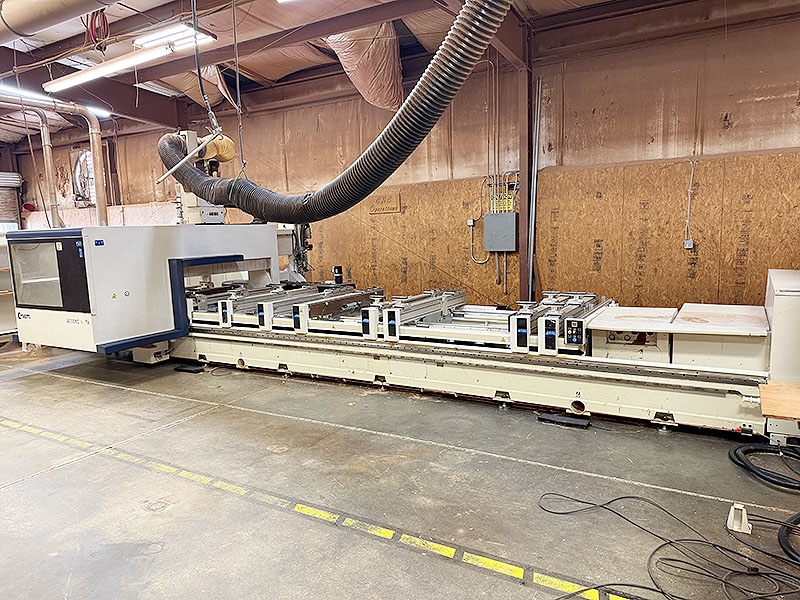

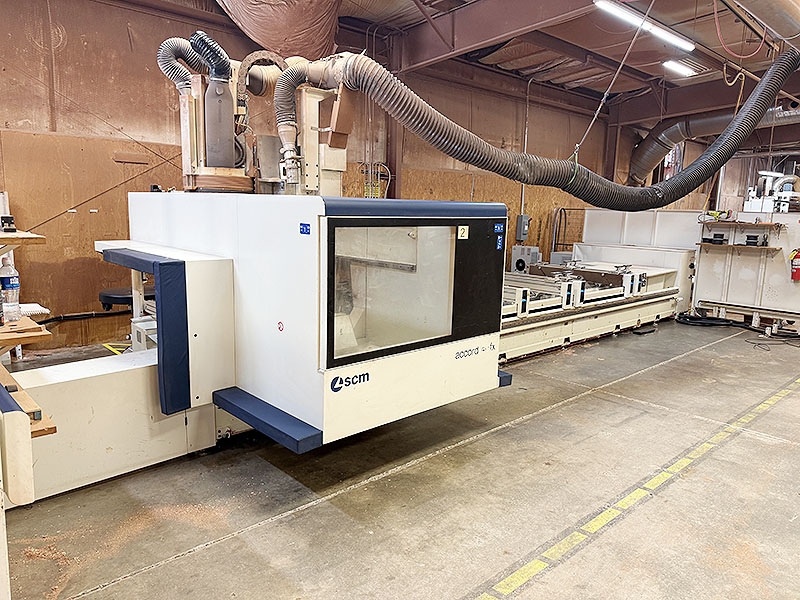

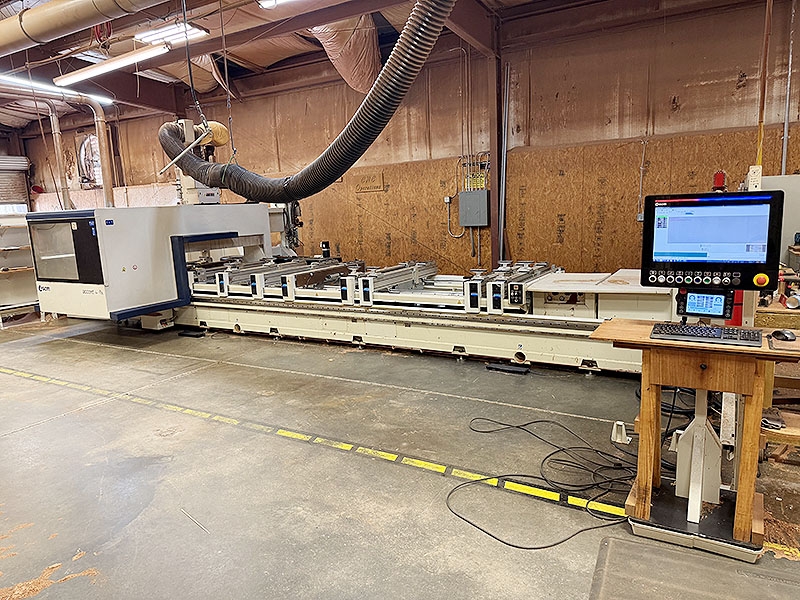

5-Axis CNC Router
X-Axis: 252" (approx)
Y-Axis: 63" (approx)
Z-Axis: 605mm / 23.8" (approx),

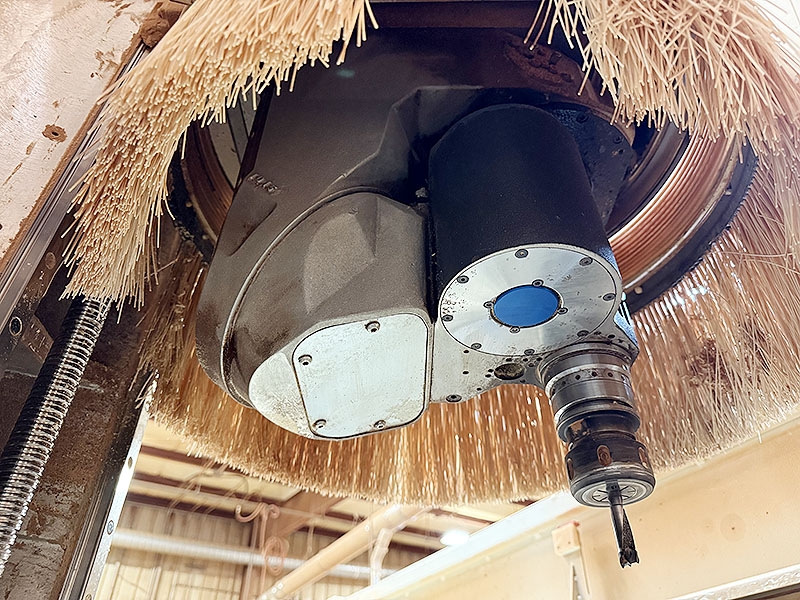

Equipped with Vector Axis: B-Axis (Tilt) and C-Axis (Rotation)
Equipped with RTCP (Rotary Tool Center Point).

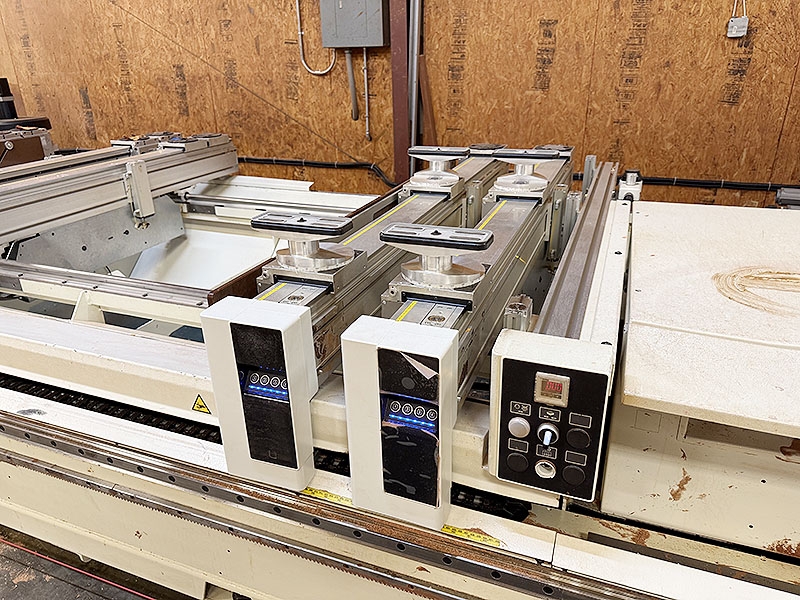

Worktable Type: Pod and rail type w/ (10) 65" long rails w/ assortment of vacuum pods.
Mach 5 tool changer

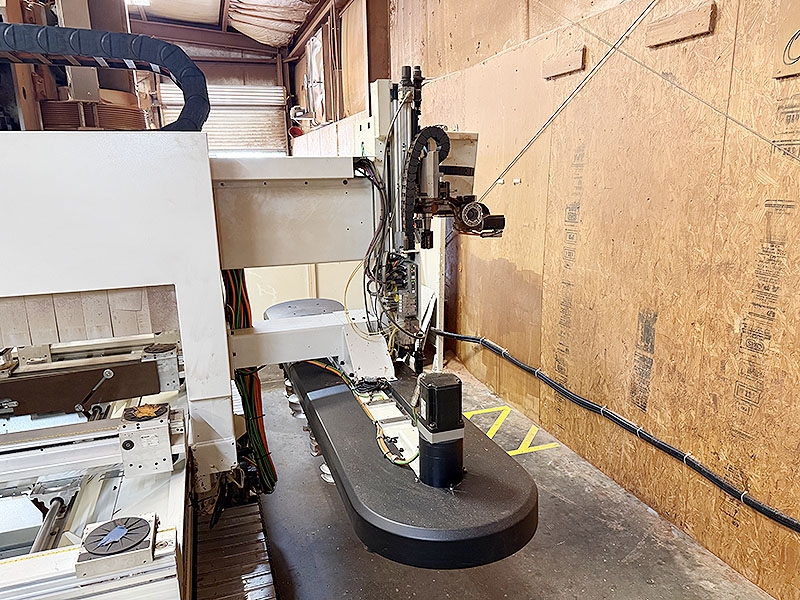

Equipped with 48-Position Automatic Tool Changer (ATC)
Tool interface: HSK63F
ATC Type: Ride Along Carousel
ATC Equipped with Shuttle Lift Station and Manipulator Arm for preloading the next two tools in the sequence for quicker took changes.

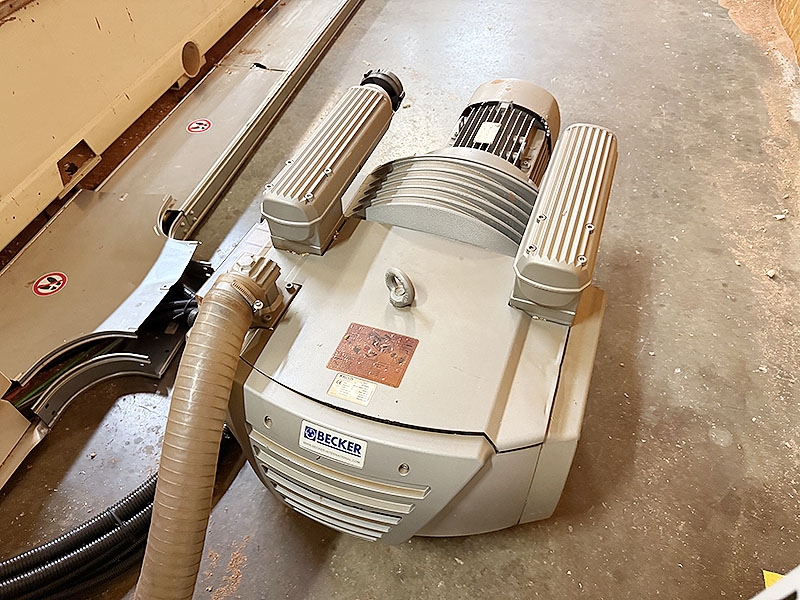

Equipped with (2017) Becker 6.4kW Vacuum Pump
Model: VTLF2.250/0-791
Sides of the machine are equipped with safety fencing. Front of the machine equipped with optical/laser safety switch.
Weight: 9400kg (approx)
Overall dimensions (when setup): 37ft long x 21ft deep x 11ft high (approx)
Auctioneer's Note: Please note that this machine does not include any tooling, tool holders, and dust extraction flex hose.
|
