New in 2023!
Approximately $330,000 When New
Minimum Double Sided Workpiece Size 3" X 3" (76mm X 76mm)
Maximum Double Sided Workpiece Size 84" X 84" (2,134mm X
2,134mm)
Top & Bottom Scoring Stations on Both Sides (2) Per
Side: 1.75 HP (1.3KW), 6,000 RPM
Top & Bottom Grooving Station on Right Side Only (2)
1.75 HP (1.3KW) 3,600 RPM

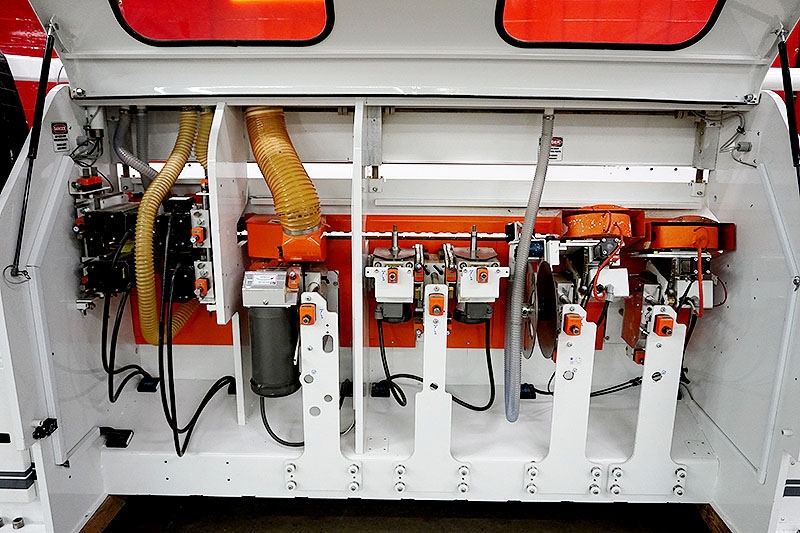

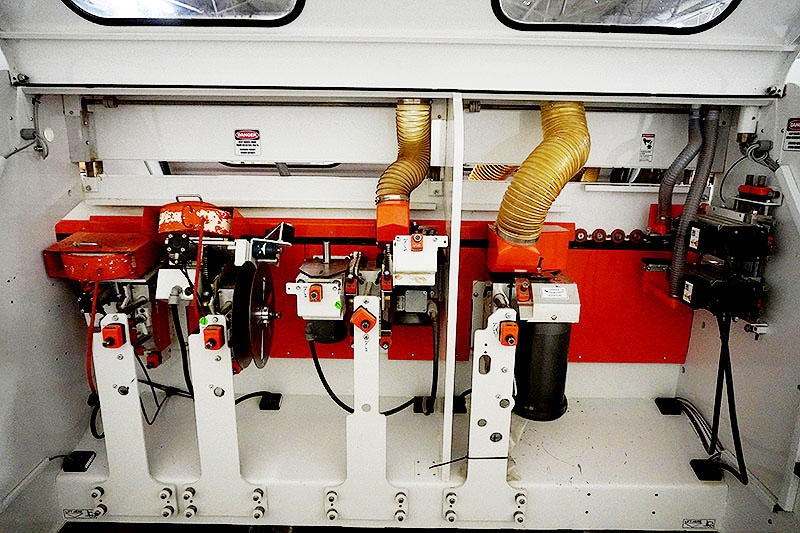

(1) Shaping Station on Each Side: 1 1/4" Diameter Spindles, 7
1/2 HP, 6,000 RPM Each
(2) - Spindle (Turbo) Sanding Stations on Each Side, .984"
(25mm) Spindles, .75 HP (.56 KW), 1,725 RPM Each
Foiling Section with Foil Supply Reel, (2) – Application
Stations w/ Applicator Wheels, & Film Take up on Each Side

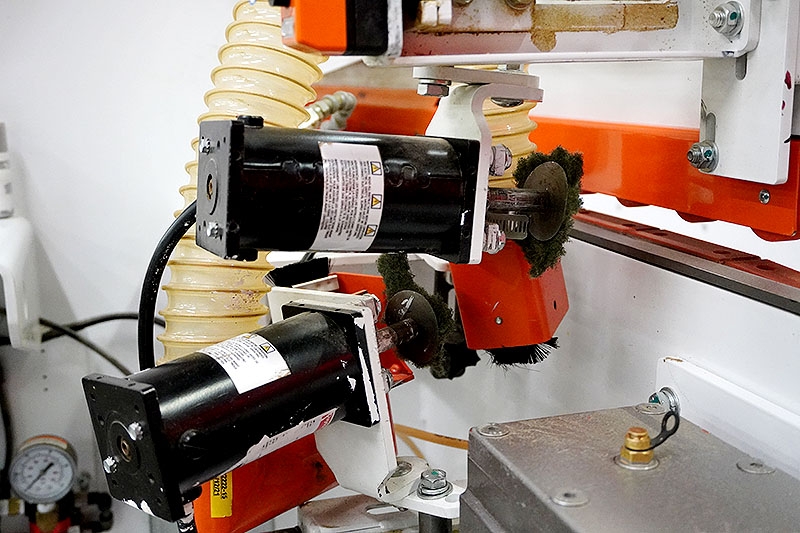

Top & Bottom Buffing (Post Cleaners) On Each Side, .12
HP (.18 KW) Each
Rubber Insert Feed Chain & Rubber Hold Down Wheels

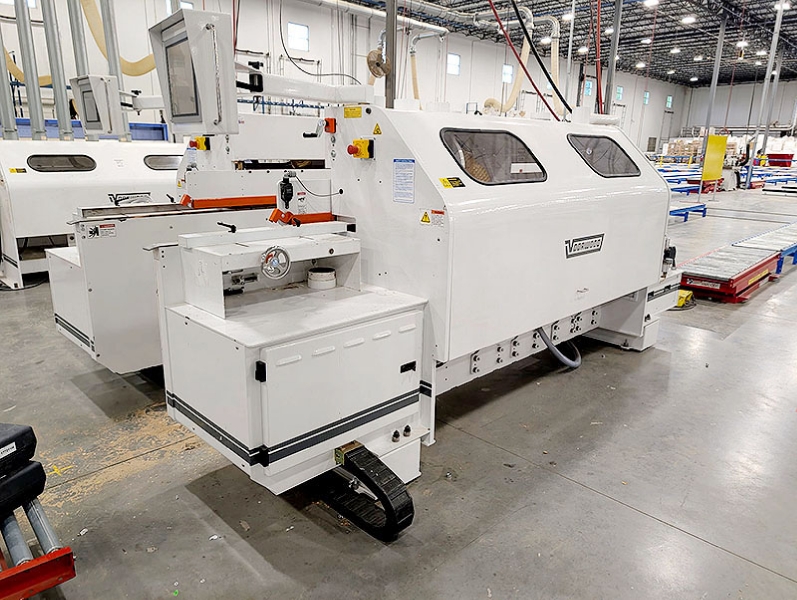

(Qty. 2) - Operator Touch Screens One Mounted on Swing Arm
Per Side
230/460 Volts
Shipping Weight Approximately 8,205 Lbs

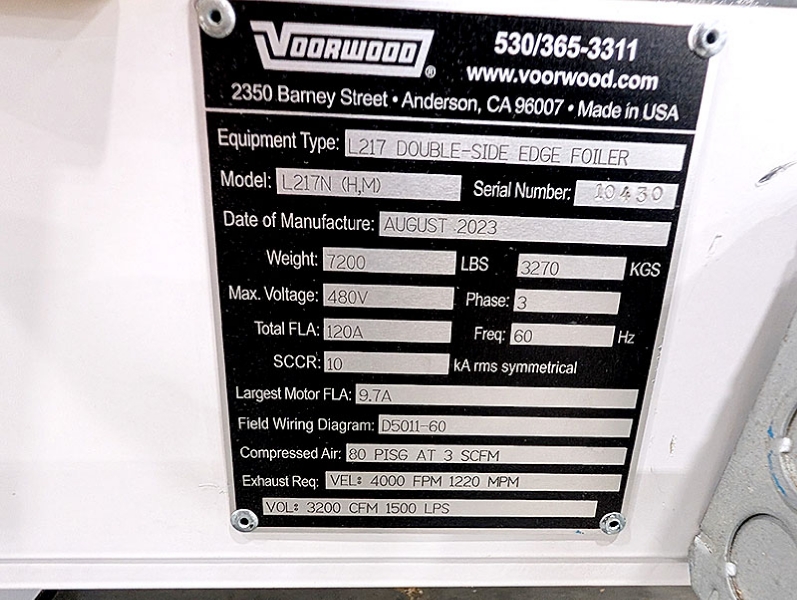

Serial #10430
