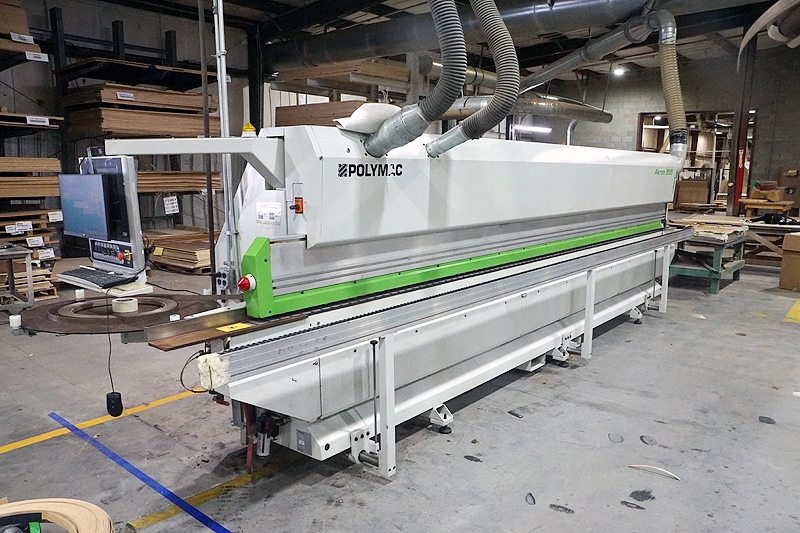

Model Akron 855
20 Kw, 230 volt three phase, 60 hz, 36 amps
(Machine is wired 460 volt three phase, 60 hz, 18 amps)
Machine weight 3,500 kg (7,716 lbs)
Left to right machine feed direction
Panel thickness 10 to 60 mm (0.393" to 2.36")
Coil edgebanding thickness 0.4 to 3 mm (0.015" to 0.118")
Strip edgebanding thickness 0.4 to 6 mm (0.015" to 0.236")
Min panel width 85 mm (3.3")
Min panel length 250 mm (9.84")
Feed speed 10/14/20 m/min

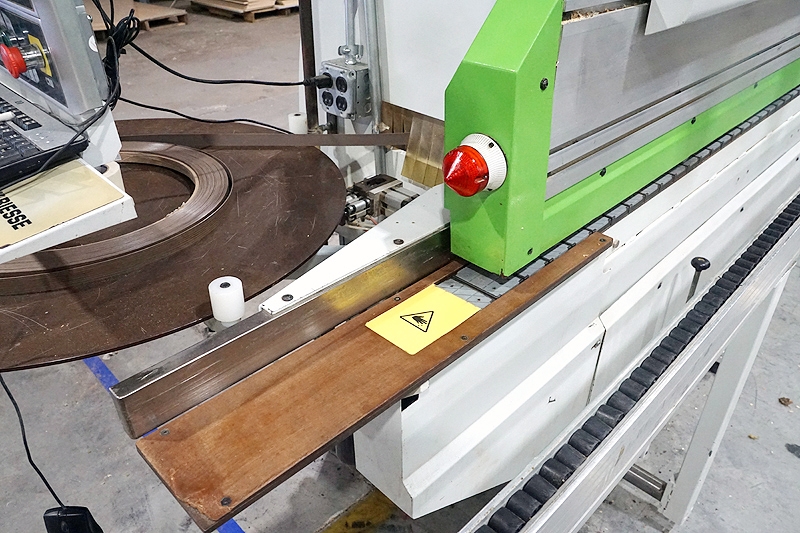

18" infeed load space
36-1/2" table passline height
1" high infeed fence
3" wide rubber padded table feed chain

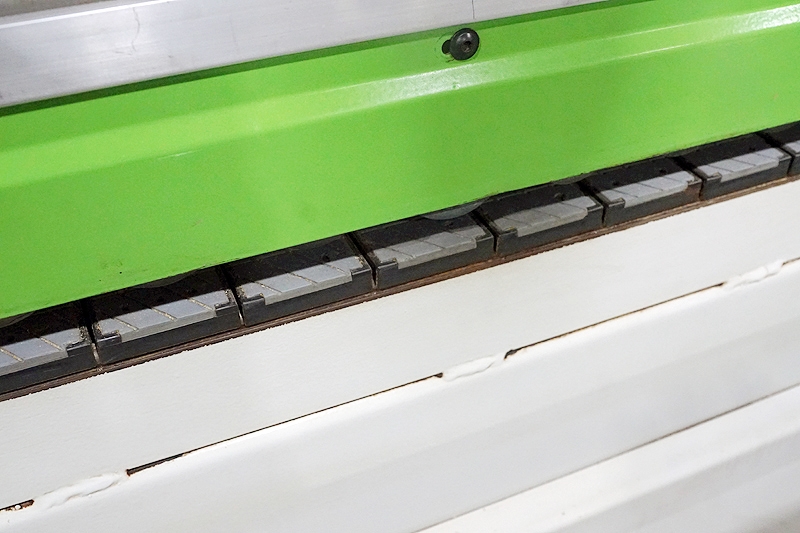

Power adjustable pressure beam with rubber hold down rollers
Roller top outboard panel support beam

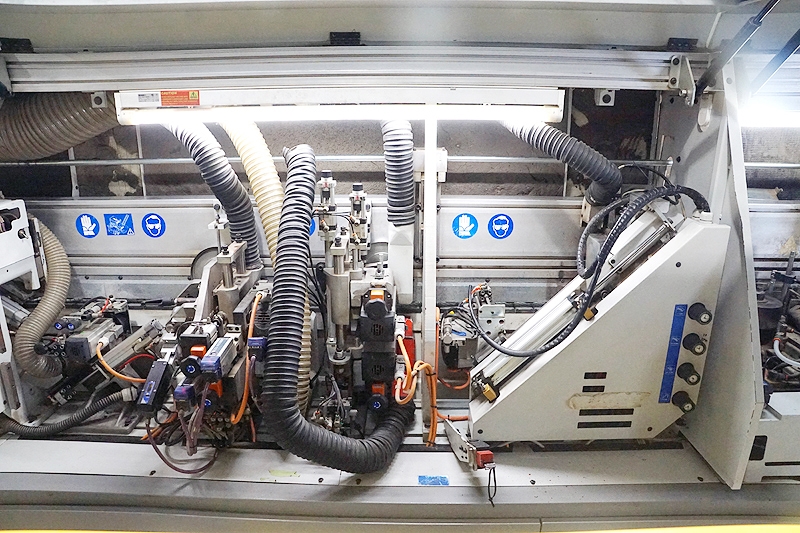

1st station: (2) motor counter rotating pre-milling unit
2.2 Kw, 12,000 rpm trimmers

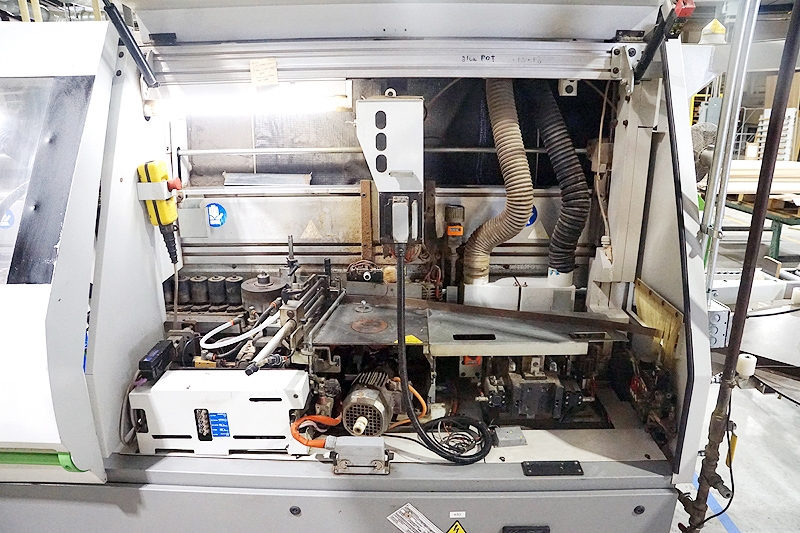

2nd edgebanding application
31" coil edgebanding tray
Pneumatic guillotine with 3mm PVC capacity
Bottom glue pot system (accepts pellet type glue)
(1) main and (5) aux pressure rollers
3rd station: front and rear end trimmer unit
0.75 Kw, 12,000 rpm trimmers
Swivel trimmer motors for bevel cutting
Pneumatic cylinder swivel of trimmers controlled from PLC
4th station: top and bottom flush trimmer unit
2 kw, 12,000 rpm trimmers

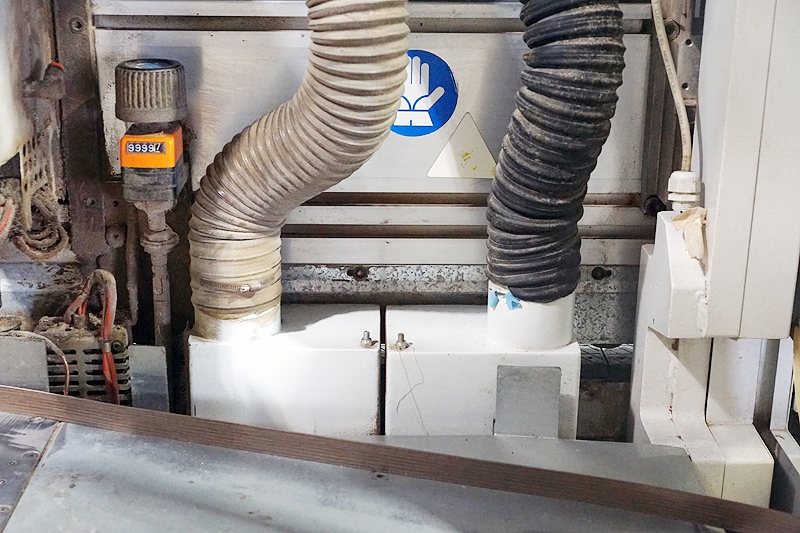

Mechanical digital readout for station set up
5th station: top and bottom tilting radius trimmer unit
1.5 Kw, 12,000 rpm trimmers
Servo motor control of station
Mechanical digital readout display for set up
6th station: (4) motor corner rounding unit
0.85 Kw, 12000 rpm trimmers
7th station: top and bottom radius scrapping unit
Mechanical digital readouts for station set up
8th station: top and bottom fine edge scrapping unit
9th station: top and bottom buffing unit
0.37 kw, 2,700 rpm
10th station: top and bottom electric heat reactor unit

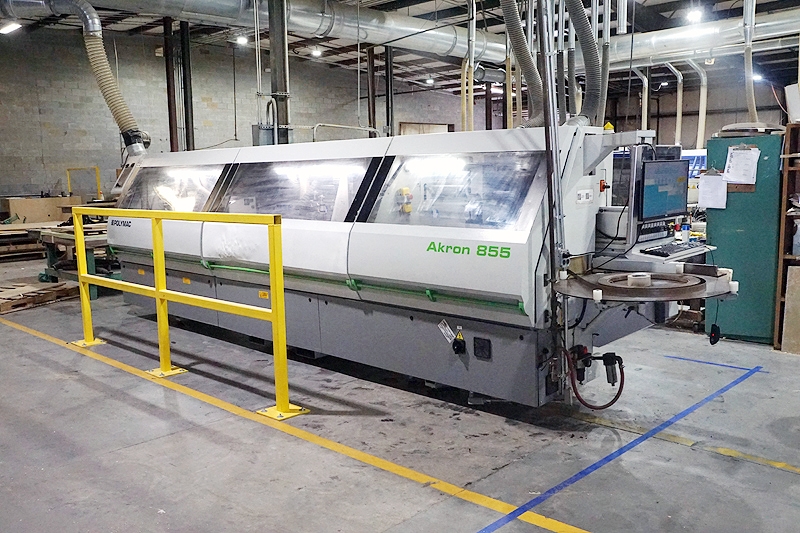

Sound and safety enclosure around all stations
Lift up access doors with inspection windows
2 kw feedworks drive motor
Power raise and lower of pressure beam

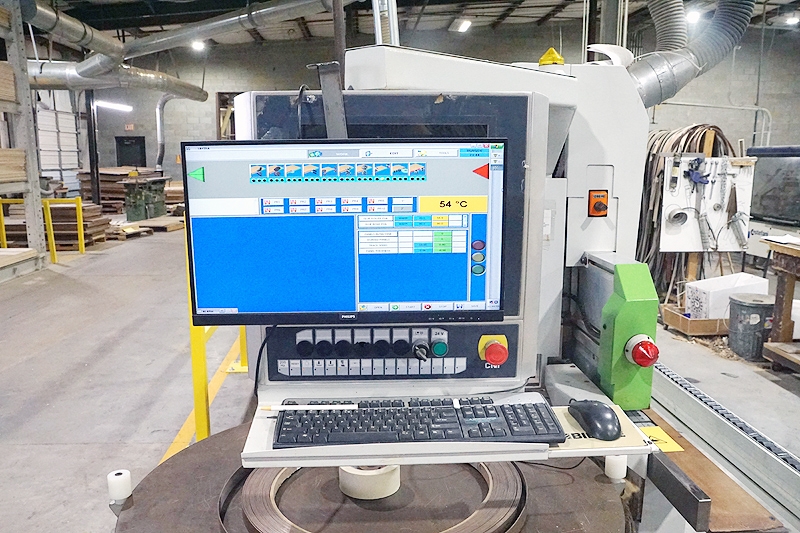

Front operator control station
Flat screen color monitor with keyboard and mouse
Includes the machine operators manuals, spare parts inventory, spare trimmer carbide insert inventory and spare (rebuilt) hot melt glue pot

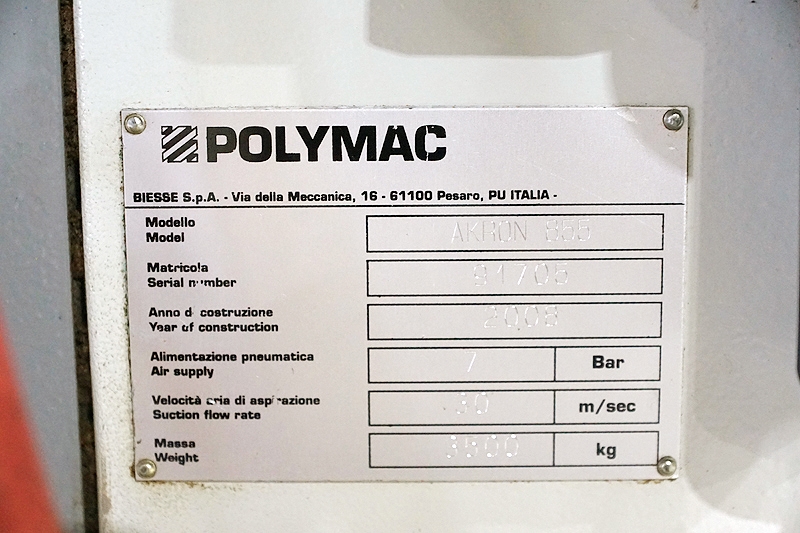

S/N 91705
