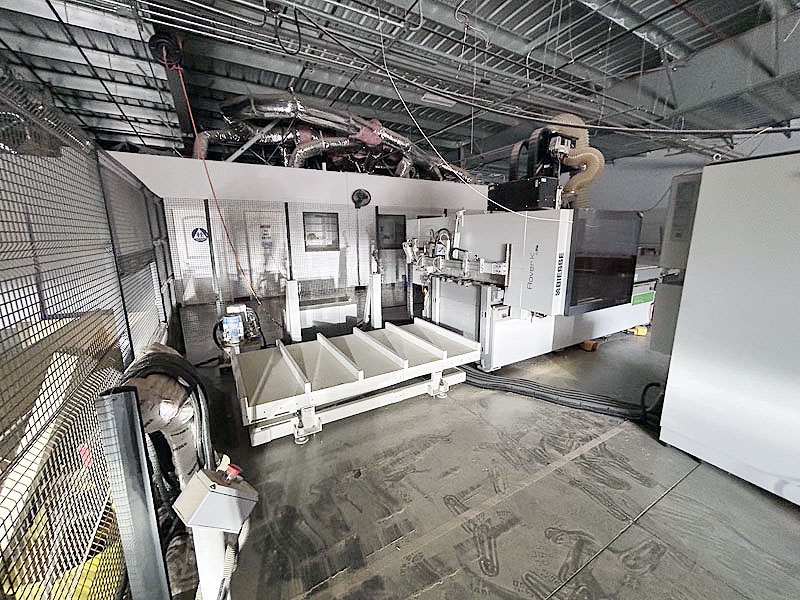

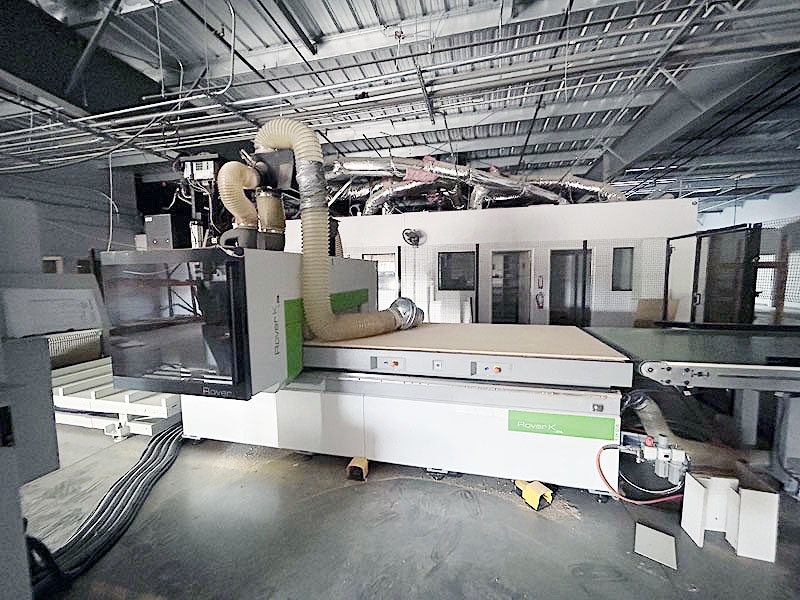

Basic Specifications:(See PDF File in Bidder's Applet for More Information)
Work Table Dimensions: 2,463 mm X 1,258mm (96.96" X 49.52")
9 KW (12 HP) Spindle w/ HSK F63 Coupling, Air Cooled
BH 10 Boring Head: (10) Vertical Independent Spindles: (5) Spindles in the X Axis & (5) Spindles in the Y Axis
Infeed by Scissor Lift, Automatic Loading & Unloading System (Sweeping Arm + Loading Vacuum Cups)
Movable Rack Tool Changer

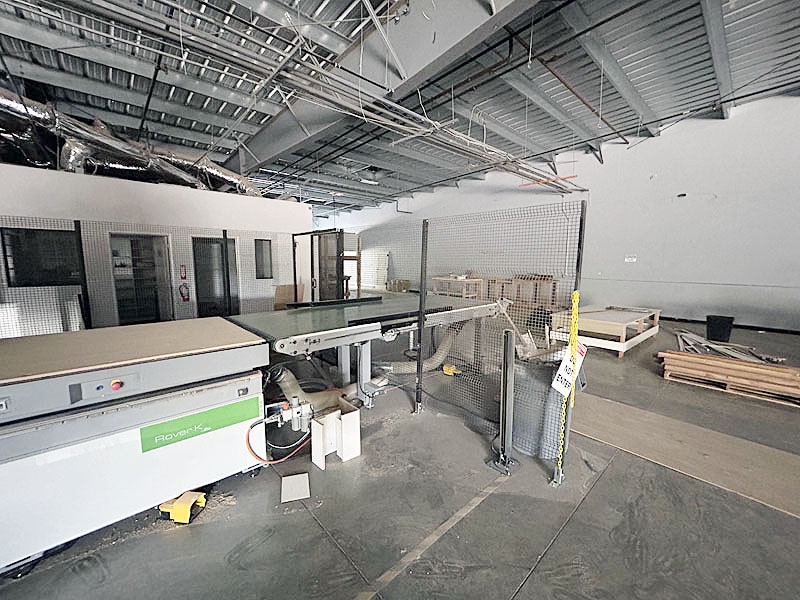

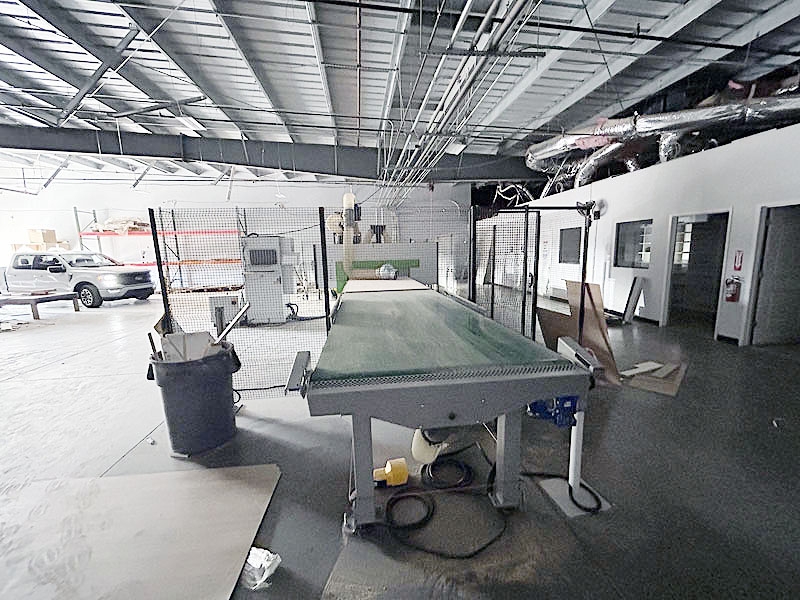

Sweeping Arm to Push Parts Onto Outfeed Conveyor Belt
Vacuum Pump 250 m3/h Rotary Vanes Vacuum Pump
S# 1000047309
