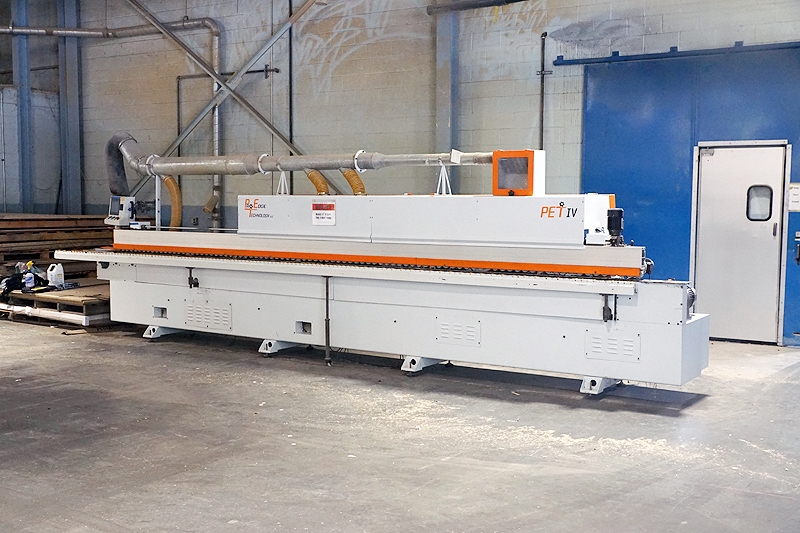

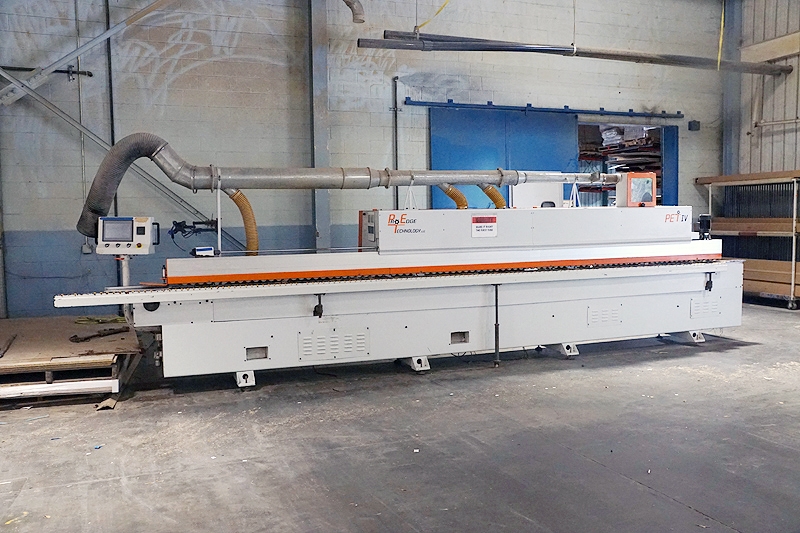

Model PET IV
220 volt three phase, 60 hz
Panel thickness capacity 10 mm to 60 mm (0.393" to 2.362")
Min panel length 125 mm (4.92")
Min panel width 100 mm (3.93")
Edgebanding width 12 mm to 65 mm (0.472" to 2.55")
Edgebanding thickness 0.4 mm to 3 mm (0.0157" to 0.118")
Feed speeds 12/16/20 m/min
Overall foot print of the machine 7100 mm x 1000 mm x 1600 mm
Machine weight 2500 Kg (5,511 Lbs)
Table passline height 38"
Infeed load space 20"
3" wide rubber padded table feed track
Adjustable pressure beam with mechanical digital display and rubber pinch rollers
Outboard roller top panel support beam
1st station: (2) counter rotating pre-milling unit
2.2 Kw, 12,000 rpm drive motors
Segmented cutterhead and mechanical digital display for station set up
2nd station: edgebanding application
Coil or strip feed capacity
Pneumatic edgebanding guillotine with 3 mm PVC capacity
Bottom hot melt glue pot system (accepts pellet type glue)
(1) main and (3) aux pressure rollers
3rd station: front/rear trimmer unit
0.37 Kw, 12,000 rpm trimmers
Trimmer head bevel cutting capacity
4th station: top/bottom tilting radius trimmer unit
1.1 Kw, 12,000 rpm trimmers
Mechanical digital displays for station set up
5th station: top/bottom non-tilting trimmer unit
1.1 Kw, 12,000 rpm trimmers
Mechanical digital displays for station set up
6th station: (2) motor corner rounding unit
0.37 Kw, 12,000 rpm trimmers
Mechanical digital displays for station set up
7th station: top/bottom radius scrapping unit
8th station: top/bottom fine scrapping unit
9th station: top/bottom Leister edgebanding heat reactors
10th station: top/bottom buffing unit
0.37 Kw, 1400 rpm buffer motors

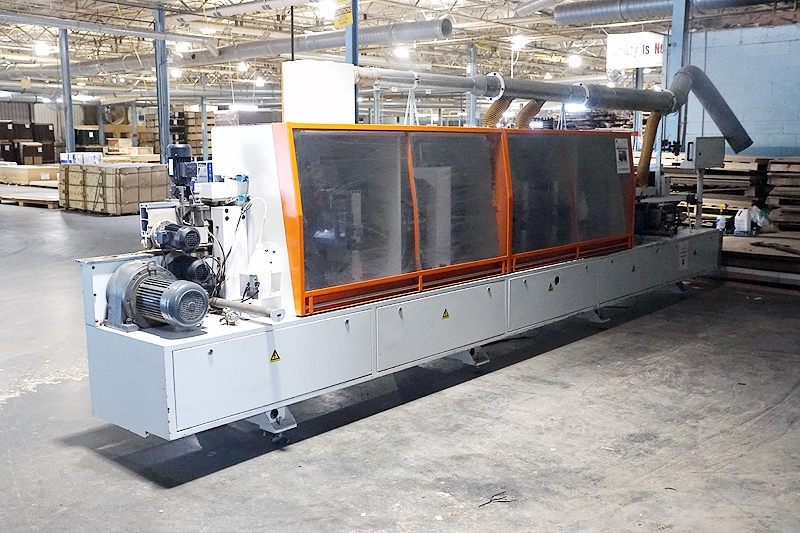

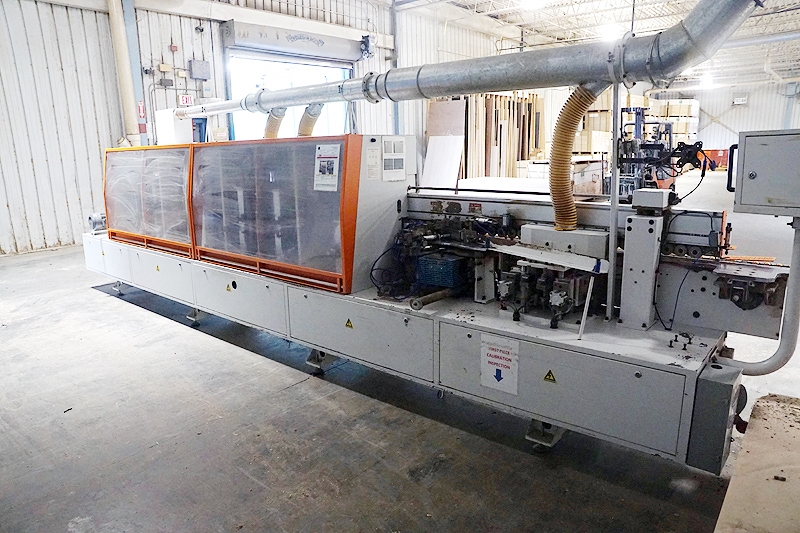

Sound and safety enclosure around stations 3 through 9
Lift up access doors hood doors
5 Hp feedworks drive motor
Front operator control station
MCGS color touch screen display controller
Top mounted dust collection manifold with 8" diameter inlet pipe size
Includes the machine operators manual
