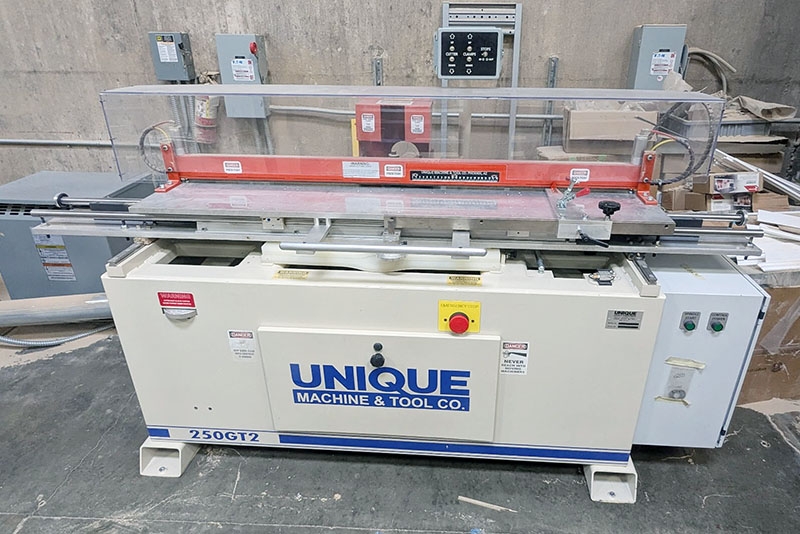

One Piece Welded Frame is precision machined
Variable Speed Direct Drive 10 H.P. Shaper Motor
Three Position Turret for quick change over between profiles
Highly visible guards, protective clamp bar & poly-carbonate shield keep the operator protected
Free Floating table allows for climb and conventional cutting to achieve best possible finish
X axis movement of table guided by hardened Thomson shafts with linear bearings
Y axis movement is guided by THK Rails & reciprocating ball bearings
Two position pneumatic stop system positions automatically when cutters are selected
Positioning scale allows for accurate centering of arched panel & rail
2" Maximum arch height, 55" maximum rail length
s/n 1798230250GT2
Year: 2023

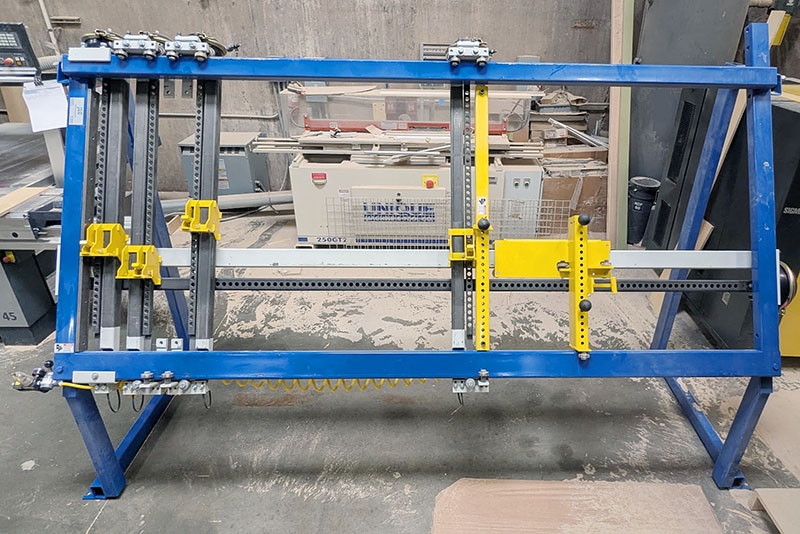

JLT 717A-DDC (8') Double Door Clamp (2023) (Unused)
Seller purchased this machine new in 2023 for $9,135!
Model # 717A-38V-96H-HD-DD-L-M1
96" wide by 38" tall approx. Clamping Capacity
Approx. Machine Footprint: 116" L x 70" H x 44" W
(4) Vertical Clamps and (1) Horizontal Clamp with a large cylinder
JLT Trident Pin System for quick and efficient changeovers between door sizes
Removable Center Squaring Bar to allow for clamping of larger doors
Heavy Duty Jaws for Corner Pressure
Year: 2023

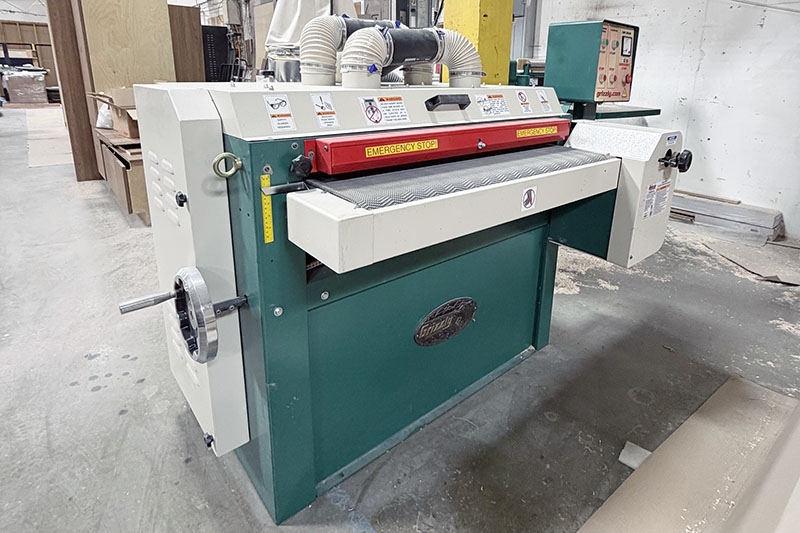

Grizzly G0450 (37") Variable-Speed Drum Sander (2022)Model: G0450
Main Motor: 15HP, 240/480 Volt, 3 phase, 60hz
Feed Motor: 1/3 HP, 240/480 Volt, 3 phase, 60hz
Full Load Amp Draw: 43A at 240 volt
21.5A at 480 volt
Minimum Workpiece Width: 2"
Maximum Workpiece Width: 36-1/2"
Minimum Workpiece Thickness: 1/16"
Maximum Workpiece Thickness: 4"
Sandpaper Width x Length: 6" x 138"
Conveyor Feed Rate: 6-18 FPM
Sandpaper Speed: 2800 FPM
Dust Ports: 4 x 4"
Weight: 1143 lbs
Year: 2022
Serial # 2204166
