*New cost in 2014 was $165,728 + $12,783 for the extra back up spindle for a total of $175,511 see invoice when new (PDF file in bidder's applet for details)

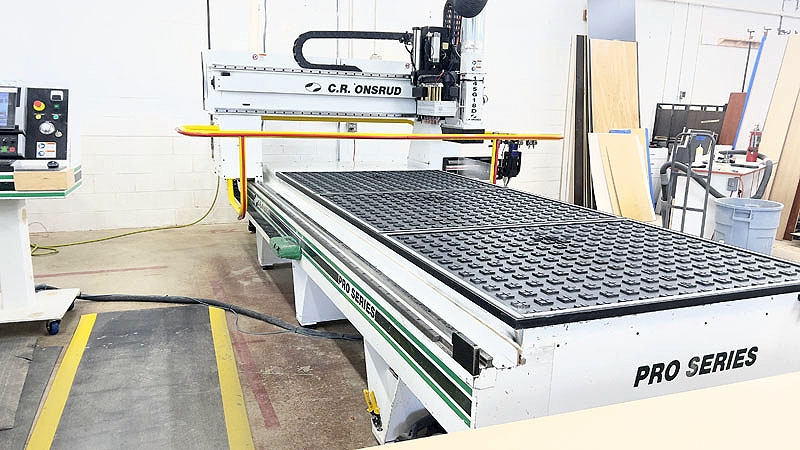

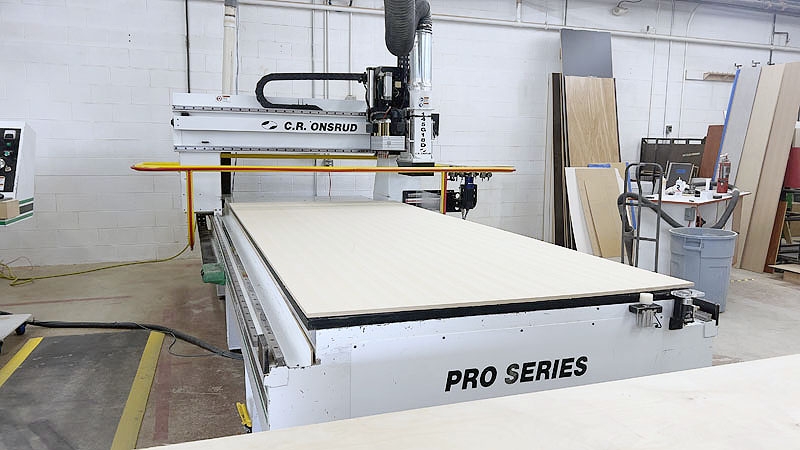

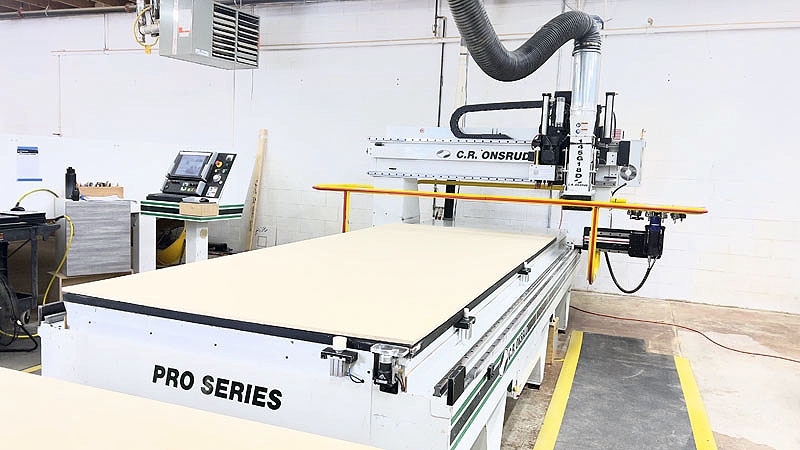

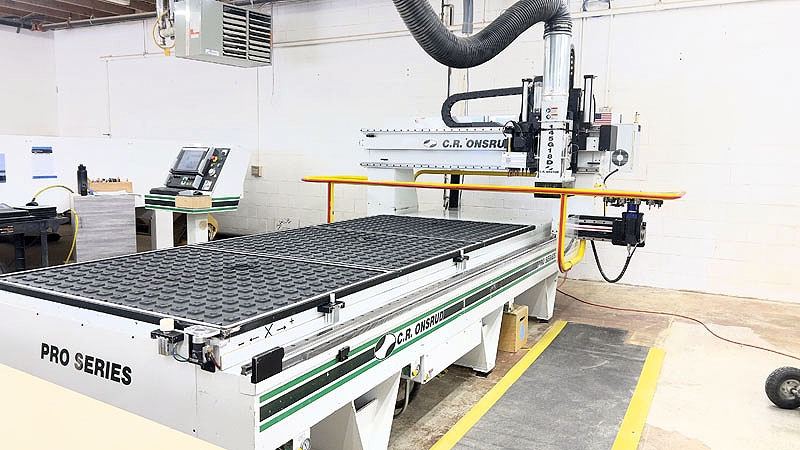

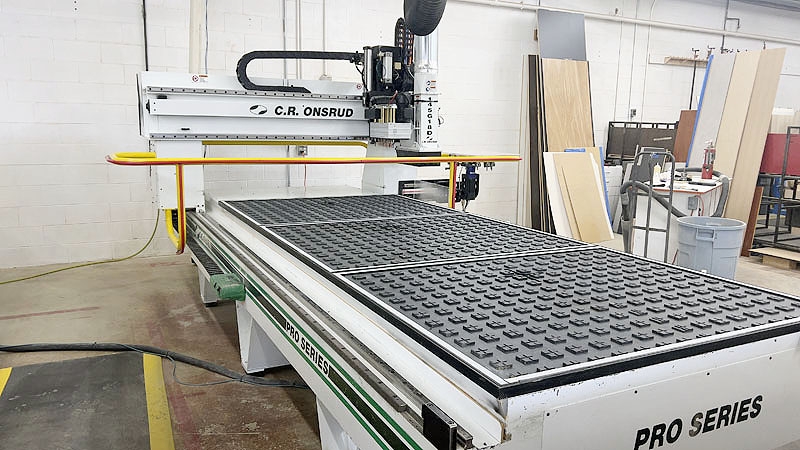

5' X 12' Flow Through Spoil Board Table
(1) 18 HP Router Spindle HSK 63 Type
(1) 14 Spindle Drill Bank: (10) Spindle in the X Axis & (5) Spindles in the Y Axis (1) Shared Spindle
(12) Position Dynamic Side Mounted Automatic Rotary Tool Changer
OSAI PC Front Series 10/510i System Controller
11" Z-Axis Stoke
(3) High Flow Vacuum Zones
(3) Pneumatic Controlled Pop-Up Perimeter Positioning Pins
(1) Solenoid for Pop-Up Pin Control
(1) Pneumatic Controlled Vacuum Table Switch
20 Amp, 440 Volt, 3 Phase, 60 HZ
Serial #145G141002

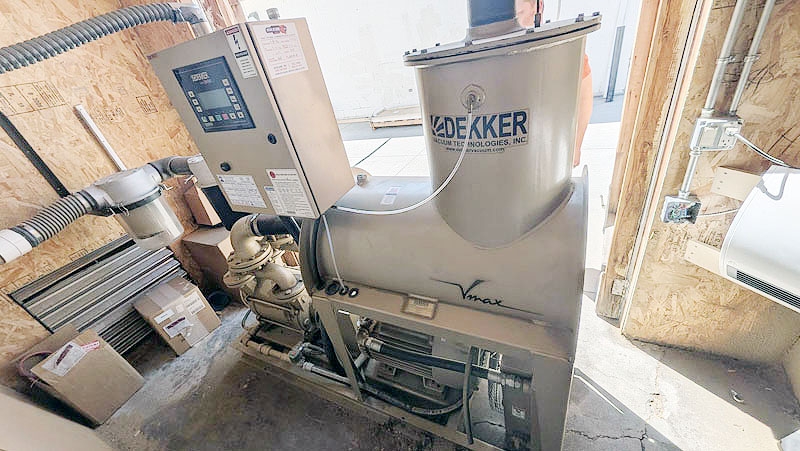

Dekker VMX0553KA1-00 Vacuum Pump (2018)
Serial #29028

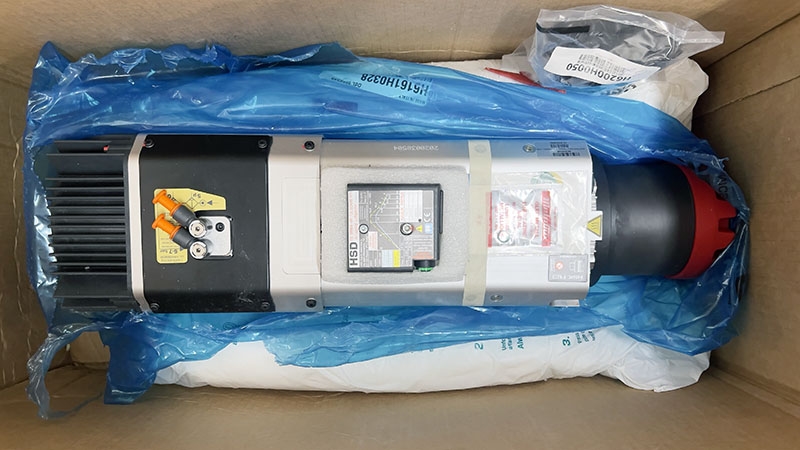

C.R. Onsrud HSD ES988 (Unused Extra Back Up) Long Nose Spindle
Serial #AH6161H0328
