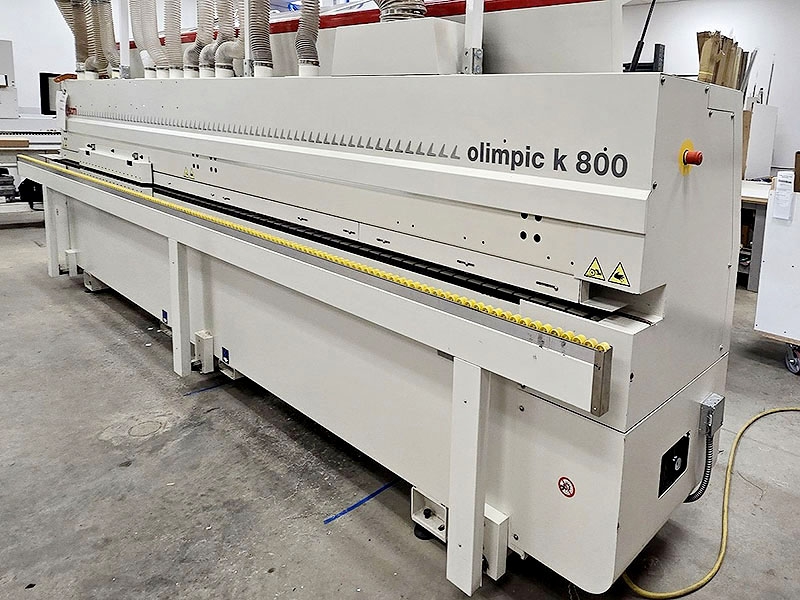

Technical specifications
- Edgeband Thickness: .4 mm to 12 mm
- Panel Thickness: 3/8" min to 2-3/8" max
- Min. Panel Length: 5-1/2"
- Min. Panel Width: 2"
- Min. Distance Between Panels: 24"
- Guillotine Capacity: 3 mm
- Feed Speed: 40 and 60 FPM

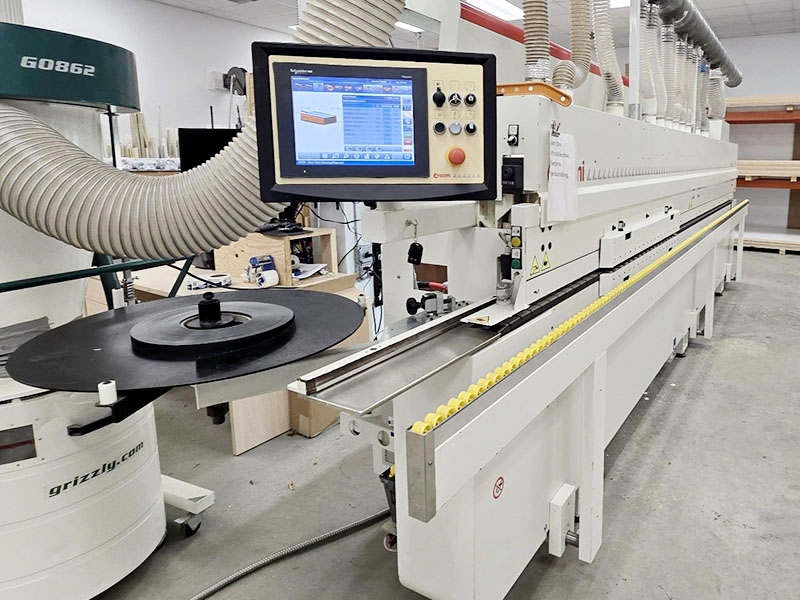

- "Startouch" Electronic Controller
- Digital Inverter for Electronic Motor Braking
Station Ordering:
• Infeed Fence with Mechanical Digital Indicator and Pneumatic Panel Spacing to prevent feeding the panels from getting close to each other.
• Anti-Adhesive Unit prior to Pre milling unit to prevent the buildup of glue
• (2) 3 HP ea. Pre-Milling Stations
• Quick Melt Glue System with Glue Pot
• Servo Drive Pressure Section 1 Driven Roller and 3 Idle Rollers
• Strip Feed Magazine
• Electronic Positioning of Top Pressure Beam

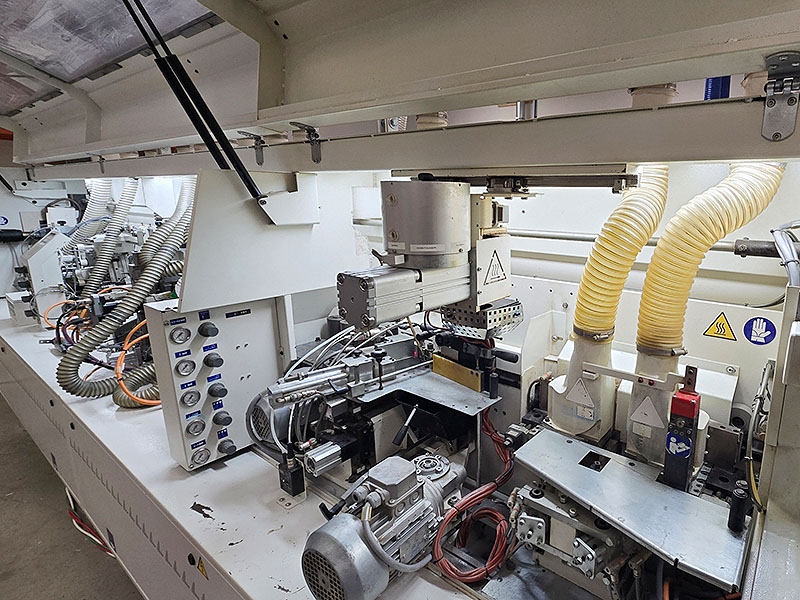

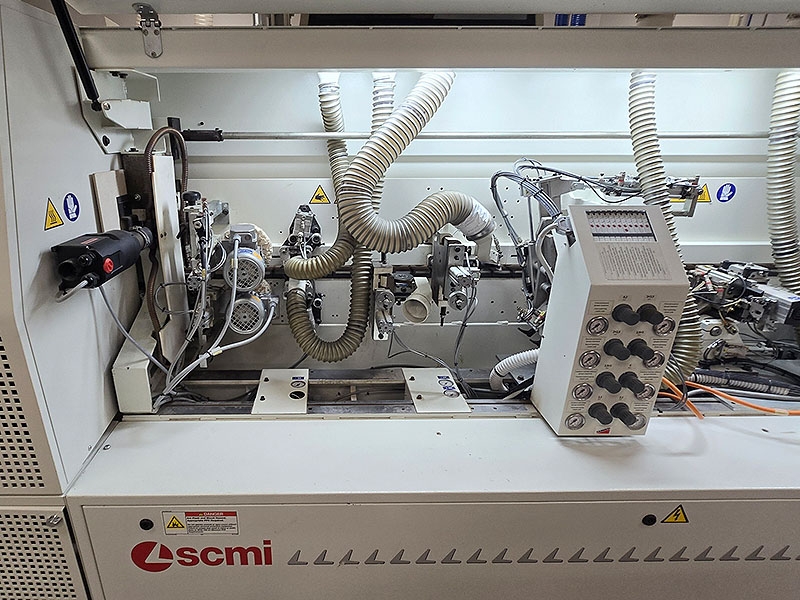

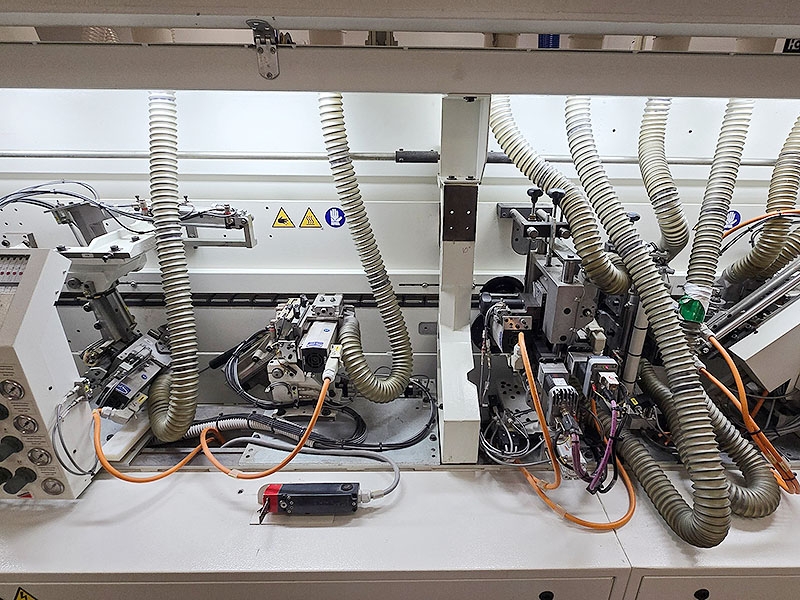

• 1st Station: Front and Back End Trim Station with (2) Independent .50 HP Motors
• 2nd Station: Top and Bottom Flush Trim (2) 1 HP 12,000 rpm Motors with 2 Position Pneumatics
• 3rd Station: Top and Bottom Trimming (2) 1 HP 12,000 rpm Motors with Servo Control
• 4th Station: Corner Rounding Unit with (2) .80 HP Independent Motors
• 5th Station: Top and Bottom Profile Scrape Station for 3 mm PVC with Pneumatic In/Out Positioning
• 6th Station: Top and Bottom Glue Scraping Station
• 7th Station: Tiltable Top and Bottom Buffing Units (2) .25 HP Motor
• 8th Station: Hot Air Blower
- 230 volt, 3 phase, 60 hz
- Serial # AH / 119448
