New in February, 2014

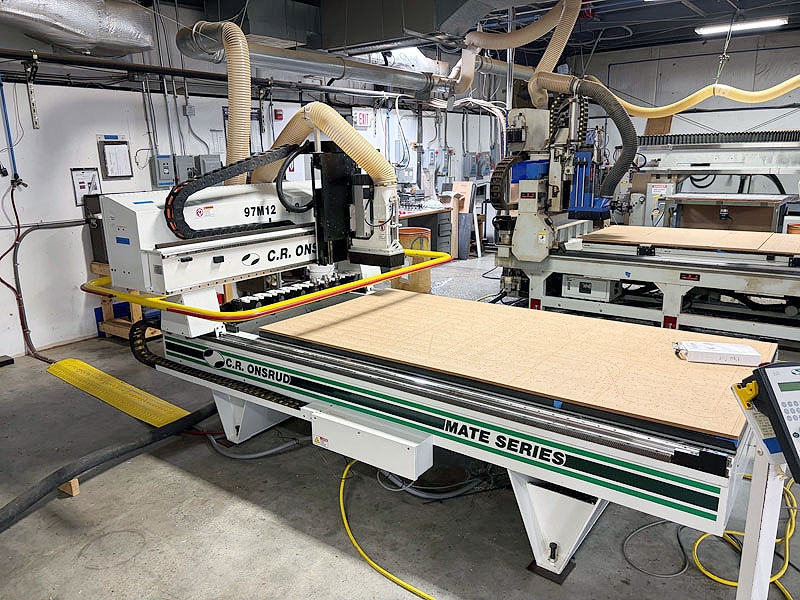

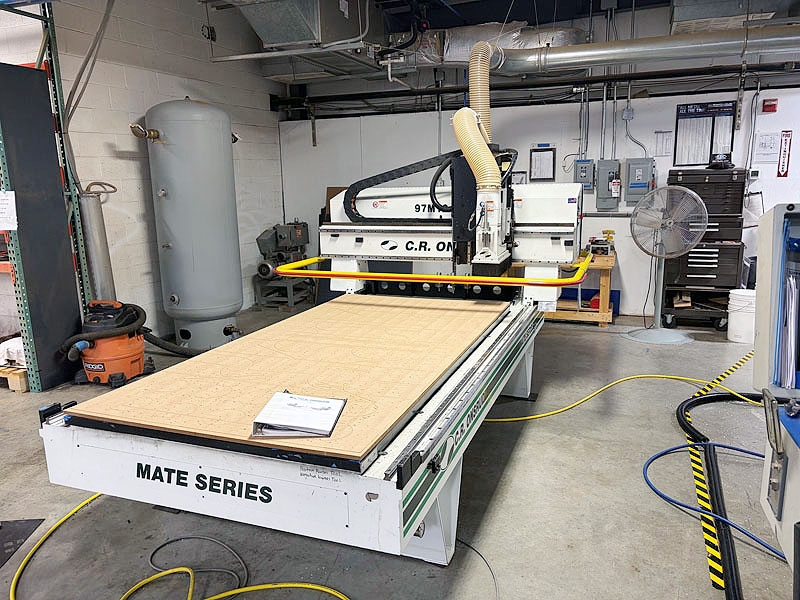

C.R. Onsrud 97M12 CNC Router "Mate Series"
(3) Axis Moving Gantry CNC Router
Nominal 4' X 8' Table (Actual Size 97" X 49")

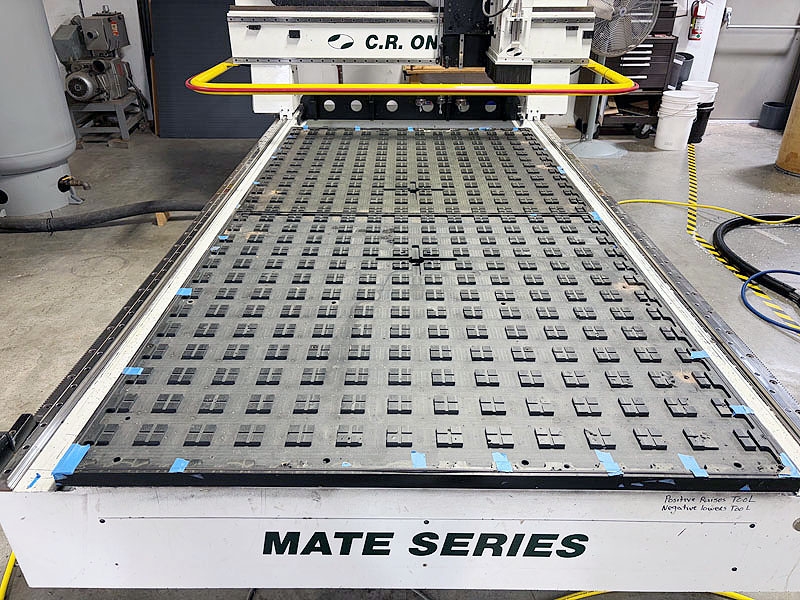

Onsrud Universal High Flow Vacuum Table System for flow-through spoil boards and dedicated fixtures

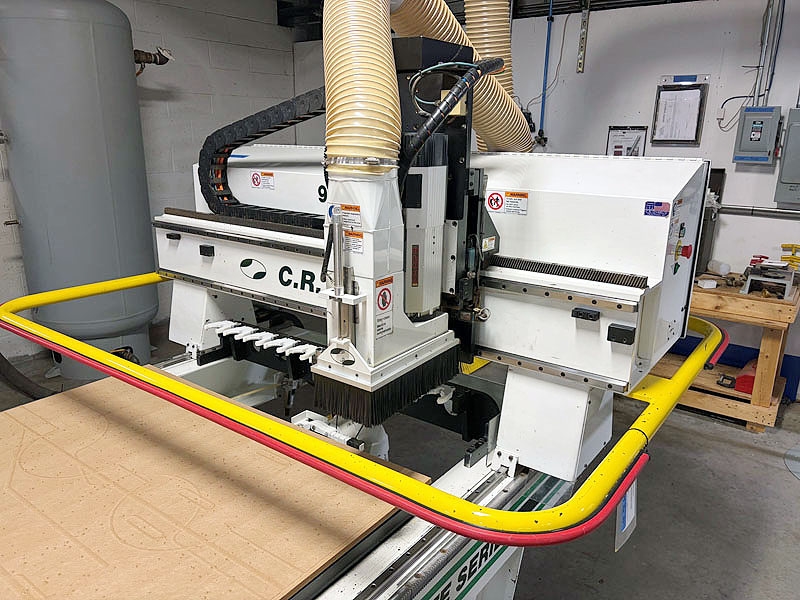

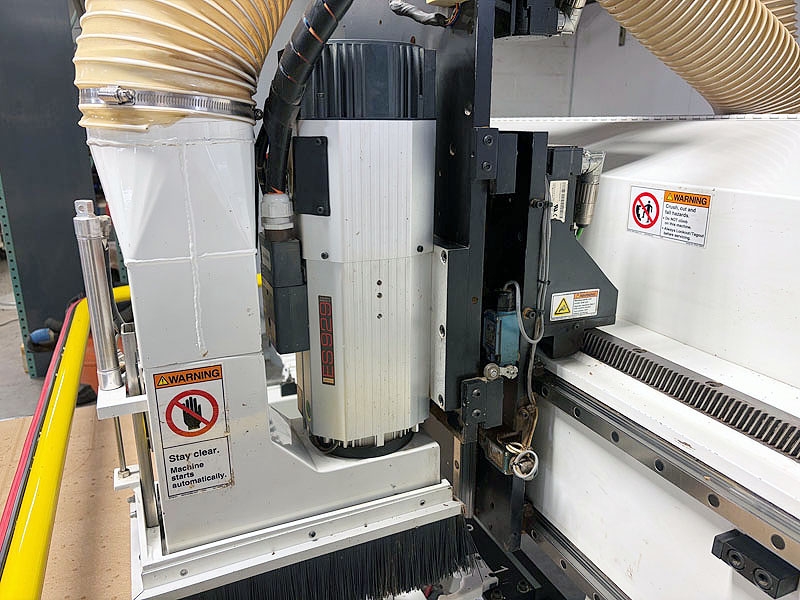

(1) Router Head (HSD Mechatronics ES 929 4-Pole Spindle) 12 HP, 24,000 RPM Fully Programmable, Variable Speed,
Reversible, Capable of Routing & Drilling, Uses HSK 63 Tooling, Integrated Dust Transition System & Dust Extraction Hood

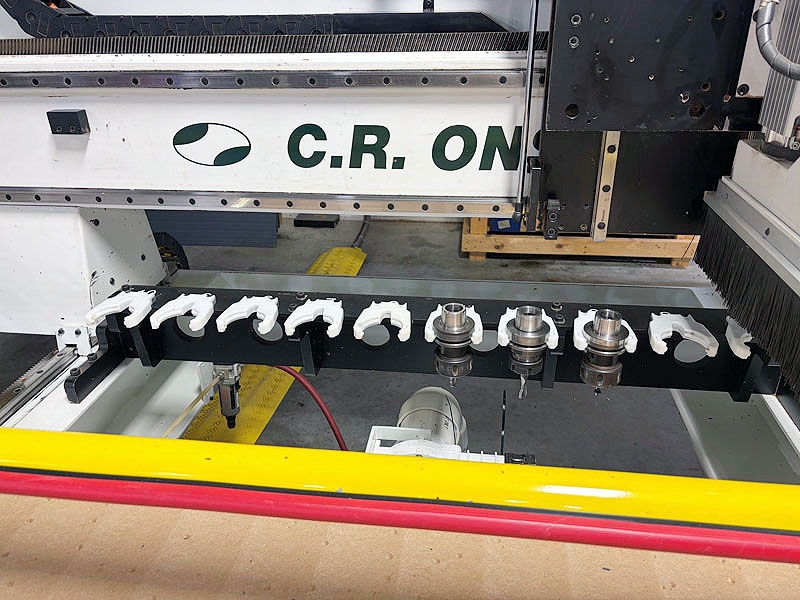

(10) Position Fixed Rack Automatic Tool Changer
Machining Speed 1,400 IPM X & Y Rapid Traverse 2,500 IPM
440 Volts, 3 Phase, 60 HZ

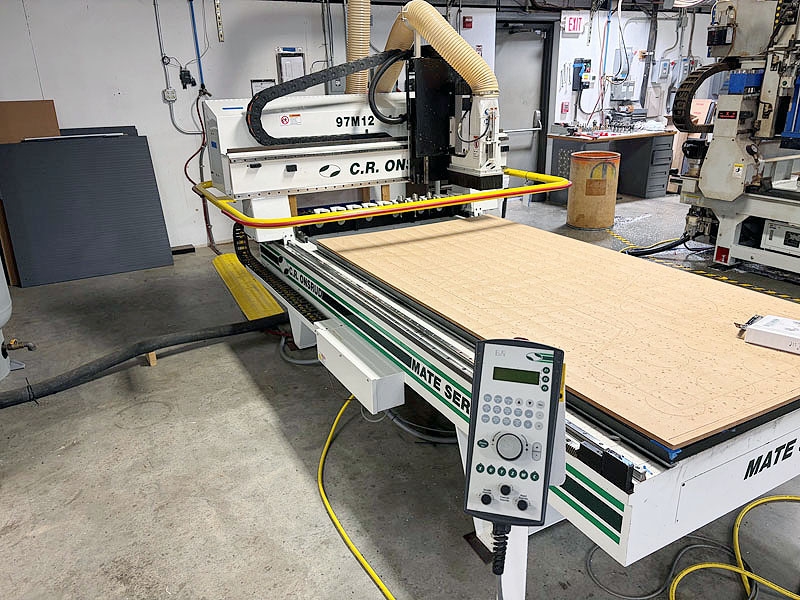

Bernecker & Rainer Pendant CNC Controller

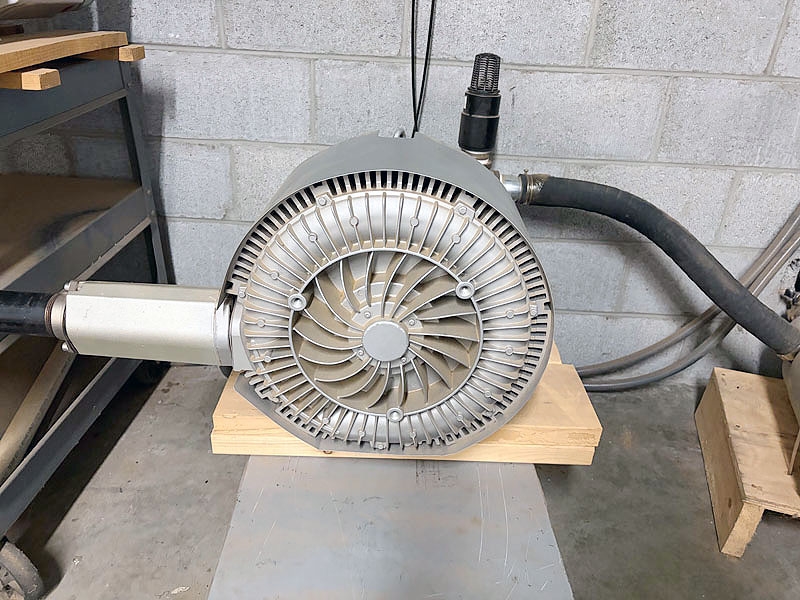

Airtech Vacuum Pump 8.6KW (11.5HP), 3,460 RPM
Machine Footprint Approximately 15' Long X 8.5' Wide X 7.6' Tall
Serial #097G140202
