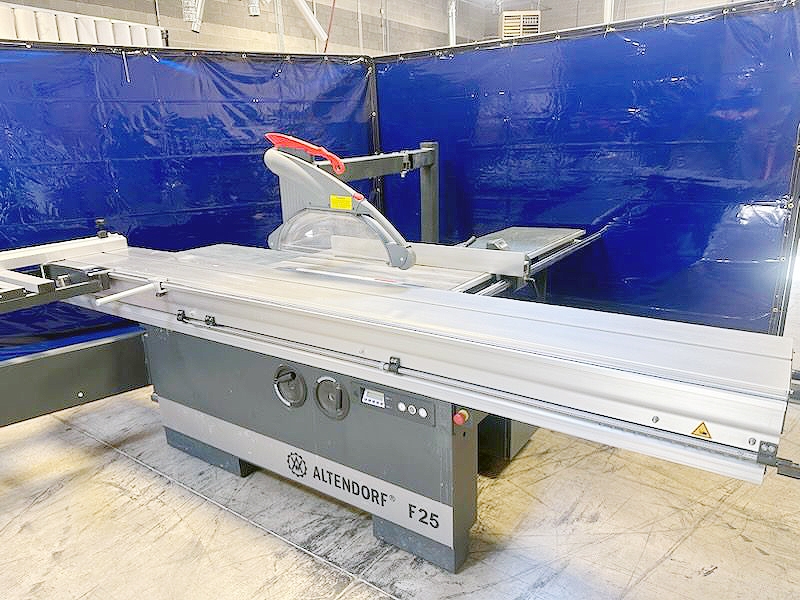

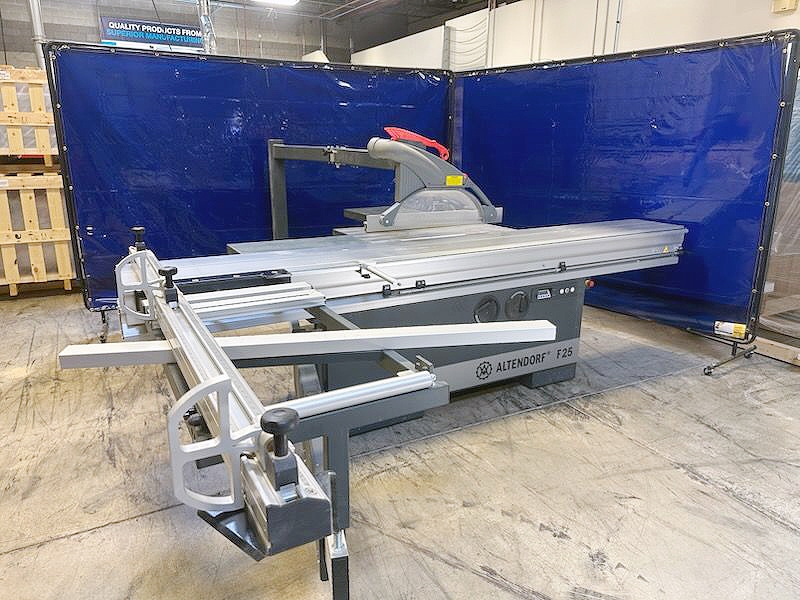

5.5 KW (7.5 HP) Main Motor, 3,600 & 4,200 RPM
Scoring Blade with Manual Adjustment (LED Illumination for Scorer)
Crosscut Miter Fence with Angles to 49 Degrees and Stops to 135.8"
Manual Rip Fence 55" with DIGIT X
Max. Blade 315mm (12.4") Diameter 72 T Sawblade, Max. Blade Width 5mm (.02"), Arbor Diameter 30mm, Pin Holes 2 x 10mm @ 60mm Centers & Split Scoring Blade
Tilting Range 0-46 Degrees (Towards Rip Table)
Saw Blade Projection: 90 Degrees with Max Diameter Blade, 100mm (3.9") Cutting Height, +45 Degrees with Max Diameter Blade 70mm (2.75" Cutting Height, 90 Degrees with 300mm Diameter Blade 92mm (3.6") Cutting Height, +45 Degrees with 300mm Diameter Blade 62mm (2.4") Cutting Height
Scoring Unit: .37KW (.5HP), 8,200 RPM, Scoring Unit 2 Axis Adjustment, Scoring Blade 120mm (4.7") Diameter, Adjustment Range 3-3.8mm (.118-.15")
Sliding Table Length 3,200mm (125.9"), Cutting Length 3,100mm (122")
Crosscut Fence: Cross Cut Mitre, Maximum Length 3,450mm (135.8")
Ripping Capacity 1,410mm (55.5"), Manual Adjusting, Digital DIGIT X Readout
Services: 220 Volts, 3 Phase, 60 HZ. Full Load Amps 30 @220 Volt,
Shipping Weight: 1,620 Lbs.
Year 2022
Serial #22-05-35-015

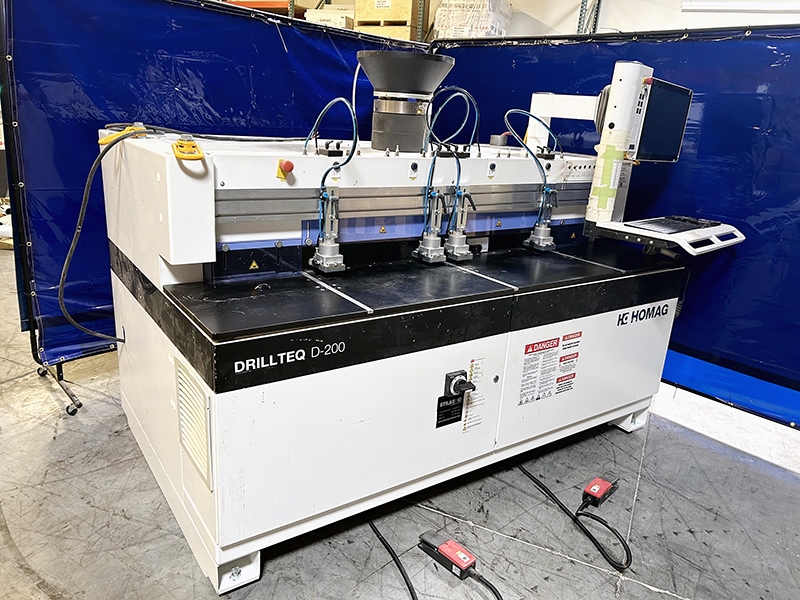

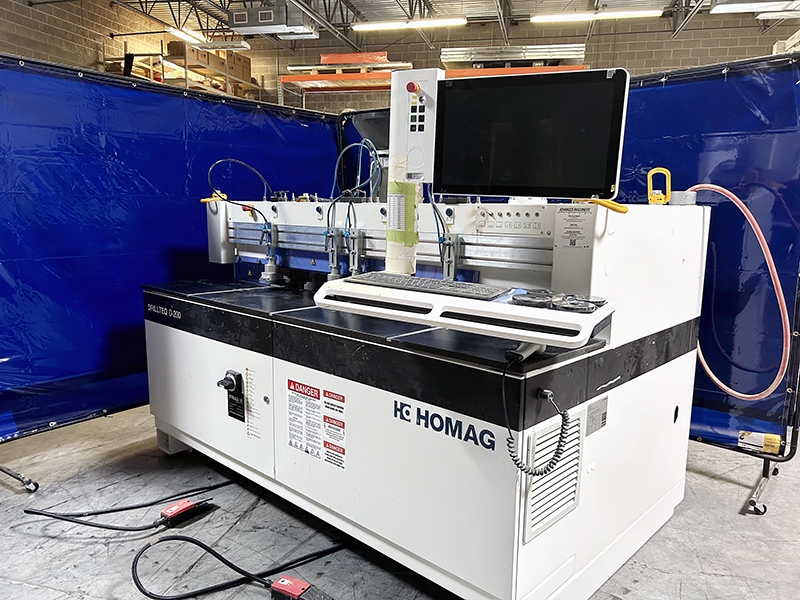

Horizontal Drilling Aggregate with (3) Individually Selectable Spindles, 7,500 RPM
(1) Doweling Tool: 32mm for the Drilling Spindle
(1) Glue Injector with Adjustable Glue Amount & Cleaning Device
Standard Dowel Dimensions: 8 x 30mm / 8 x 35mm
Vibrating Hopper for Automatic Dowel Feeding
480 Volts, 3 Phase, 60HZ, 16 Amp
Control Voltage 24 Volts
Serial #0-253-80-4296
