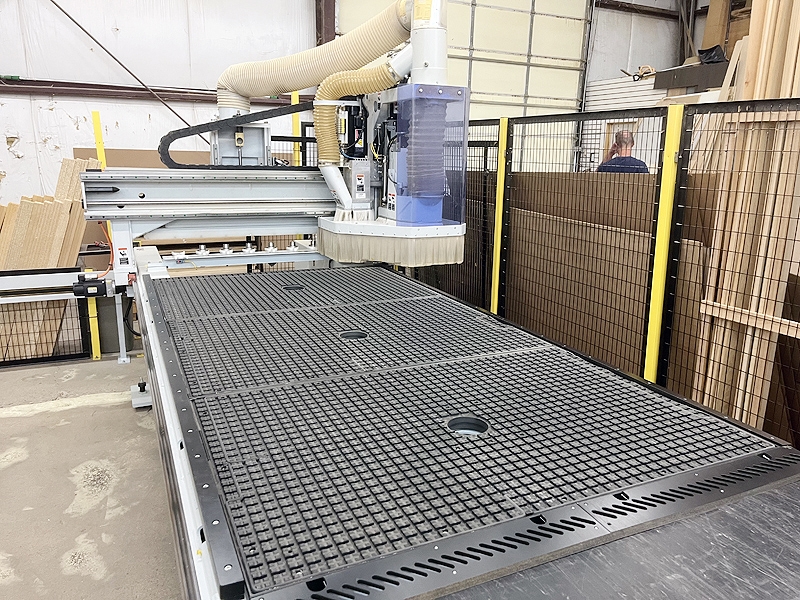

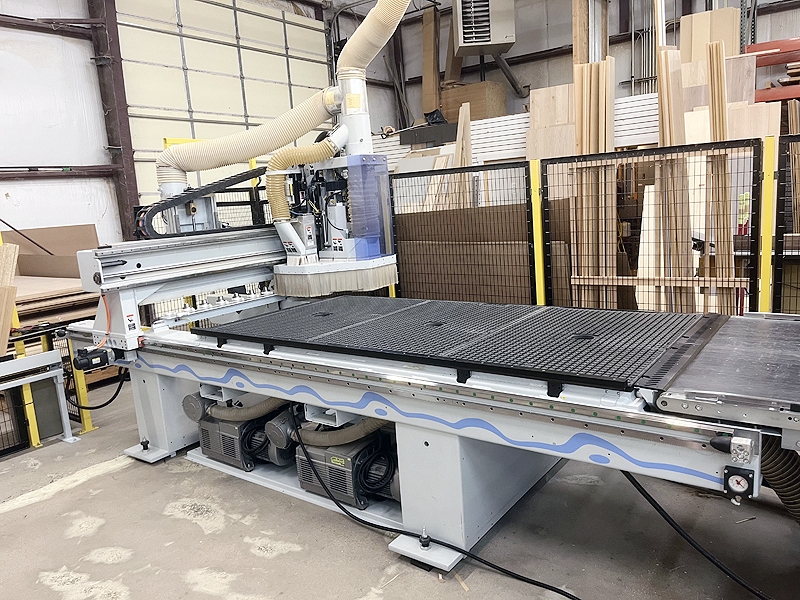

4' x 8' Nominal Capacity Vacuum Table
Matrix Table 2,520mm (99") x 1,250mm (49") x 100mm (3.94")
Working Length 2,438mm (99") x Working Width 1,219mm (49")

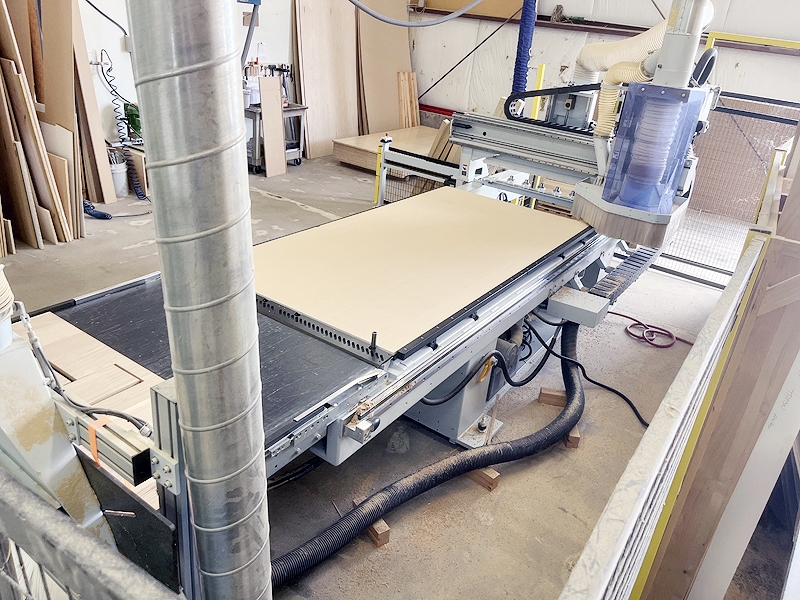

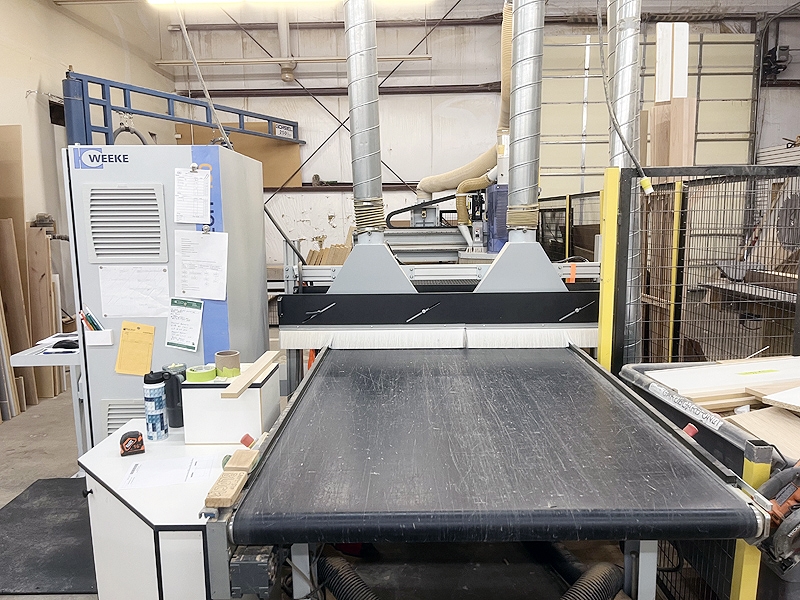

Concept #1 Material Handling Package: Push Off Device & Outfeed Conveyor

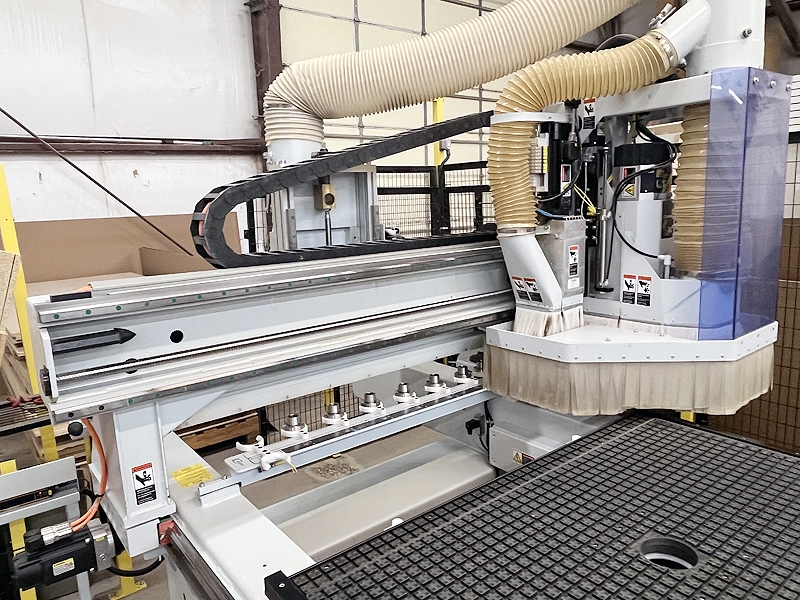

9 KW (12 HP) Router, 1,250-24,000 RPM
Uses HSK-63 Tooling

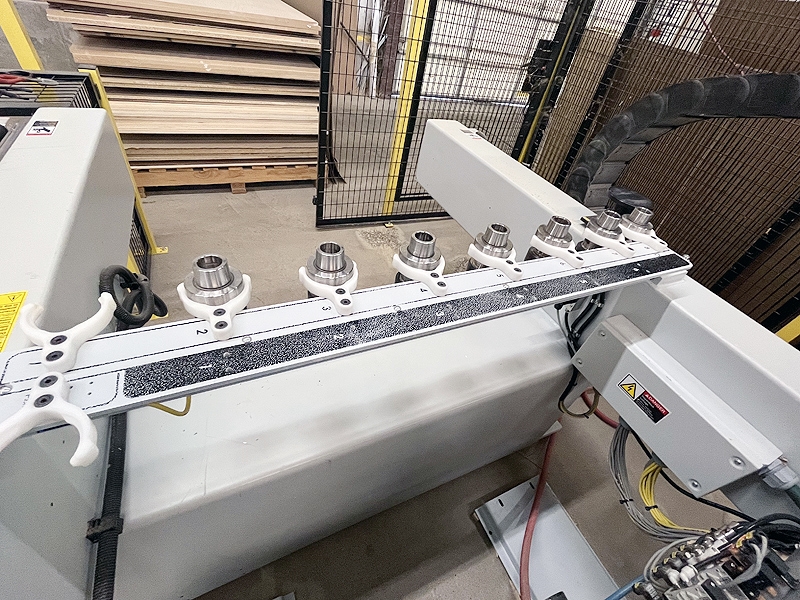

(8) Tool Bar Style Tool Changer

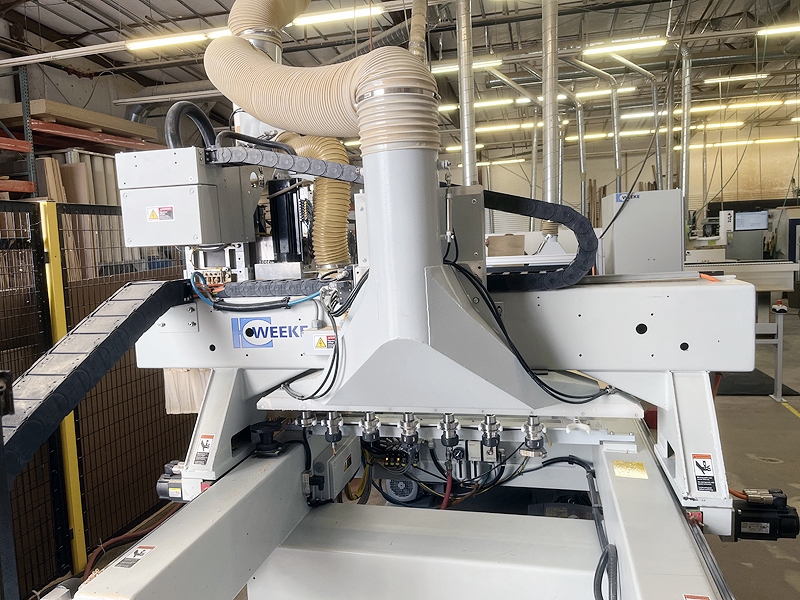

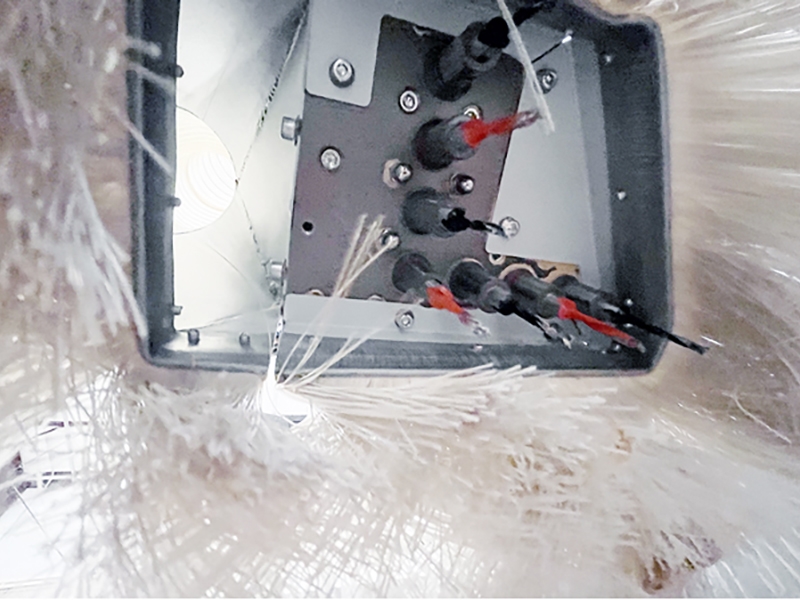

(7) Spindle Vertical Drill Block
Multi-Zone Processing
(3) Pneumatic Reference Pins for Board Placement
Power Control PC85T
(3) Vacuum Pumps
480 Volts, 3 Phase, 60 HZ, 50 Amps @ 480 Volts
Control Voltage 25 Volts
Total Connected Load 27.5 KW
Machine Approximate Weight 6,174 Lbs.
Serial #0-250-80-3228
