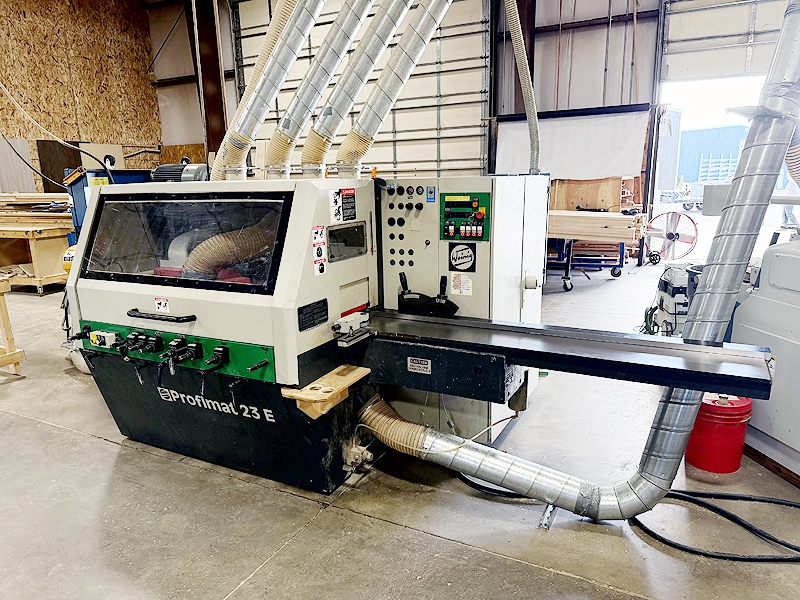

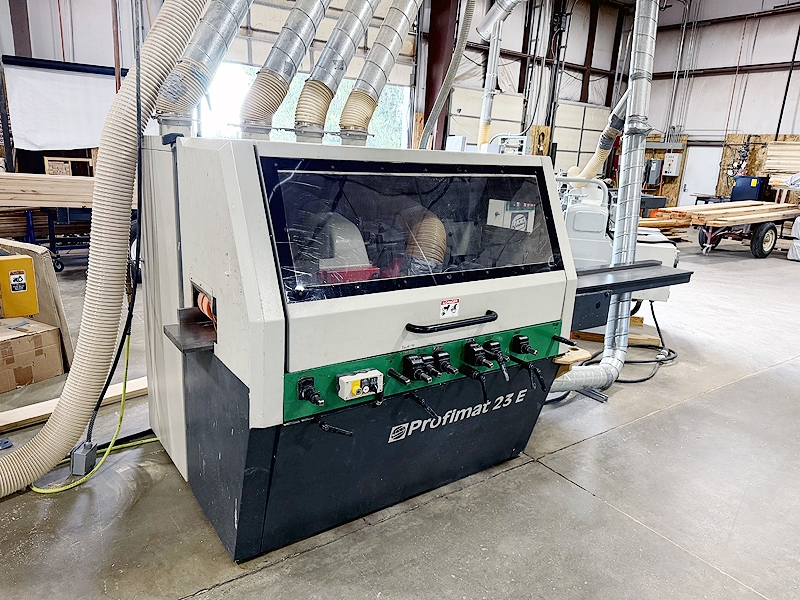

Weinig P23E (5) Head Moulder

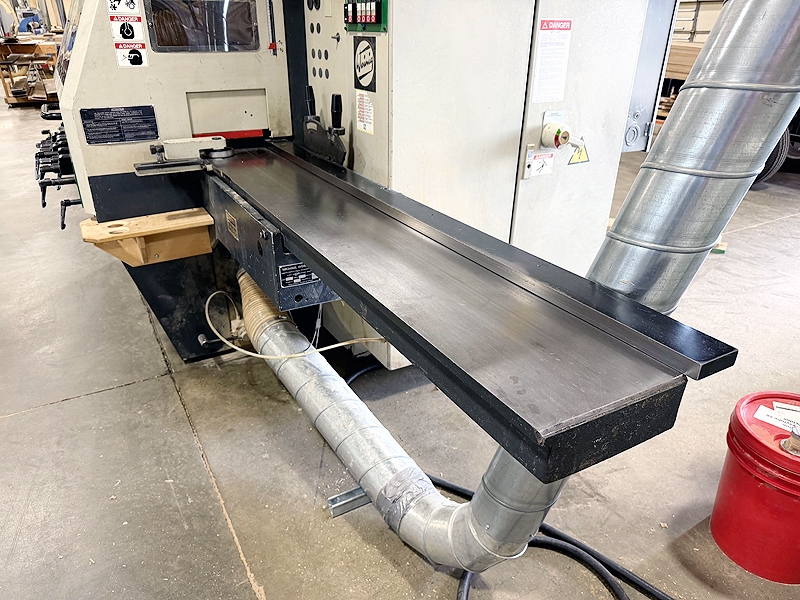

Long Infeed Straightening Bed
Waxilit Bed Pump Lubrication
9 1/16" (230mm) X 4 3/4" (120mm) Capacity
1st Head: Bottom 7.5 KW
2nd Head: Right, 3rd Head: Left (W/ Shared 11 KW)
4th Head: Top 11 KW
5th Head: Bottom 7.5 KW
16 to 78 fpm, Cardan Drive, 3 KW Feed
All Spindles 1 1/2" Diameter, 6,000 RPM
Manual Adjustments for All Heads: Please note that some manual digitals will need to be repaired or replaced and (3) are currently missing as per photos.
Raise & Lower .25 KW
Sound & Safety Enclosure
Connected Load 41 KW
Full Load Amps 146 Amps
Control Voltage 115 Volts
230 Volts, 60 HZ, 3 Phase
New in 1997
Approximate Footprint: 144"L X 84"W X 84"H
Serial #226-60630
